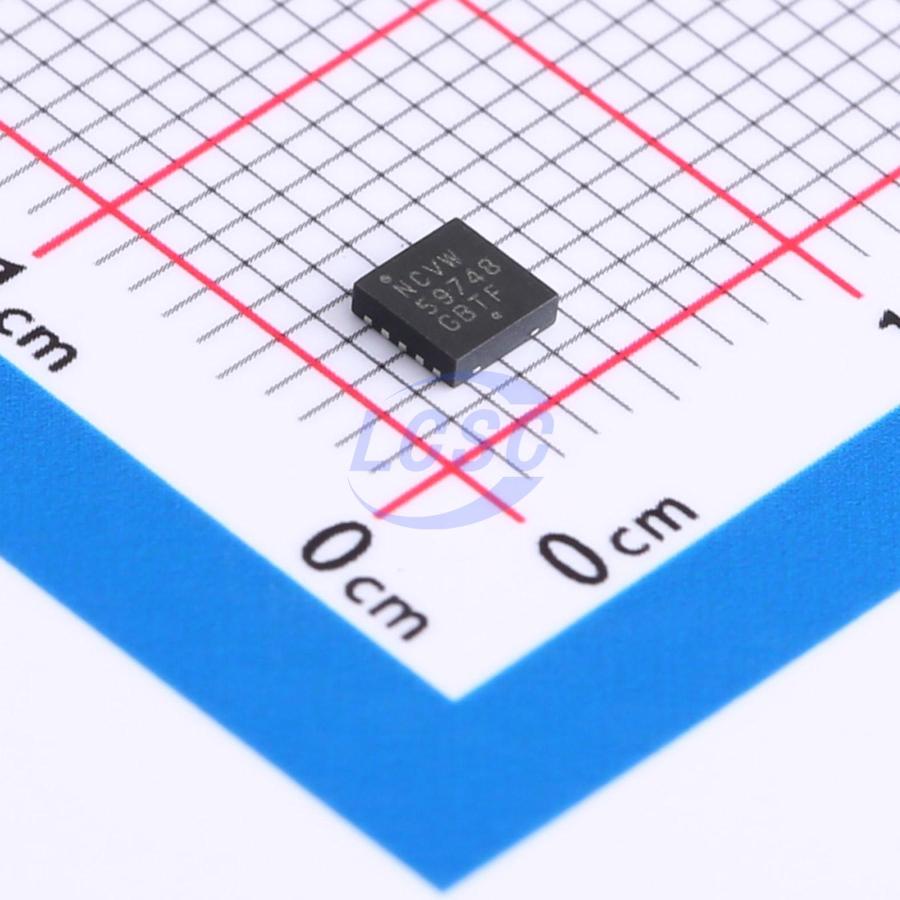

NCV59748MWADJTBG

The NCV59748 is dual−rail very low dropout voltage regulator, capable of providing an output current in excess of 1.5 A with a dropout voltage of 60 mV typ. at full load current. The devices are stable with ceramic and any other type of output capacitor ≥2.2 μF. This series contains adjustable output voltage version with output voltage down to 0.8 V and 0.75 V Fixed Voltage version. Internal protection features consist of built-in thermal shutdown and output current limiting protection. User-programmable Soft-Start and Power-Good pins are available. The NCV59748 is offered in DFN10 3×3 package, wettable flank options available for Enhanced Optical Inspection.

Applications

• Automotive, Consumer and Industrial Equipment Point of Load Regulation
• FPGA, DSP and Logic Power Supplies
• Switching Power Supply Post Regulation

Key features

• Output Current in Excess of 1.5 A
• VIN Range: 0.8 V to 5.5 V
• VBIAS Range: 2.7 V to 5.5 V
• Output Voltage Range: 0.8 V to 3.6 V (Adj), 0.75 V (FixVolt)
• Dropout Voltage: 60 mV at 1.5 A
• Programmable Soft-Start
• Open Drain Power Good Output
• Fast Transient Response
• Stable with Any Type of Output Capacitor ≥2.2 μF
• Current Limit and Thermal Shutdown Protection
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
