STDatasheet (PDF)

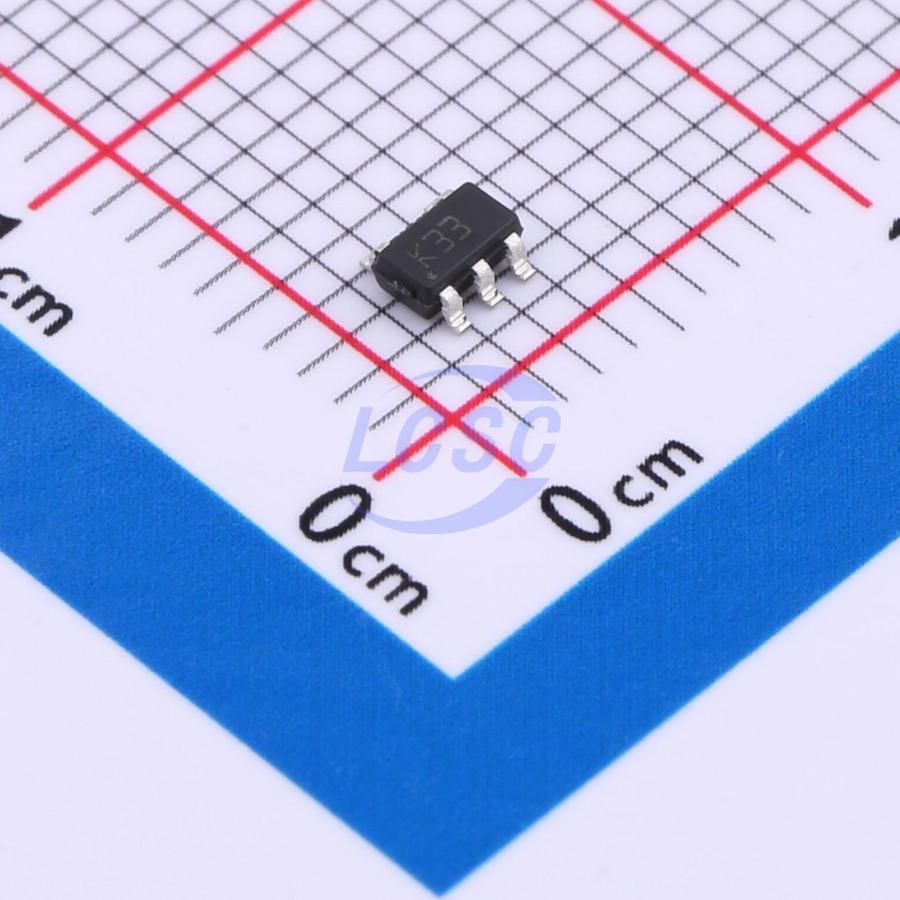

LDK130M33R
3.3V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS3 CompliantActive
300 mA Low Dropout Regulator with Ultra-Low Noise and Low Quiescent Current
- Manufacturer
- ST
- Manufacturer part #
- LDK130M33R
- Store part #
- C2969807
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
77,940 in stock
#C2969807
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.82 | ₹99.10 |
| 50+ | ₹15.77 | ₹788.50 |
| 150+ | ₹13.75 | ₹2,062.50 |
| 500+ | ₹12.22 | ₹6,110.00 |
| 3,000+ | ₹9.92 | ₹29,760.00 |
| 6,000+ | ₹9.31 | ₹55,860.00 |
5 × ₹19.82
₹99.10
excl. GST
₹116.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LDK130M33R
₹99.10 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Noise bypass terminal;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The LDK130 low drop voltage regulator provides 300 mA of maximum current from an input supply voltage in the range of 1.9 V to 5.5 V, with a typical dropout voltage of 100 mV. It is stabilized with a ceramic capacitor on the output. The device also includes short-circuit constant current limiting and thermal protection.
Applications
- Mobile phones
- Portable consumer and industrial devices
- Cordless phones and similar battery-powered systems
- Automotive P.O.L. A.D.A.S.
Key features
- AEC-Q100 qualified (automotive grade 1, SOT23-5L package)
- Input voltage from 1.9 to 5.5 V
- Very low-dropout voltage (100 mV typ. at 100 mA load)
- Low quiescent current (typ. 30 μA, 1 μA in OFF mode)
- Very low noise
- Output voltage tolerance: ±2.0% at 25℃
- 300 mA guaranteed output current
- Wide range of fixed output voltages available on request: from 0.8 V to 3.5 V with 100 mV step
- Adjustable version: from 0.8 V to VIN - Vdrop
- Logic-controlled electronic shutdown
- Compatible with ceramic capacitor COUT = 1 μF
- Internal current and thermal limit
- Available in SOT23-5L, SOT323-5L and DFN6 1.2x1.3 packages
- Temperature range: -40℃ to 125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP6217C33M5G#C3021087TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 8,990 | ₹20.00 · 8,990 in stock | View |
 | RT9013-33GB#C47773RICHTEK · SOT-23-5 | RICHTEK | SOT-23-5 | 1,04,410 | ₹19.08 · 1,04,410 in stock | View |
 | TPL740F33-5TR#C29023603PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 20,085 | ₹14.70 · 20,085 in stock | View |
 | TLV78533PDBVR#C49256224TI · SOT-23-5 | TI | SOT-23-5 | 5,250 | ₹8.77 · 5,250 in stock | View |
 | XC6220B331MR#C3040644TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 7,555 | ₹22.05 · 7,555 in stock | View |
