STDatasheet (PDF)

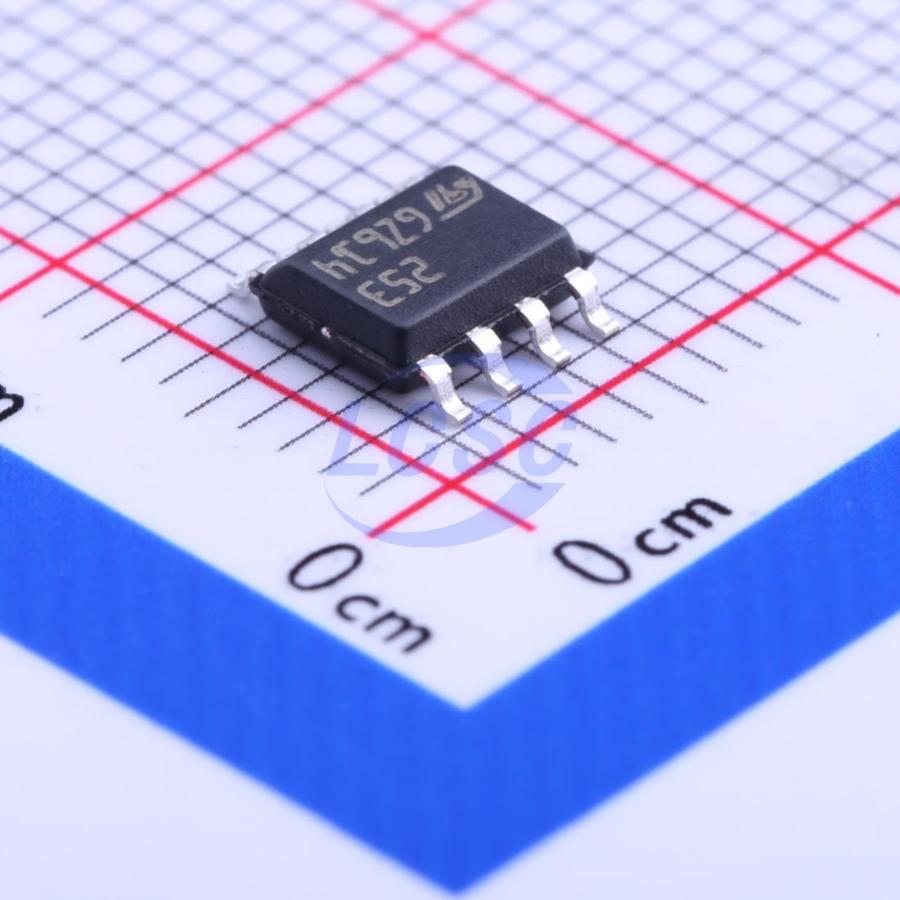

LF253DT
60mA 2 3mV 16V/us 86dB 20pA 1.4mA 4MHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Wide bandwidth dual JFET operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- LF253DT
- Store part #
- C51672
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,725 in stock
#C51672
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.71 | ₹60.71 |
| 10+ | ₹48.36 | ₹483.60 |
| 30+ | ₹43.16 | ₹1,294.80 |
| 100+ | ₹36.65 | ₹3,665.00 |
| 500+ | ₹33.39 | ₹16,695.00 |
| 1,000+ | ₹31.66 | ₹31,660.00 |
1 × ₹60.71
₹60.71
excl. GST
₹71.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LF253DT
₹60.71 for 1 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 16V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 4MHz
- Features
- Short-Circuit Protection;Built-in compensation;Latch-up suppression
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Single Supply
- 6V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
These circuits are high speed JFET input dual operational amplifiers incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
Applications
- Quadruple oscillator
Key features
- Low power consumption
- Wide common-mode (up to V_CC + I) and differential voltage range
- Low input bias and offset current
- Output short-circuit protection
- High input impedance JFET input stage
- Internal frequency compensation
- Latch up free operation
- High slew rate 16 V/µs (typical)
