TIDatasheet (PDF)

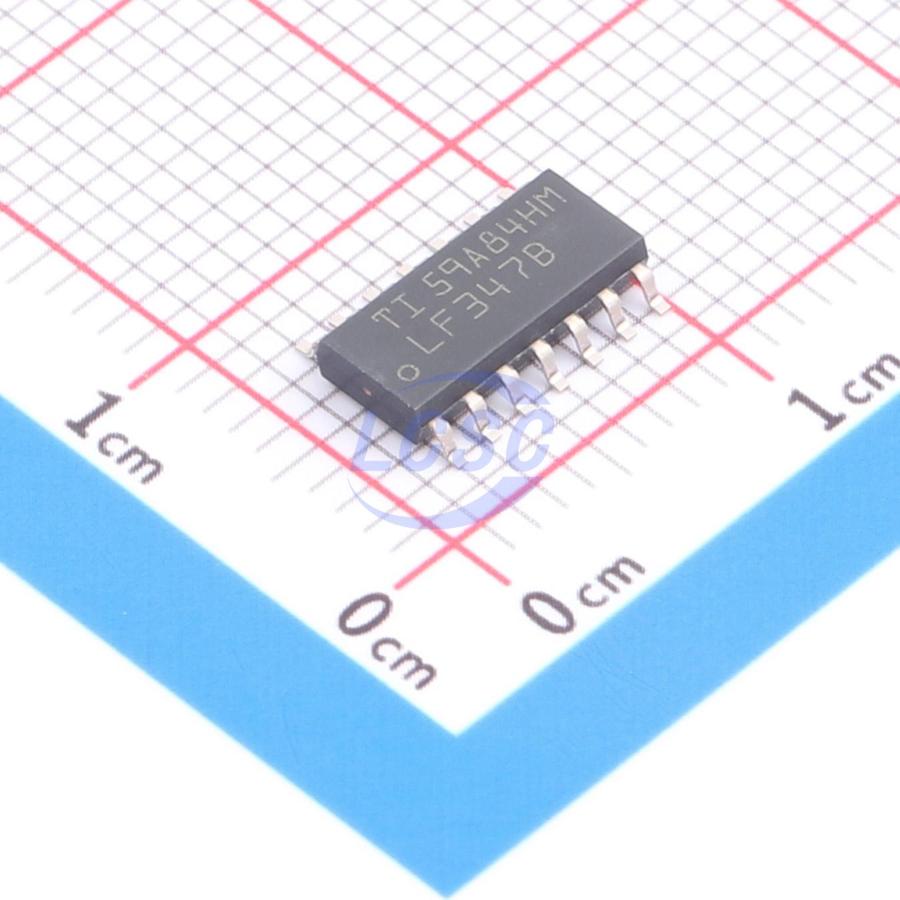

LF347BDR
Four channels 5mV 13V/us 100dB 50pA 8mA 3MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
JFET-Input Quad Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- LF347BDR
- Store part #
- C2057851
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,146 in stock
#C2057851
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.20 | ₹89.20 |
| 10+ | ₹77.53 | ₹775.30 |
| 30+ | ₹69.33 | ₹2,079.90 |
| 100+ | ₹62.63 | ₹6,263.00 |
| 500+ | ₹60.47 | ₹30,235.00 |
| 1,000+ | ₹59.18 | ₹59,180.00 |
1 × ₹89.20
₹89.20
excl. GST
₹105.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LF347BDR
₹89.20 for 1 + GST
Specifications
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 25pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 18uV/℃
- Quiescent Current
- 8mA
- Gain Bandwidth Product
- 3MHz
- Features
- Short-Circuit Protection
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -18V~-3.5V;3.5V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
The LF347 and LF347B devices are low-cost, highspeed, JFET-input operational amplifiers. They require low supply current yet maintain a large gainbandwidth product and a fast slew rate. In addition, their matched high-voltage JFET inputs provide very low input bias and offset current. The LF347 and LF347B can be used in applications such as high-speed integrators, digital-to-analog converters, sample-and-hold circuits, and many other circuits. The LF347 and LF347B devices are characterized for operation from 0°C to 70°C.
Applications
- Motor Integrated Systems
- UPS Drives and Control Solutions: AC Inverters and VF Drives
- Renewables: Solar Inverters
- Pro Audio Mixers
- Oscilloscopes
- High-speed integrators
- Digital-to-analog converters
- Sample-and-hold circuits
Key features
- Low Input Bias Current: 50 pA Typical
- Low Input Noise Current: 0.01 pA/√Hz Typical
- Low Total Harmonic Distortion
- Low Supply Current: 8 mA Typical
- Gain Bandwidth: 3 MHz Typical
- High Slew Rate: 13 V/ms Typical
