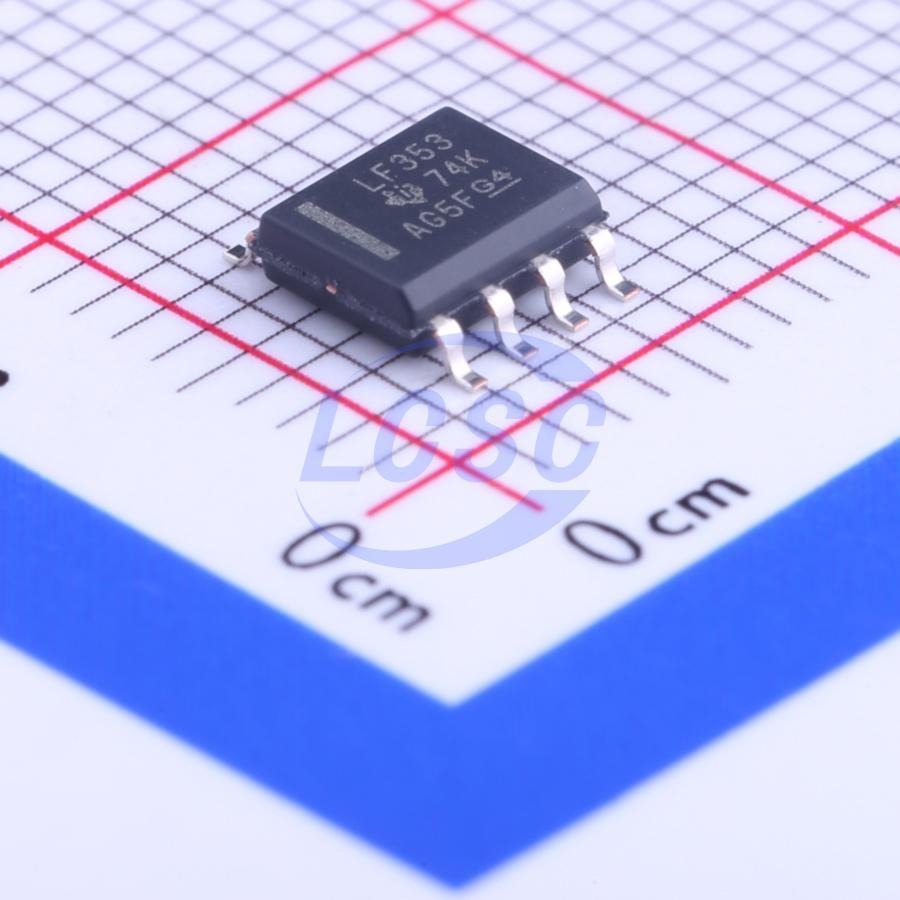

LF353DR
2 5mV 13V/us 101dB 50pA 3MHz 3.6mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Wide-Bandwidth JFET-Input Dual Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- LF353DR
- Store part #
- C7918
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
76,000 in stock
#C7918
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.94 | ₹114.70 |
| 50+ | ₹17.70 | ₹885.00 |
| 150+ | ₹15.45 | ₹2,317.50 |
| 500+ | ₹12.65 | ₹6,325.00 |
| 2,500+ | ₹10.62 | ₹26,550.00 |
| 5,000+ | ₹9.87 | ₹49,350.00 |
5 × ₹22.94
₹114.70
excl. GST
₹135.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LF353DR
₹114.70 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 25pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 101dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Gain Bandwidth Product
- 3MHz
- Quiescent Current
- 3.6mA
- Features
- Short-Circuit Protection
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.173 g
Overview
This LF353 device is a low-cost, high-speed, JFETinput operational amplifier with very low input offset voltage. It requires low supply current yet maintains a large gain-bandwidth product and a fast slew rate. In addition, the matched high-voltage JFET input provides very low input bias and offset currents. The LF353 can be used in applications such as highspeed integrators, digital-to-analog converters, sample-and-hold circuits, and many other circuits. The LF353 is characterized for operation from 0°C to 70°C.
Applications
- Motor Integrated Systems: UPS Drives and Control Solutions: AC Inverter and VF Drives
- Renewables: Solar Inverters
- Pro Audio Mixers
- Oscilloscopes
Key features
- Low Input Bias Current 50 pA Typical
- Low Input Noise Current 0.01 pA/√Hz Typical
- Low Supply Current 3.6 mA Typical
- High Input Impedance 10^12 Ω Typical
- Internally-Trimmed Offset Voltage
- Gain Bandwidth 3 MHz Typical
- High Slew Rate 13 V/μs Typical
