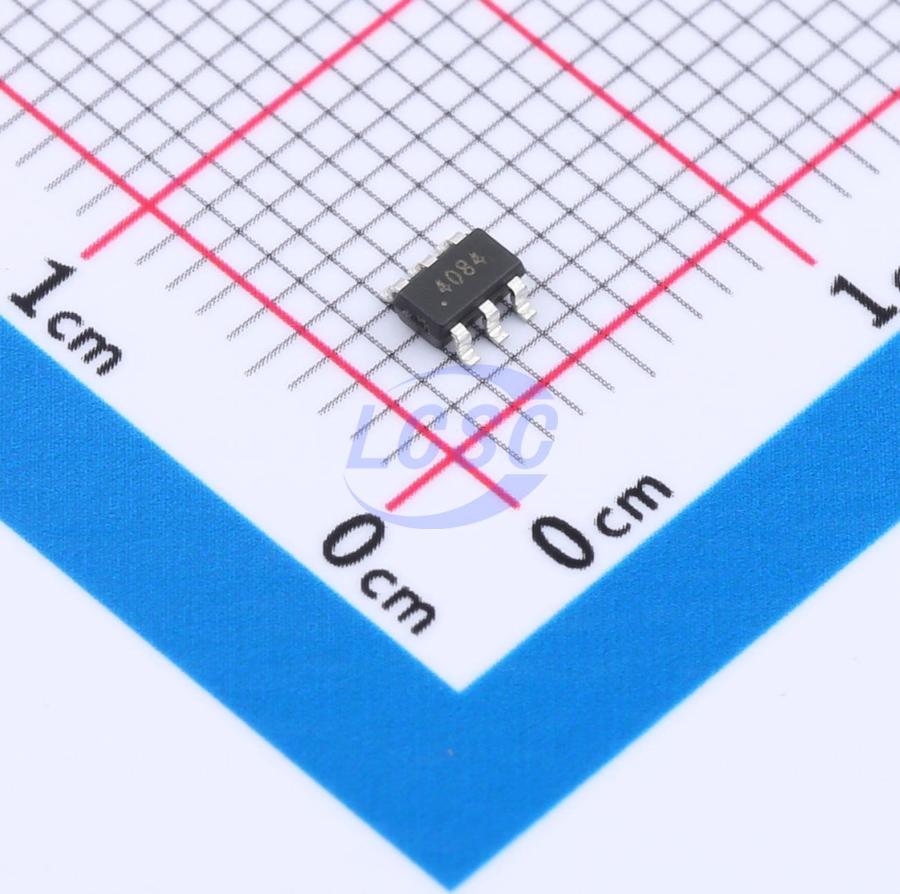

LGS4084HB6
Battery Charging IC Lithium-ion/Polymer SOT-23-6
Input high-voltage linear lithium battery charging management chip
- Manufacturer
- Legend-Si
- Manufacturer part #
- LGS4084HB6
- Store part #
- C5299901
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,240 in stock
#C5299901
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.87 | ₹74.35 |
| 50+ | ₹13.22 | ₹661.00 |
| 150+ | ₹12.38 | ₹1,857.00 |
| 500+ | ₹11.76 | ₹5,880.00 |
| 3,000+ | ₹10.23 | ₹30,690.00 |
| 6,000+ | ₹9.98 | ₹59,880.00 |
5 × ₹14.87
₹74.35
excl. GST
₹87.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LGS4084HB6
₹74.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 150uA
- 0V Battery Charge
- Support
- Operating Voltage
- 4V~6V
- Type of Battery
- Lithium Battery
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout;Reverse current blocking;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
LGS4084 is a linear lithium battery charge management IC integrating battery charging and charge status indication, providing a complete power solution for single-cell lithium batteries. The IC supports four charging stages: short-circuit current, trickle current, constant current, and constant voltage. Short-circuit charging enables charging of 0V batteries; trickle charging pre-charges deeply discharged batteries; constant current charging rapidly charges the battery; constant voltage charging ensures charging safety. The default charge termination voltage is 4.2V, and the charge current is configurable via an external resistor, with a maximum charge current of 500mA. When the charge current drops to 1/10 of the set value, the IC automatically terminates charging and continuously monitors the battery voltage, automatically reinitiating charging when the voltage falls below a specified threshold. When the input power is removed, the IC automatically enters low-power mode, with a battery leakage current below 1uA.
Applications
- Mobile multimedia devices
- Portable devices powered by Li-ion battery with USB input
Key features
- Built-in linear charger with high input voltage and adjustable charge current
- Input voltage range: 4V~24V (surge voltage up to 28V)
- Maximum constant current charging up to 500mA; supports real-time charge current configuration via external resistor
- Compatible with 5V USB power and AC adapters; hot-plug protection
- Supports 4.2V/4.35V Li-ion battery types
- Intelligent charge current adjustment based on battery temperature and input voltage
- Battery reverse-current blocking; battery-side leakage current <1uA
- Comprehensive charge status indication and fault indication (e.g., battery not connected)
- Protection features: UVLO, over-temperature protection, OVP, thermal regulation of charge current, soft-start for constant current charging
- Junction temperature range: -40℃ to +85℃
- ±2000V HBM ESD protection on all pins
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LGS4084HB6-4.35#C48686300Legend-Si · SOT-23-6 | Legend-Si | SOT-23-6 | 1,325 | ₹18.26 · 1,325 in stock | View |
