Legend-SiDatasheet (PDF)

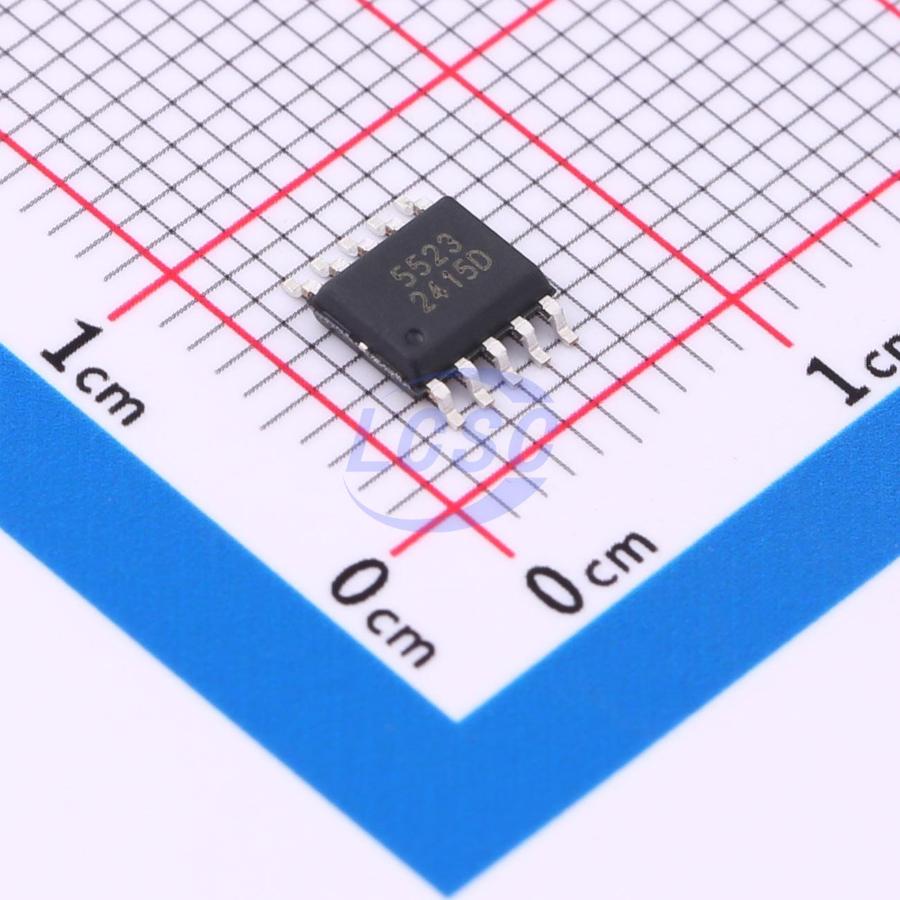

LGS5523
Battery Charging IC Lithium-ion/Polymer ESSOP-10
ESSOP-10ROHS CompliantActive
Synchronous step-up 3-cell Li-ion battery charging manager
- Manufacturer
- Legend-Si
- Manufacturer part #
- LGS5523
- Store part #
- C22470483
- Package / case
- ESSOP-10
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,975 in stock
#C22470483
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.97 | ₹54.97 |
| 10+ | ₹48.88 | ₹488.80 |
| 30+ | ₹46.07 | ₹1,382.10 |
| 100+ | ₹42.81 | ₹4,281.00 |
| 500+ | ₹37.16 | ₹18,580.00 |
| 1,000+ | ₹36.29 | ₹36,290.00 |
1 × ₹54.97
₹54.97
excl. GST
₹64.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LGS5523
₹54.97 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 26uA
- 0V Battery Charge
- Support
- Operating Voltage
- 3V~9.3V
- Type of Battery
- Lithium Battery
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overcurrent Protection;Overvoltage protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.179 g
