LGS5600

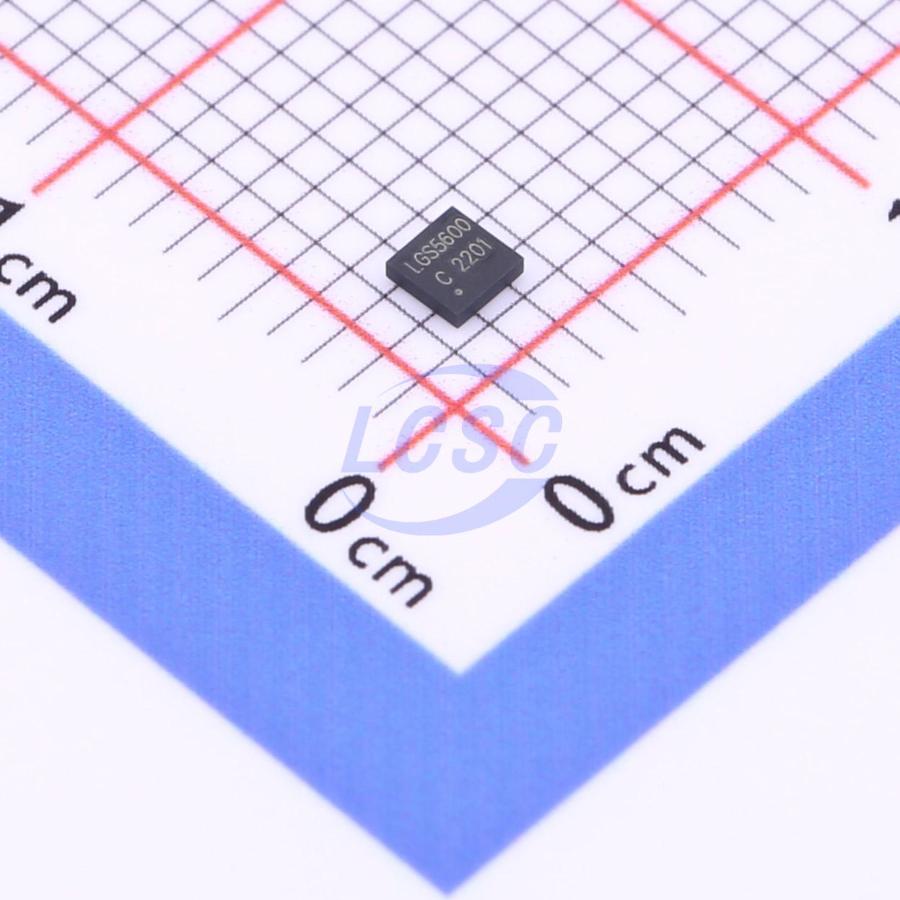

Battery Charging IC Lithium-ion/Polymer DFN-8
Ultra-low power consumption USB dry battery charging and discharging integrated power management chip
- Manufacturer
- Legend-Si
- Manufacturer part #
- LGS5600
- Store part #
- C5123974
- Package / case
- DFN-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,255 in stock
#C5123974
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.93 | ₹174.65 |
| 50+ | ₹28.22 | ₹1,411.00 |
| 150+ | ₹25.35 | ₹3,802.50 |
| 500+ | ₹21.76 | ₹10,880.00 |
| 3,000+ | ₹18.19 | ₹54,570.00 |
| 6,000+ | ₹17.23 | ₹1,03,380.00 |
5 × ₹34.93
₹174.65
excl. GST
₹206.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LGS5600
₹174.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 2uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Short-Circuit Protection;Overcurrent Protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
LGS5600 is a dedicated lithium battery charge/discharge management IC integrating a buck converter, lithium battery charge management, and battery charge status indication, providing a complete power solution for USB-charged dry-cell battery replacements. Charge current and charge voltage are adjustable, supporting multiple lithium battery specifications with a maximum charge current of 1A. Charge current is automatically adjusted based on lithium battery temperature for enhanced safety and reliability. Discharge output is a fixed 1.5V or 2V (default version: 1.5V), with peak efficiency up to 93%. Standby current as low as 3µA, supporting long-term lithium battery standby. Integrated charging, charge-complete, and battery-absent indications. Charge port and output port short-circuit connection allowed for flexible layout across different applications.
Applications
- USB rechargeable dry cell battery
- Drop-in replacement for standard 1.5V AA/AAA batteries
- Portable devices with lithium battery power and USB output
Key features
- 5600 integrated multi-level linear charger with adjustable voltage and current
- 16V input voltage rating
- Charge current and charge voltage adjustment via external resistors
- Supports 4.2V/4.3V/4.35V/4.4V Li-ion battery charging
- Configurable charge current: 400mA/600mA/800mA/1000mA
- JEITA compliant Li-ion battery charging — intelligently adjusts charge voltage and current based on battery temperature and input voltage
- Comprehensive charge indication, compatible with single/dual LED configurations, automatic external detection
- 5600 integrated 1.5V/1A 1.2MHz output synchronous step-down converter
- Quiescent current as low as 2uA
- 1A synchronous buck discharge
- Buck efficiency up to 90%
- Customizable version with 2V output available
- Comprehensive protection: over-temperature, short circuit, over-current, over-voltage
