HTCDatasheet (PDF)

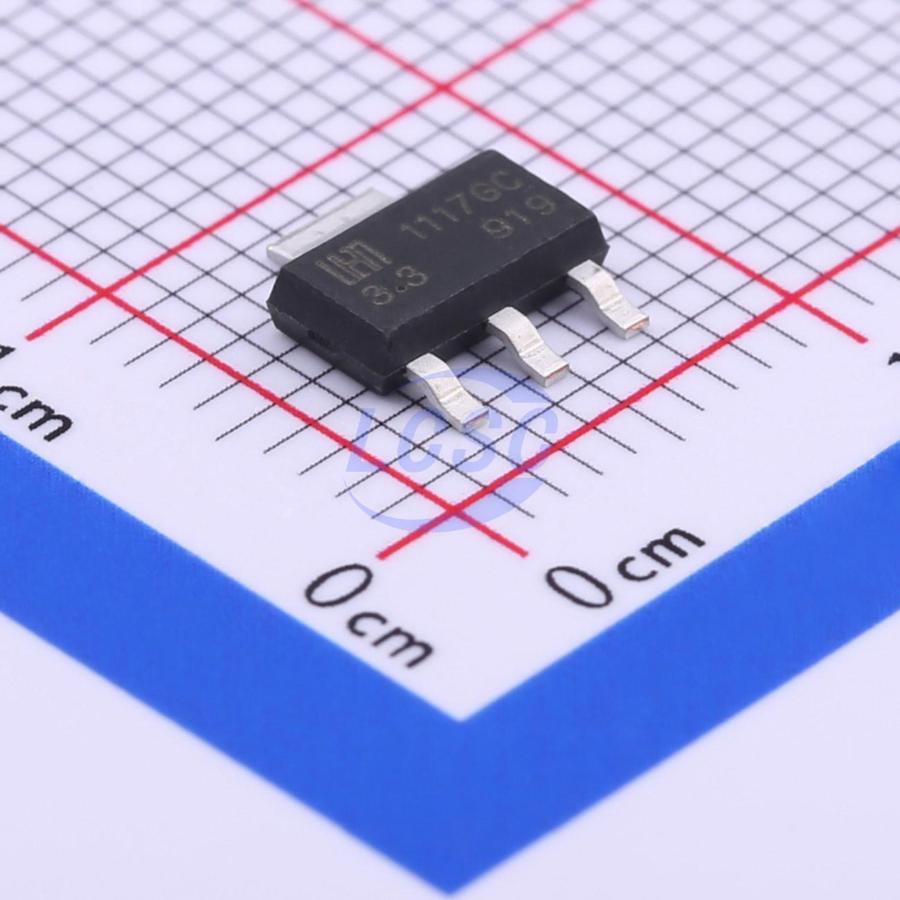

LM1117GS-3.3
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3L
SOT-223-3LROHS CompliantActive
1A Low Dropout (LDO) Voltage Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM1117GS-3.3
- Store part #
- C411821
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,930 in stock
#C411821
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.20 | ₹136.00 |
| 50+ | ₹20.29 | ₹1,014.50 |
| 150+ | ₹17.34 | ₹2,601.00 |
| 500+ | ₹13.65 | ₹6,825.00 |
| 2,500+ | ₹12.01 | ₹30,025.00 |
| 5,000+ | ₹11.02 | ₹55,100.00 |
5 × ₹27.20
₹136.00
excl. GST
₹160.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117GS-3.3
₹136.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.245 g
Overview
The LM1117 is a low power positive-voltage regulator designed to meet 1A output current. This device is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers. The LM1117 features very low quiescent current and very low dropout voltage of 1.2V at a full load and lower as output current decreases. LM1117 is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V output voltages. The LM1117 is offered in a 3-pin surface mount package SOT-223, TO-252 & SOT-89. The output capacitor of 10μF or larger is needed for output stability of LM1117 as required by most of the other regulator circuits.
Applications
- Active SCSI Terminators
- Portable/ Plan Top/ Notebook Computers High Efficiency Linear Regulators
- SMPS Post Regulators
- Mother B/D Clock Supplies
- Disk Drives Battery Chargers
Key features
- Output Current up to 1A
- Low Dropout Voltage (1.2V at 1A Output current)
- Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
- Line Regulation typically at 0.1% typ.
- Load Regulation typically at 0.2% typ.
- Internal Current and Terminal Protection
- Maximum Input Voltage 20V
- Surface Mount Package SOT-223, TO-252, SOT-89
- 100% Thermal Limit Burn-In
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117S-3.3#C126027HTC · SOT-223-3 | HTC | SOT-223-3 | 64,526 | ₹20.33 · 64,526 in stock | View |
 | LD1117S33CTR#C35879ST · SOT-223-4 | ST | SOT-223-4 | 48,220 | ₹24.00 · 48,220 in stock | View |
 | 1117-3.3#C5125088IDCHIP · SOT-223 | IDCHIP | SOT-223 | 7,810 | ₹8.86 · 7,810 in stock | View |
 | MC33269MP-3.3/TR#C46614067HGSEMI · SOT-223 | HGSEMI | SOT-223 | 2,305 | ₹17.24 · 2,305 in stock | View |
 | AMS1117-3.3#C18164485GR · SOT-223 | GR | SOT-223 | 49,520 | ₹5.27 · 49,520 in stock | View |
