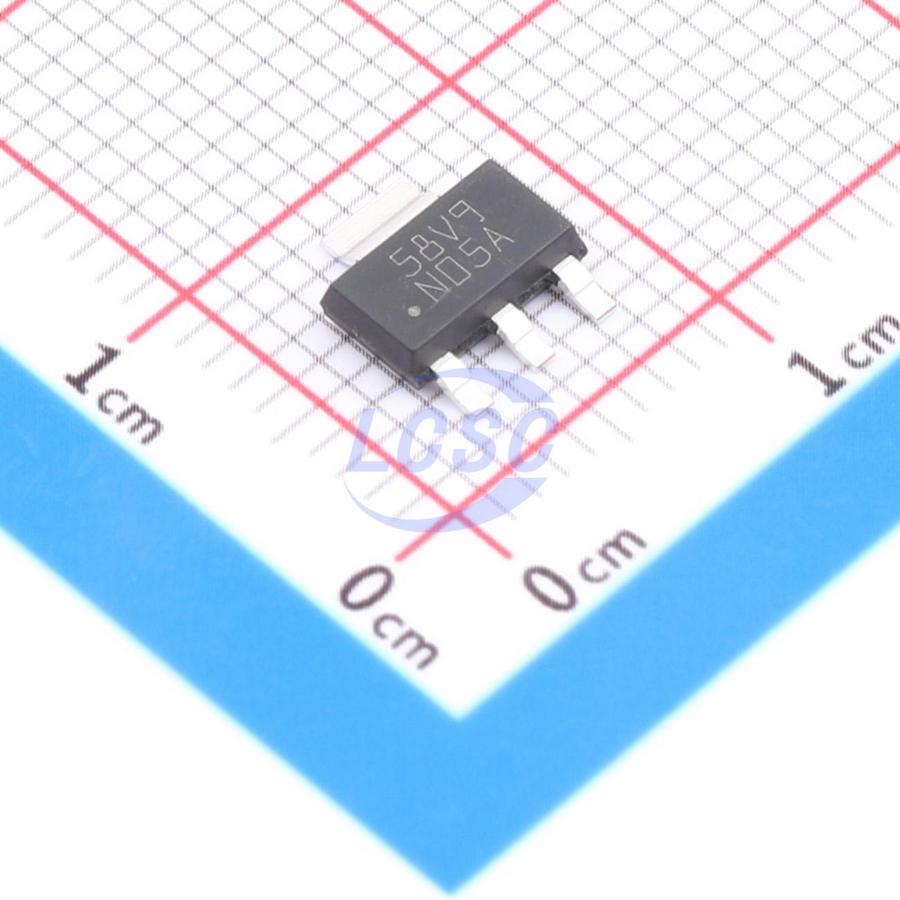

LM1117MP-3.3/NOPB
Linear Voltage Regulator IC Positive Fixed 1 Output 800mA SOT-223-4
SOT-223-4ROHS3 CompliantActive
800mA 15V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1117MP-3.3/NOPB
- Store part #
- C2860766
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,695 in stock
#C2860766
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.55 | ₹212.75 |
| 50+ | ₹33.23 | ₹1,661.50 |
| 150+ | ₹29.24 | ₹4,386.00 |
| 1,000+ | ₹24.26 | ₹24,260.00 |
| 2,000+ | ₹22.04 | ₹44,080.00 |
| 5,000+ | ₹20.70 | ₹1,03,500.00 |
5 × ₹42.55
₹212.75
excl. GST
₹251.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM1117MP-3.3/NOPB
₹212.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 9.572 g
Overview
LM1117 is a low dropout regulator with a 1.2V dropout at 800mA load current. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, the device offers five fixed voltage options: 1.8V, 2.5V, 3.3V, and 5V. The LM1117 features current limiting and thermal shutdown. The device incorporates a zener-trimmed bandgap reference to ensure output voltage accuracy within ±1%.
Applications
- AC drive power stage modules
- Commercial networking and server PSU
- Industrial AC/DC power supplies
- Ultrasonic scanners
- Servo drive control modules
- Adjustable output voltage regulators
Key features
- Available in 1.8V, 2.5V, 3.3V, 5V, and adjustable voltage versions
- Space-saving SOT-223 and WSON packages
- Current limiting and thermal protection
- Output current: 800mA
- Line regulation: 0.2% (maximum)
- Load regulation: 0.4% (maximum)
- Temperature range:
- LM1117: 0°C to 125°C
- LM1117I: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117IMPX-3.3/NOPB#C23984TI · SOT-223 | TI | SOT-223 | 73,155 | ₹36.99 · 73,155 in stock | View |
 | LM1117MP-3.3#C3750685TI · SOT-223 | TI | SOT-223 | 2,145 | ₹60.73 · 2,145 in stock | View |
 | LM1117MPX-3.3/NOPB#C9662TI · SOT-223-4 | TI | SOT-223-4 | 67,110 | ₹33.63 · 67,110 in stock | View |
 | AMS1117-3.3#C18164485GR · SOT-223 | GR | SOT-223 | 48,060 | ₹5.27 · 48,060 in stock | View |
 | LM1117IMP-3.3/NOPB#C129334TI · SOT-223 | TI | SOT-223 | 23,655 | ₹39.56 · 23,655 in stock | View |
