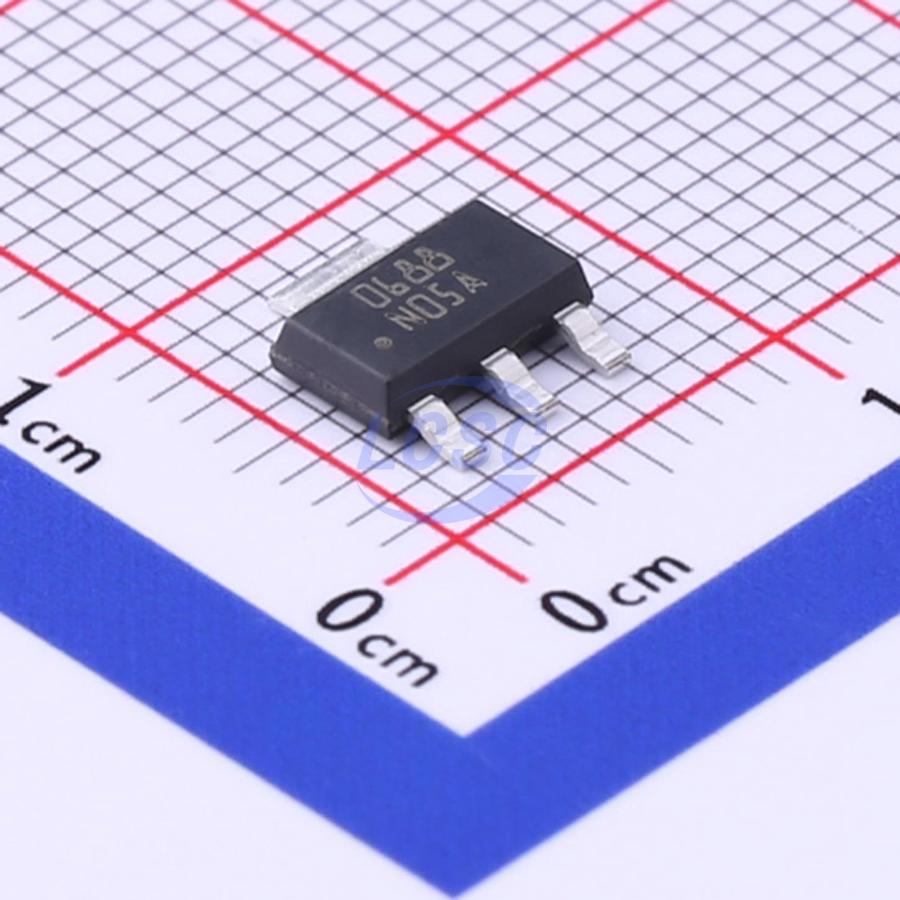

LM1117MPX-3.3/NOPB
3.3V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
PopularSOT-223-4ROHS3 CompliantActive
800mA 15V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1117MPX-3.3/NOPB
- Store part #
- C9662
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
67,110 in stock
#C9662
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.63 | ₹168.15 |
| 50+ | ₹25.96 | ₹1,298.00 |
| 150+ | ₹22.20 | ₹3,330.00 |
| 500+ | ₹18.51 | ₹9,255.00 |
| 2,000+ | ₹17.60 | ₹35,200.00 |
| 4,000+ | ₹17.04 | ₹68,160.00 |
5 × ₹33.63
₹168.15
excl. GST
₹198.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM1117MPX-3.3/NOPB
₹168.15 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25 to 13.8 V with only two external resistors. In addition, it is available in five fixed voltages, 1.8 V, 2.5 V, 3.3 V, and 5 V. The LM1117 offers current limiting and thermal shutdown. Its circuit includes a Zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. A minimum of 10 μF tantalum capacitor is required at the output to improve the transient response and stability.
Applications
- Post Regulator for Switching DC–DC Converter
- High Efficiency Linear Regulators
- Battery Chargers
- Portable Instrumentation
- Active SCSI Termination Regulator
Key features
- Available in 1.8 V, 2.5 V, 3.3 V, 5 V, and Adjustable Versions
- Space-Saving SOT-223 and WSON Packages
- Current Limiting and Thermal Protection
- Output Current 800 mA
- Line Regulation 0.2% (Maximum)
- Load Regulation 0.4% (Maximum)
- Temperature Range: LM1117: 0°C to 125°C; LM1117I: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117IMPX-3.3/NOPB#C23984TI · SOT-223 | TI | SOT-223 | 73,155 | ₹36.99 · 73,155 in stock | View |
 | LM1117MP-3.3/NOPB#C2860766TI · SOT-223-4 | TI | SOT-223-4 | 6,695 | ₹42.55 · 6,695 in stock | View |
 | LM1117MP-3.3#C3750685TI · SOT-223 | TI | SOT-223 | 2,145 | ₹60.73 · 2,145 in stock | View |
 | AMS1117-3.3#C18164485GR · SOT-223 | GR | SOT-223 | 48,060 | ₹5.27 · 48,060 in stock | View |
 | LM1117IMP-3.3/NOPB#C129334TI · SOT-223 | TI | SOT-223 | 23,655 | ₹39.56 · 23,655 in stock | View |
