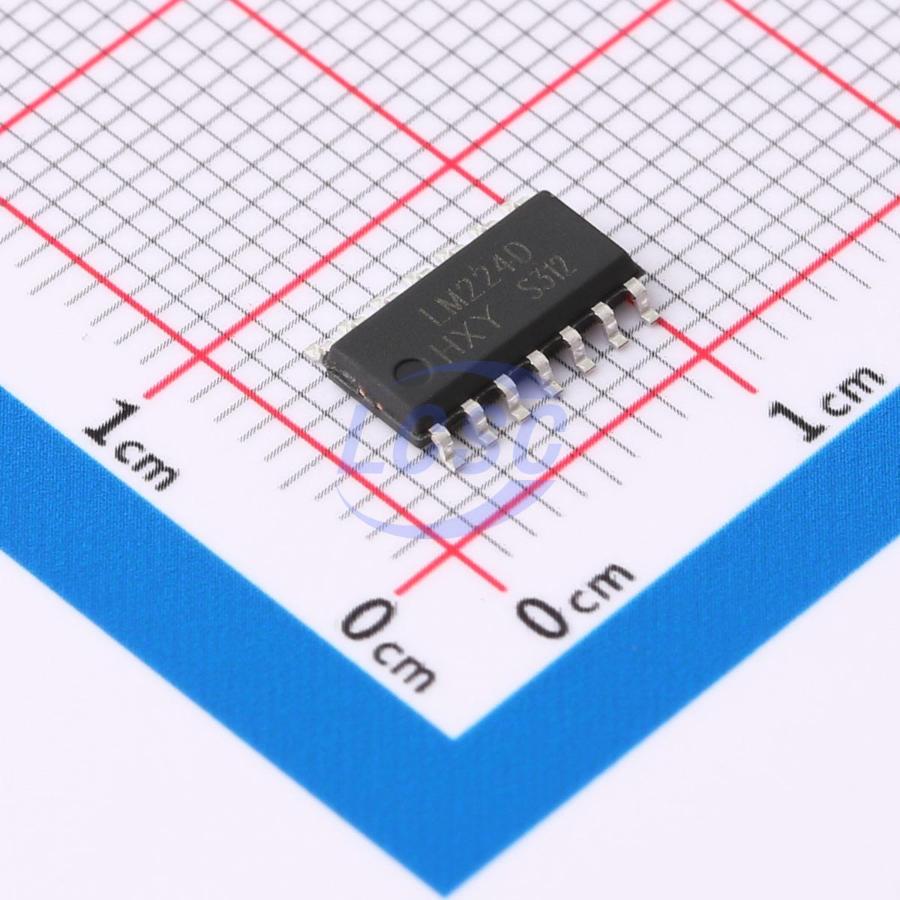

HXY MOSFET

LM224

Standard (General Purpose) Amplifier 4 Circuit SOP-14

SOP-14RoHSActive

IC OPAMP GP 4 CIRCUIT SOP-14

Manufacturer: HXY MOSFET
Manufacturer part #: LM224
Store part #: C6851435
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,020 in stock

#C6851435

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹11.39	₹56.95
50+	₹9.33	₹466.50
150+	₹8.30	₹1,245.00
500+	₹7.51	₹3,755.00
2,500+	₹6.14	₹15,350.00
5,000+	₹5.83	₹29,150.00

Quantity (min 5, multiples of 5)

5 × ₹11.39

₹56.95

excl. GST

₹67.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM224

₹56.95 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 7mV
Input Offset Current(Ios): 50nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 250nA
Quiescent Current: 600uA
Dual Supply: -1.5V~10V
Single Supply: 3V~20V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.263 g

Overview

LM224 is a high-performance quad independent operational amplifier with integrated phase compensation circuitry, suitable for tone equalization networks in tape recorders and tone systems, as well as other applications.

Key features

No external phase compensation circuit required
Wide supply voltage range: Single supply Vcc = 3 ~ 20 V; Dual supply Vcc = ±1.5 V ~ 10 V
Low supply current: Typical Icc = 0.6 mA (RL = ∞)
Input voltage range extends down to near ground level
