DOWODatasheet (PDF)

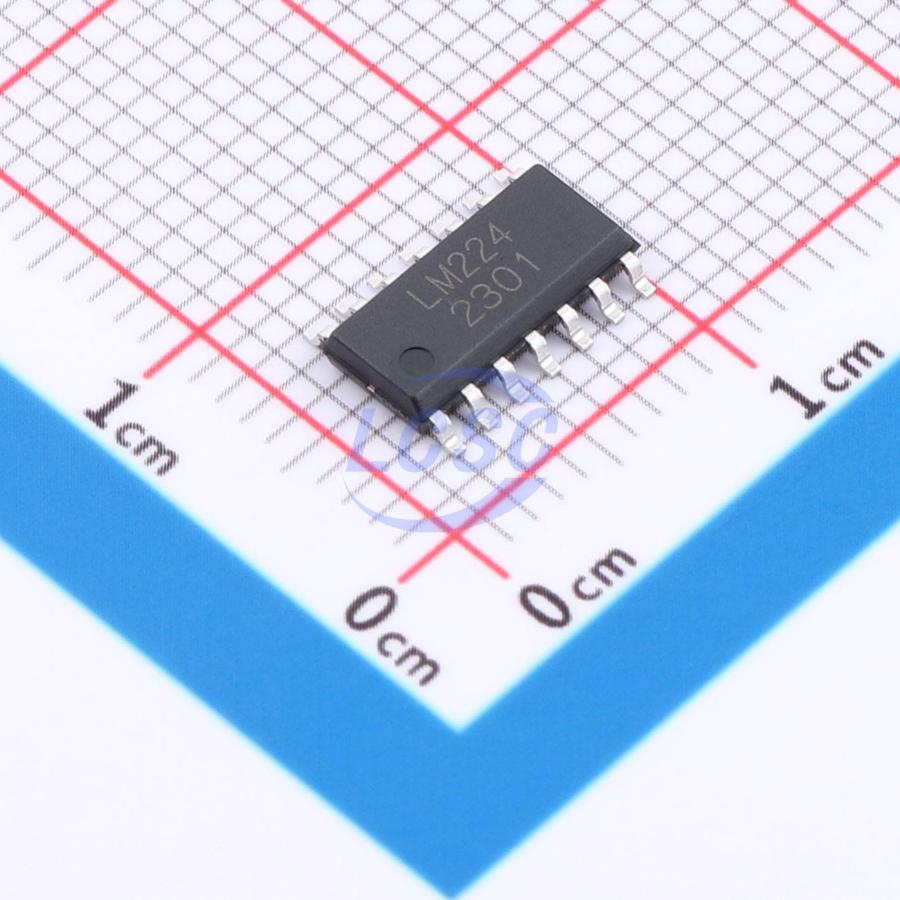

LM224-DW
Standard (General Purpose) Amplifier 4 Circuit SOP-14
SOP-14ROHS CompliantActive
Quad operational amplifier integrated circuit
- Manufacturer
- DOWO
- Manufacturer part #
- LM224-DW
- Store part #
- C47355690
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C47355690
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.07 | ₹80.35 |
| 50+ | ₹12.66 | ₹633.00 |
| 150+ | ₹10.95 | ₹1,642.50 |
| 500+ | ₹9.68 | ₹4,840.00 |
| 2,500+ | ₹8.86 | ₹22,150.00 |
| 5,000+ | ₹8.36 | ₹41,800.00 |
5 × ₹16.07
₹80.35
excl. GST
₹94.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM224-DW
₹80.35 for 5 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- -20℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 45nA
- Quiescent Current
- 600uA
- Features
- Built-in compensation
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.271 g
Overview
This IC is a high-performance device containing four independent operational amplifiers with integrated phase compensation circuitry. Suitable for tone equalization networks in tape recorders and tone control systems, as well as other applications. Available in 14-pin DIP14 package with a power dissipation of 720mW, and SOP14 surface-mount package with a power dissipation of 400mW.
Key features
- No external phase compensation circuit required
- Wide supply voltage range: single supply Vcc = 3~32V; dual supply Vcc = ±1.5V~±16V
- Low supply current: typical Icc = 0.6mA (RL = ∞)
- Input voltage range can approach ground level
