HANSCHIP semiconductorDatasheet (PDF)

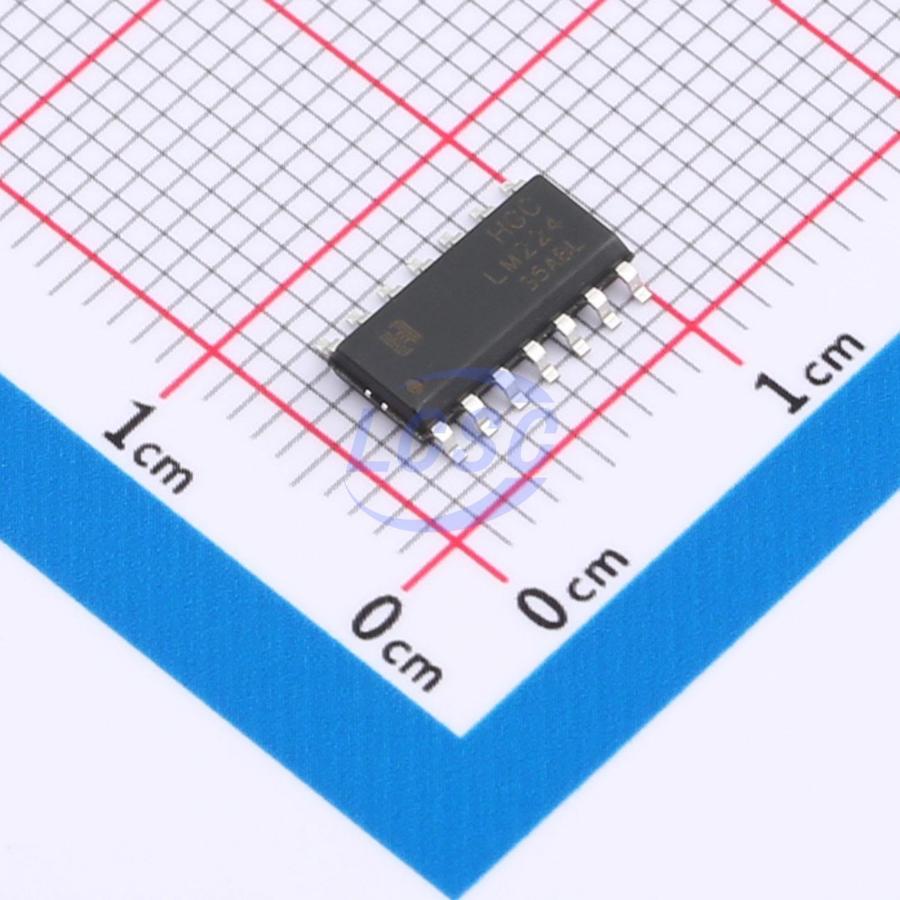

LM224DRG
Standard (General Purpose) Amplifier 4 Circuit SOP-14
SOP-14ROHS CompliantActive
IC OPAMP GP 4 CIRCUIT SOP-14
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM224DRG
- Store part #
- C5145326
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,975 in stock
#C5145326
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.78 | ₹63.90 |
| 50+ | ₹10.17 | ₹508.50 |
| 150+ | ₹8.86 | ₹1,329.00 |
| 500+ | ₹7.89 | ₹3,945.00 |
| 2,500+ | ₹6.79 | ₹16,975.00 |
| 5,000+ | ₹6.39 | ₹31,950.00 |
5 × ₹12.78
₹63.90
excl. GST
₹75.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM224DRG
₹63.90 for 5 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 45nA
- Quiescent Current
- 600uA
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
This product is a high-performance quad operational amplifier IC with internally integrated phase compensation circuitry. It is suitable for tone equalization networks in tape recorders and tone systems, as well as other applications. The device offers multiple package options, including a 14-pin DIP-14 with a power dissipation of 720mW, and surface mount packages such as SOP-14, TSSOP-14, QSOP-16, and QFN-16 (3×3mm) with a power dissipation of 400mW. This product is not authorized for use in life support or similar applications, and is neither intended nor warranted for use in systems where a malfunction could result in personal injury or significant property damage. Such use is considered unsafe, and the associated risks and liabilities shall be borne solely by the user.
Key features
- No external phase compensation circuit required
- Wide supply voltage range: 3V ~ 32V single supply, ±1.5V ~ ±16V dual supply
- Low quiescent current: 0.6mA typical (RL=∞)
- Input voltage range extends down to near ground level
