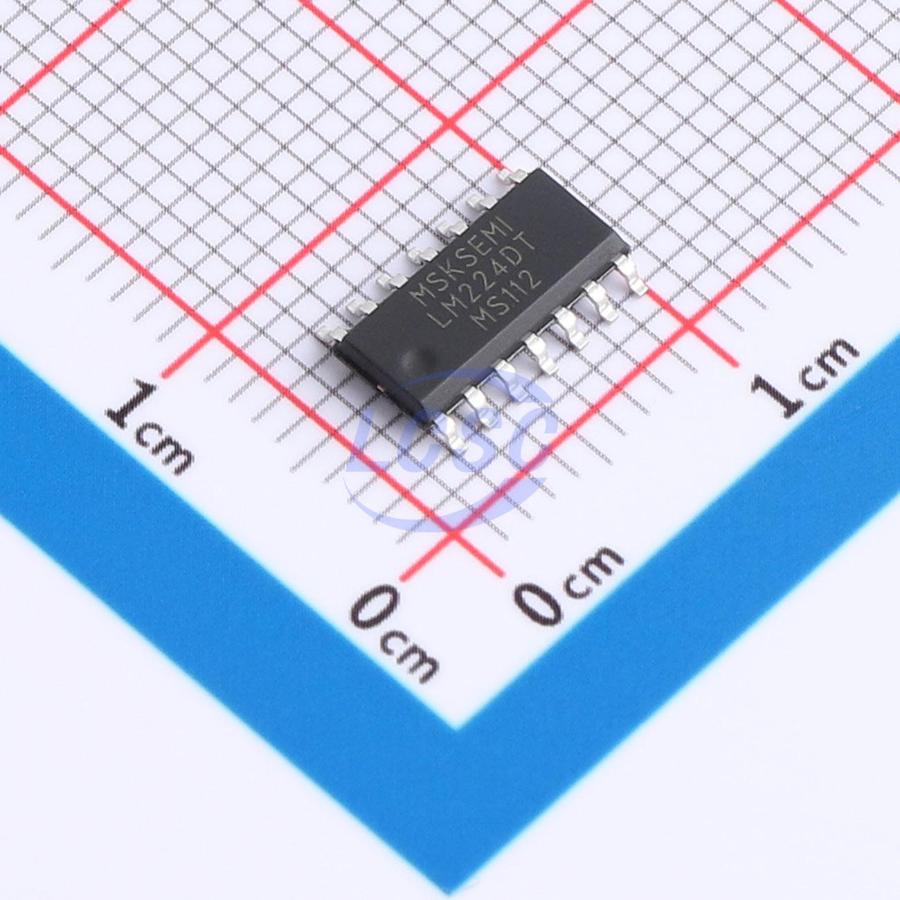

LM224DT(MS)
40mA 4 2mV 56dB 45nA 600uA SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LM224DT(MS)
- Store part #
- C52988845
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,640 in stock
#C52988845
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.09 | ₹85.45 |
| 50+ | ₹13.63 | ₹681.50 |
| 150+ | ₹11.88 | ₹1,782.00 |
| 500+ | ₹10.58 | ₹5,290.00 |
| 2,500+ | ₹9.54 | ₹23,850.00 |
| 4,000+ | ₹9.01 | ₹36,040.00 |
5 × ₹17.09
₹85.45
excl. GST
₹100.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM224DT(MS)
₹85.45 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 56dB
- Ib - Input Bias Current
- 45nA
- Quiescent Current
- 600uA
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.231 g
Overview
This circuit is a high-performance quad independent operational amplifier with built-in phase compensation, suitable for use as a tone equalization network in tape recorders and tone control systems, as well as other applications. Housed in a 14-lead SOP-14 SMT plastic package with a power dissipation of 600mW.
Applications
- LM224 for five-frequency tone control circuits
- Other applications of LM224
Key features
- No external phase compensation circuit required
- Wide supply voltage range: Single supply Vcc = 3 ~ 32V, Dual supply Vcc = ±1.5V ~ 16V
- Low supply current: Icc = 0.6mA (typ.) (RL = ∞)
- Input voltage range extends close to ground level
