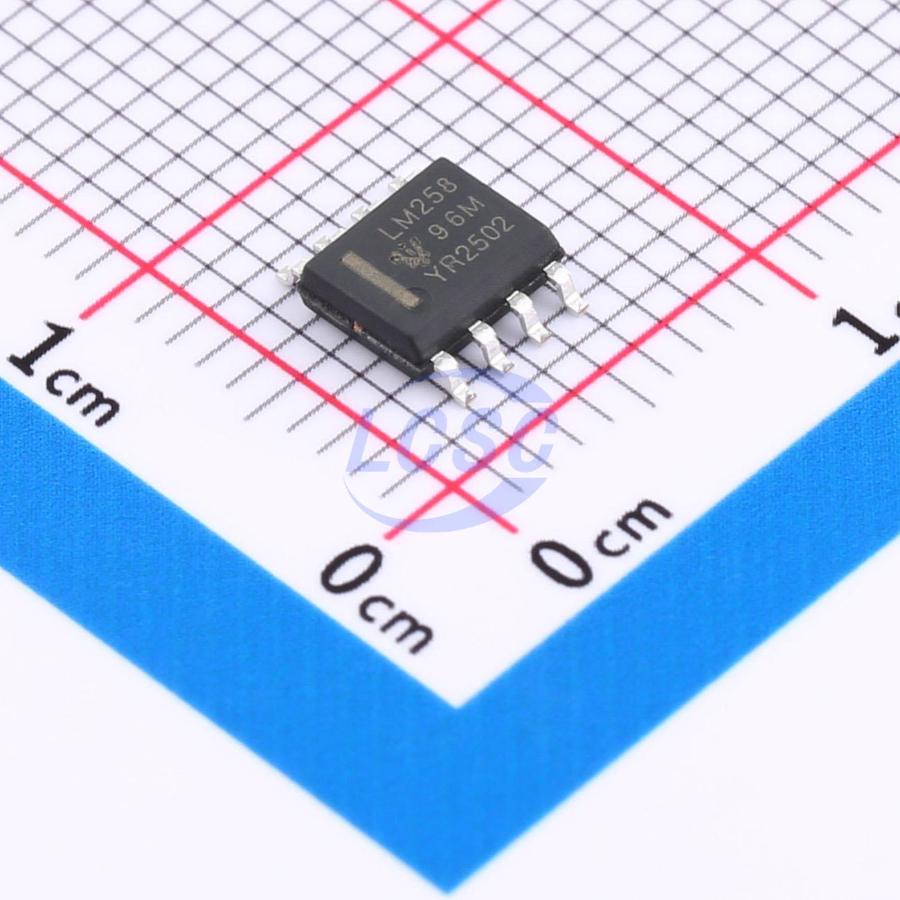

IDCHIP

LM258

Standard (General Purpose) Amplifier 2 Circuit SOIC-8

SOIC-8ROHS CompliantActive

Low-power dual operational amplifier

Manufacturer: IDCHIP
Manufacturer part #: LM258
Store part #: C2941724
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

23,600 in stock

#C2941724

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹10.97	₹109.70
100+	₹8.84	₹884.00
300+	₹7.78	₹2,334.00
2,500+	₹6.30	₹15,750.00
5,000+	₹5.66	₹28,300.00
10,000+	₹5.33	₹53,300.00

Quantity (min 10, multiples of 10)

10 × ₹10.97

₹109.70

excl. GST

₹129.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM258

₹109.70 for 10 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Input Offset Current(Ios): 3nA
Operating Temperature: -25℃~+85℃
Ib - Input Bias Current: 150nA
Common Mode Rejection Ratio(CMRR): 90dB
Quiescent Current: 500uA
Dual Supply: -16V~16V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.17 g

Overview

The LM258 consists of two independent high-gain op-amps. It supports both single-supply and dual-supply operation, with supply current independent of supply voltage. Applications include audio amplifiers, industrial control, DC gain stages, and general-purpose op-amp circuits. Available in DIP8 or SOP8 packages.
