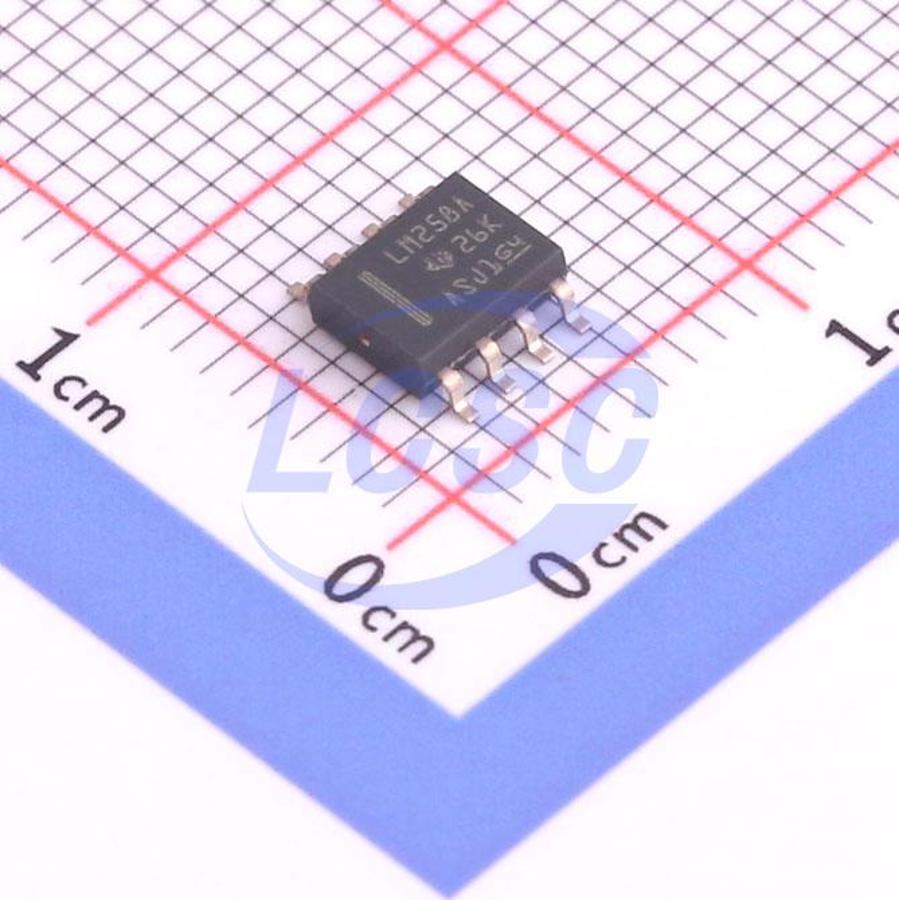

LM258ADR

20mA 2 3mV 300V/ms 80dB 150nA 700uA 700kHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Dual Operational Amplifiers

Manufacturer: TI
Manufacturer part #: LM258ADR
Store part #: C53555
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

86,180 in stock

#C53555

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹16.91	₹84.55
50+	₹13.51	₹675.50
150+	₹11.81	₹1,771.50
500+	₹10.53	₹5,265.00
2,500+	₹8.56	₹21,400.00
5,000+	₹8.04	₹40,200.00

Quantity (min 5, multiples of 5)

5 × ₹16.91

₹84.55

excl. GST

₹99.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM258ADR

₹84.55 for 5 + GST

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 300V/ms
Input Offset Current(Ios): 2nA
Operating Temperature: -25℃~+85℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 150nA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 700uA
Gain Bandwidth Product: 700kHz
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: 1.5V~16V;-16V~-1.5V
Single Supply: 3V~32V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.226 g

Overview

These devices consist of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages.

Applications

Blu-ray Players and Home Theaters
Chemical and Gas Sensors
DVD Recorder and Players
Digital Multimeter: Bench and Systems
Digital Multimeter: Handhelds
Field Transmitter: Temperature Sensors
Motor Control: AC Induction, Brushed DC, Brushless DC, High-Voltage, Low-Voltage, Permanent Magnet, and Stepper Motor
Oscilloscopes
TV: LCD and Digital
Temperature Sensors or Controllers Using Modbus
Weigh Scales

Key features

Wide Supply Ranges
Single Supply: 3 V to 32 V (26 V for LM2904)
Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2904)
Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typical
Wide Unity Gain Bandwidth: 0.7 MHz
Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
Low Input Bias and Offset Parameters
Input Offset Voltage: 3 mV Typical A Versions: 2 mV Typical
Input Offset Current: 2 nA Typical
Input Bias Current: 20 nA Typical A Versions: 15 nA Typical
Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2904)
Open-Loop Differential Voltage Gain: 100 dB Typical
Internal Frequency Compensation
