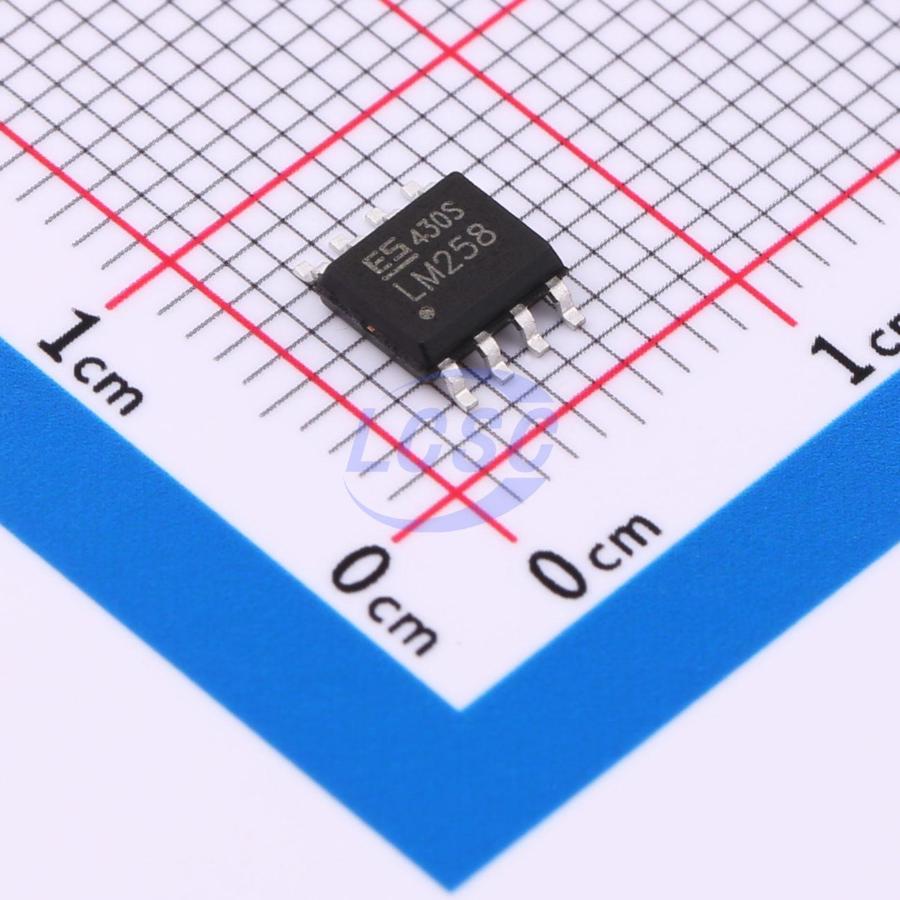

LM258DR(ES)

Manufactured with advanced process technology and managed under full-process automotive-grade standards. Available in single, dual, and quad op-amp configurations, featuring proprietary circuit design techniques with classic rail-to-rail input/output swing, offering high consistency and symmetry across the full operating voltage and temperature range. Suitable for cost-sensitive and space-constrained applications, providing excellent coordination across overall circuit configurations. The built-in overload protection circuit enables the amplifier to activate a recovery function during overload conditions and resume operation within a short time, enhancing circuit reliability. Available in industry-standard packages including SOP, MSOP, SOT-23, and TSSOP; the quad op-amp (ESLM324A) also offers a unique QFN16 3×3 package for space-critical applications. These devices contain 4 independent high-gain frequency-compensated op-amps, designed primarily for single-supply operation over a wide voltage range, while also supporting dual-supply operation. The low supply current drain is independent of supply voltage magnitude. Typical applications include sensor amplifiers, DC amplifier stages, and all conventional op-amp circuits, which can be more easily implemented in single-supply voltage systems. Slew rate of 1.0 V/μs with 1.0 MHz gain-bandwidth product. Low input offset voltage under high-voltage supply conditions, with a typical value as low as 0.35 mV, suitable for high-sensitivity applications. The op-amps are well-suited for various signal conditioning applications and support powering inputs ahead of Vs, enabling flexible multi-supply circuit capability. An inverting amplifier accepts a positive input voltage and converts it to a negative voltage of equal magnitude, and likewise converts a negative input voltage to a positive voltage.

Applications

• Motor drives, automotive electronics (inverters, UPS), home appliances (indoor/outdoor air conditioners), sensor modules, power modules

Key features

• Ultra-low input offset voltage: ±3mV
• Supply voltage: 3V~36V
• Single/dual supply operation
• Low quiescent current: 117μA/ch
• Low wideband noise: 35nV/√Hz
• Rail-to-rail input/output
• Unity gain bandwidth: 1MHz
• Built-in overload fast recovery for enhanced op-amp reliability
• Operating temperature range: -40℃~125℃
