HANSCHIP semiconductorDatasheet (PDF)

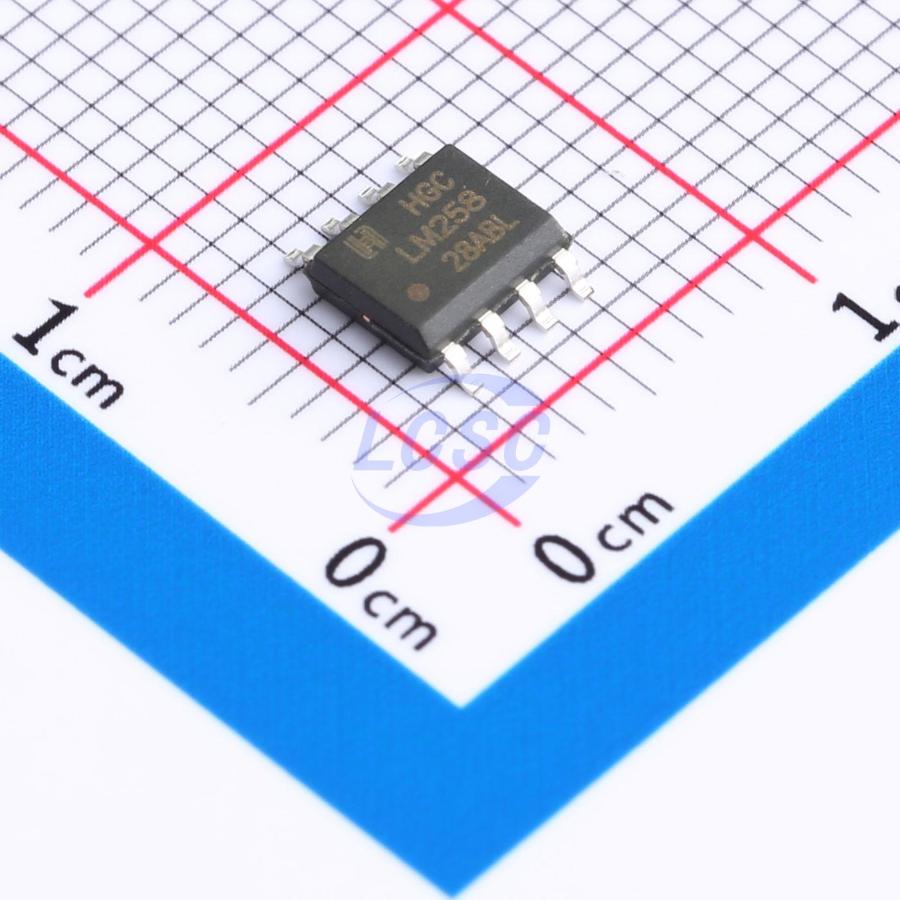

LM258DRG
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8ROHS CompliantActive
Dual low-power differential operational amplifier
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM258DRG
- Store part #
- C5145322
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,860 in stock
#C5145322
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.78 | ₹57.80 |
| 100+ | ₹5.09 | ₹509.00 |
| 300+ | ₹4.74 | ₹1,422.00 |
| 2,500+ | ₹4.27 | ₹10,675.00 |
| 5,000+ | ₹4.06 | ₹20,300.00 |
| 10,000+ | ₹3.96 | ₹39,600.00 |
10 × ₹5.78
₹57.80
excl. GST
₹68.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM258DRG
₹57.80 for 10 + GST
Specifications
- Output Current
- 24mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 7mV
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 250nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1.2MHz
- Dual Supply
- -18V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.21 g
Overview
The LM258/LM358 is a dual low-power differential operational amplifier that supports both single-supply and dual-supply operation. It features high open-loop gain, internal compensation, wide common-mode range, good temperature stability, and output short-circuit protection. Widely used in sensor amplification circuits, DC amplifier modules, audio amplification circuits, and conventional op-amp circuit applications.
Applications
- Sensor signal amplifier
- DC gain
- Audio amplifier
- Other applications
Key features
- Internal frequency compensation
- Short-circuit protection
- Low power consumption: typical 0.5mA @ VCC=5V
- Package options: DIP-8, SOP-8, MSOP-8, TSSOP-8, SOT-23-8, and DFN-8
- Single-supply voltage range: 3V~36V
- Dual-supply voltage range: ±18V
- Unity-gain bandwidth: up to 1.2MHz
