TDSEMICDatasheet (PDF)

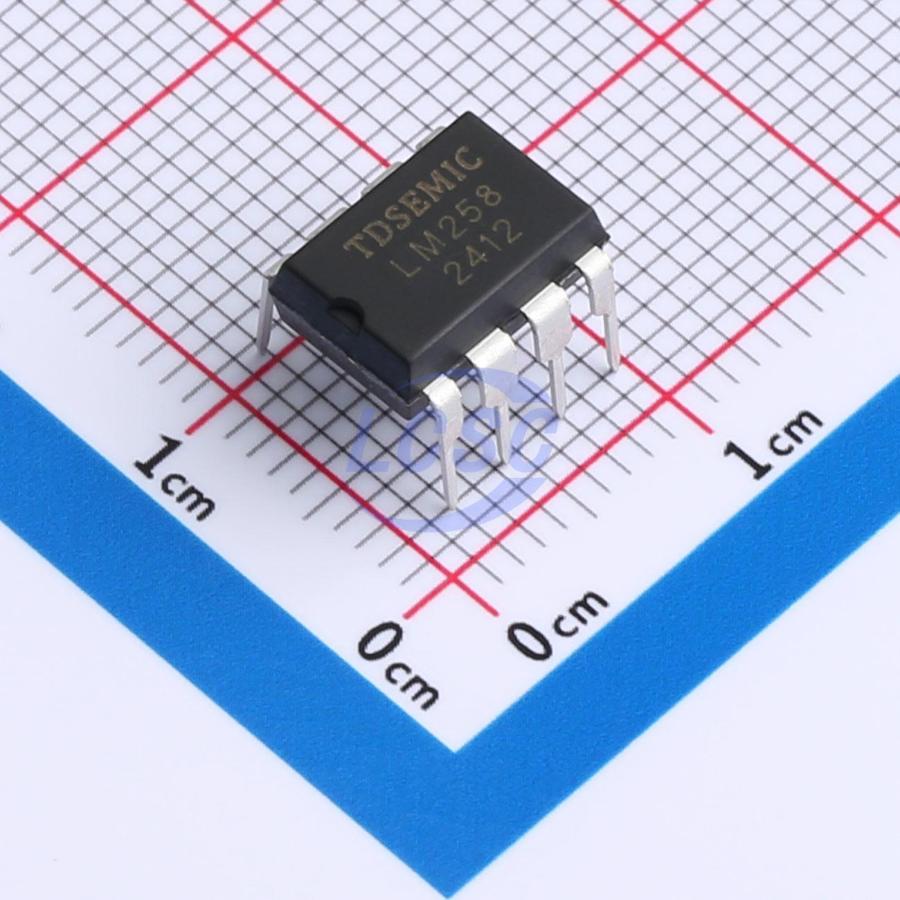

LM258N-TD
24mA 2 3mV 80dB 50nA 500uA 1.2MHz DIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
DIP-8ROHS CompliantActive
Dual low-power differential operational amplifier
- Manufacturer
- TDSEMIC
- Manufacturer part #
- LM258N-TD
- Store part #
- C42421951
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,685 in stock
#C42421951
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.57 | ₹62.85 |
| 50+ | ₹9.96 | ₹498.00 |
| 150+ | ₹8.67 | ₹1,300.50 |
| 500+ | ₹7.69 | ₹3,845.00 |
| 2,500+ | ₹6.91 | ₹17,275.00 |
| 5,000+ | ₹6.51 | ₹32,550.00 |
5 × ₹12.57
₹62.85
excl. GST
₹74.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM258N-TD
₹62.85 for 5 + GST
Specifications
- output type
- Single-Ended
- Output Current
- 24mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 50nA
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Power Supply Rejection Ratio (PSRR)
- 90dB
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1.2MHz
- Dual Supply
- -18V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.818 g
Overview
LM258N-TD contains two independent, high-gain, internally frequency-compensated operational amplifiers. It operates from either a single or split power supply.
Applications
- General-purpose amplifier
Key features
- Internal frequency compensation, unity-gain stable
- Input common-mode voltage range includes ground
- High DC voltage gain
