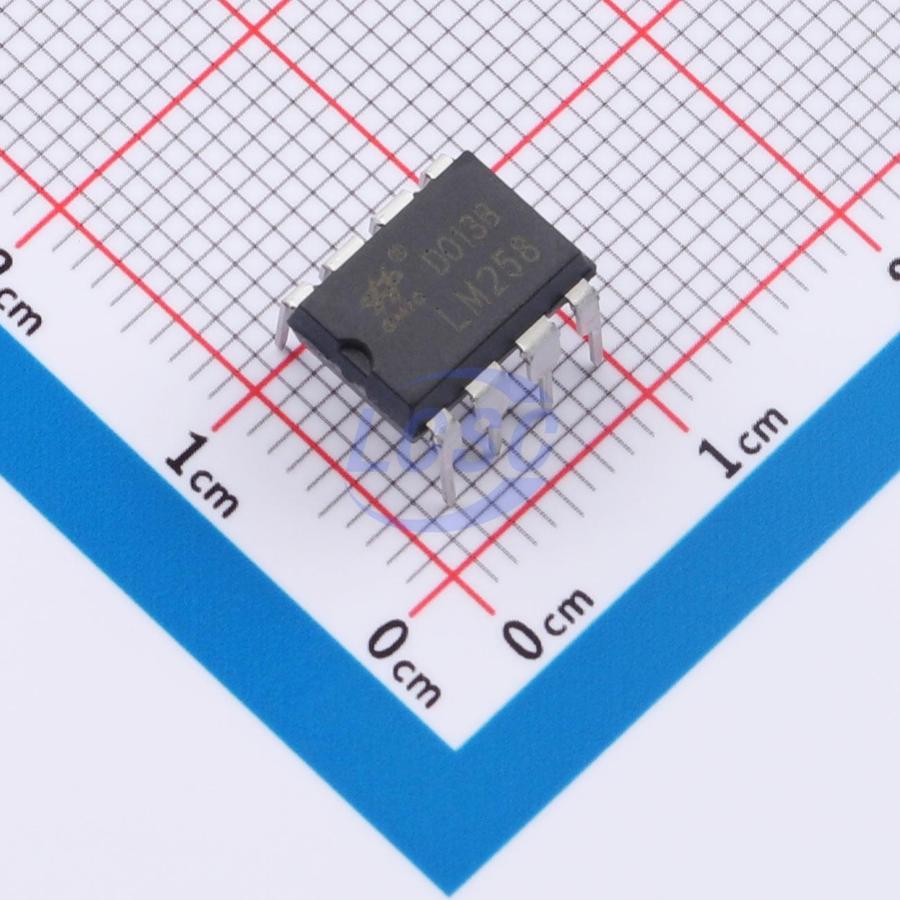

LM258N013
40mA 2 5mV 300V/ms 100dB 250nA 500uA 1MHz DIP-8 Instrumentation, Op Amps, Buffer Amps
DIP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- LM258N013
- Store part #
- C51026320
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,440 in stock
#C51026320
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.77 | ₹58.85 |
| 50+ | ₹9.31 | ₹465.50 |
| 150+ | ₹8.08 | ₹1,212.00 |
| 500+ | ₹7.16 | ₹3,580.00 |
| 2,000+ | ₹6.42 | ₹12,840.00 |
| 4,000+ | ₹6.05 | ₹24,200.00 |
5 × ₹11.77
₹58.85
excl. GST
₹69.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM258N013
₹58.85 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -25℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 250nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The LM258 consists of two independent high-gain op-amps. It operates from single or dual supplies with very low quiescent current independent of supply voltage. Applications include audio amplifiers, industrial control, DC gain modules, and all conventional op-amp circuits. Available in DIP8, SOP8, MSOP8, and TSSOP8 packages.
Key features
- Unity-gain internal frequency compensation
- High DC voltage gain: 100dB
- Wide unity-gain bandwidth: 1MHz (temperature compensated)
- Wide supply voltage range: single supply 3V~36V, or dual supply ±1.5V~±18V
- Very low quiescent current: 500μA — essentially independent of supply voltage
- Low input offset voltage: 2mV
- Input common-mode voltage range includes ground
- Differential input voltage range equal to supply voltage
- Large output voltage swing: 0V to V+ - 1.5V
