HANSCHIP semiconductorDatasheet (PDF)

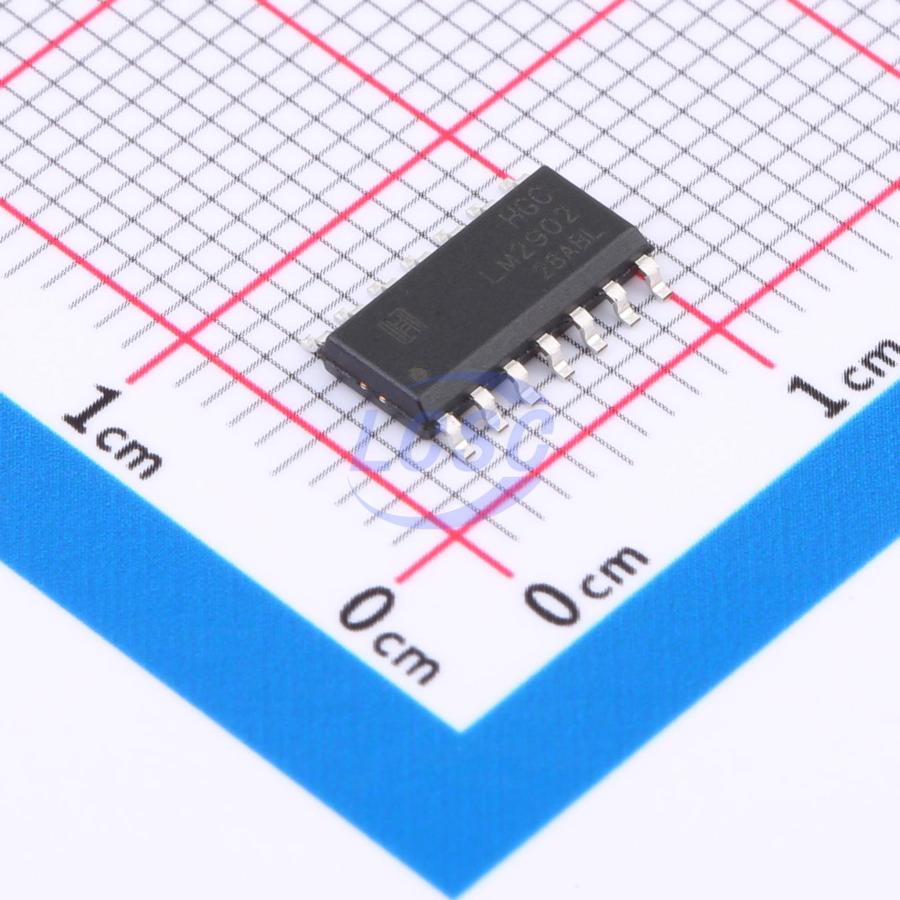

LM2902DRG
Standard (General Purpose) Amplifier 4 Circuit SOP-14
SOP-14ROHS CompliantActive
IC OPAMP GP 4 CIRCUIT SOP-14
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM2902DRG
- Store part #
- C5145306
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,190 in stock
#C5145306
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.23 | ₹102.30 |
| 100+ | ₹8.14 | ₹814.00 |
| 300+ | ₹7.09 | ₹2,127.00 |
| 2,500+ | ₹6.06 | ₹15,150.00 |
| 5,000+ | ₹5.42 | ₹27,100.00 |
| 10,000+ | ₹5.11 | ₹51,100.00 |
10 × ₹10.23
₹102.30
excl. GST
₹120.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2902DRG
₹102.30 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 375uA
- Gain Bandwidth Product
- 1.3MHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -15V~-1.5V;1.5V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.28 g
Overview
This circuit consists of four independent, high-gain, internally frequency-compensated operational amplifiers designed for automotive and industrial control systems. It operates from a single supply over a wide voltage range. Split supply operation is also supported, with low supply current drain independent of the supply voltage magnitude.
Key features
- Wide gain bandwidth: 1.3MHz
- Input common-mode voltage range includes ground
- High voltage gain: 100dB
- Ultra-low supply current/amplifier: 375μA
- Low input bias current: 20nA
- Low input offset current: 2nA
- Wide supply range: Single supply: +3V ~ +30V; Dual supply: ±1.5V ~ ±15V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LMV724DRG#C19723761HANSCHIP semiconductor · SOP-14 | HANSCHIP semiconductor | SOP-14 | 2,475 | ₹21.88 · 2,475 in stock | View | |
 | LMV824IDRG#C5145252HANSCHIP semiconductor · SOP-14 | HANSCHIP semiconductor | SOP-14 | 3,105 | ₹21.56 · 3,105 in stock | View |
