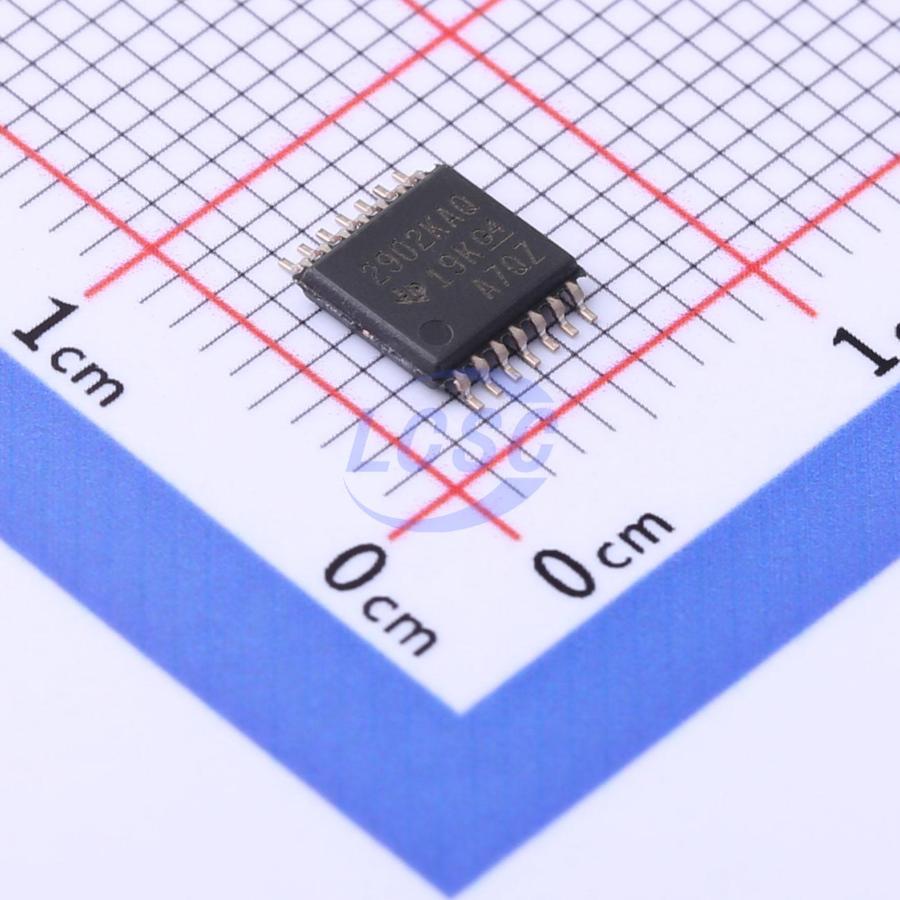

LM2902KAVQPWRQ1

Standard (General Purpose) Amplifier 4 Circuit TSSOP-14

TSSOP-14ROHS3 CompliantActive

Industry-standard quad operational amplifiers suitable for automotive applications

Manufacturer: TI
Manufacturer part #: LM2902KAVQPWRQ1
Store part #: C2869165
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

909 in stock

#C2869165

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹38.88	₹38.88
10+	₹33.70	₹337.00
30+	₹31.54	₹946.20
100+	₹28.72	₹2,872.00
500+	₹27.44	₹13,720.00
1,000+	₹26.57	₹26,570.00

Quantity (min 1)

1 × ₹38.88

₹38.88

excl. GST

₹45.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

LM2902KAVQPWRQ1

₹38.88 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 60mA
Number of Channels: 4
Vos - Input Offset Voltage: 2mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 50nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 500nA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 175uA
Gain Bandwidth Product: 1.2MHz
Input Voltage Noise Density: 35nV/√Hz@1kHz
Single Supply: 3V~30V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.154 g
