HGSEMIDatasheet (PDF)

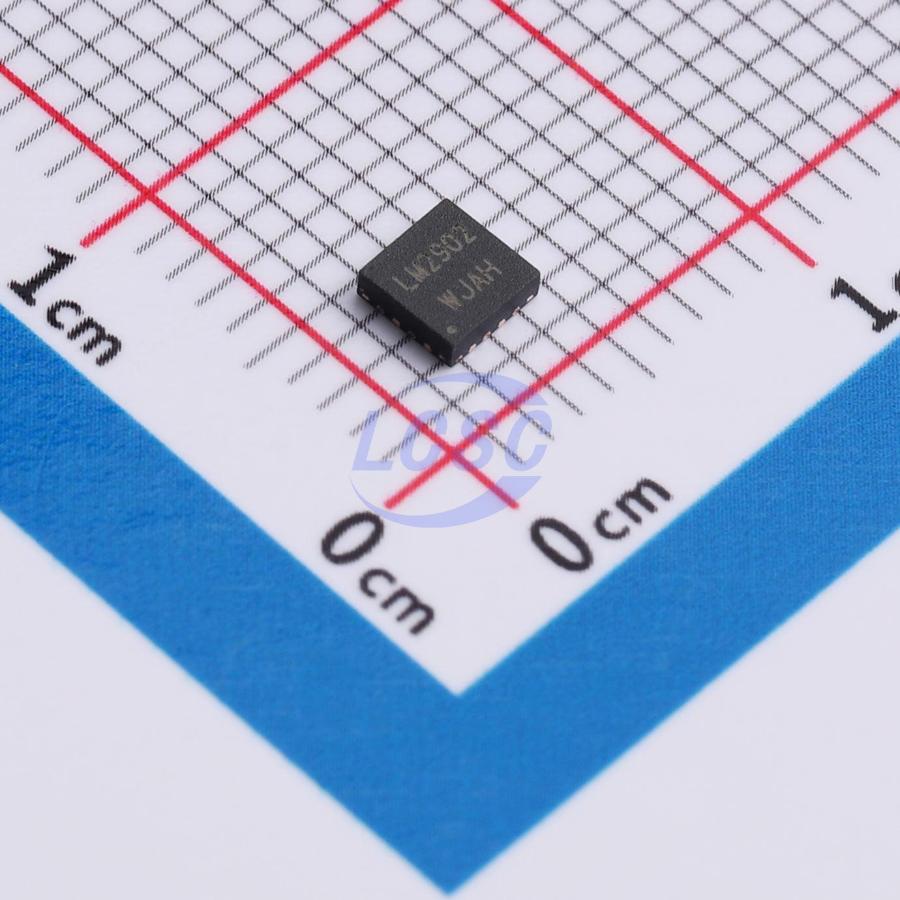

LM2902LQ/TR
40mA 4 2mV 400V/ms 80dB 20nA 700uA 1.3MHz QFN-16(3x3) Instrumentation, Op Amps, Buffer Amps
QFN-16(3x3)RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM2902LQ/TR
- Store part #
- C52121523
- Package / case
- QFN-16(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,550 in stock
#C52121523
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.00 | ₹75.00 |
| 50+ | ₹11.92 | ₹596.00 |
| 150+ | ₹10.37 | ₹1,555.50 |
| 500+ | ₹9.22 | ₹4,610.00 |
| 2,500+ | ₹8.30 | ₹20,750.00 |
| 5,000+ | ₹7.83 | ₹39,150.00 |
5 × ₹15.00
₹75.00
excl. GST
₹88.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LM2902LQ/TR
₹75.00 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 700uA
- Gain Bandwidth Product
- 1.3MHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -15V~-1.5V;1.5V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.176 g
Overview
This circuit consists of four independent, high-gain, internally frequency-compensated operational amplifiers, specifically designed for automotive and industrial control systems. It operates from a single supply over a wide voltage range, or alternatively from dual supplies, with low supply current drain independent of the supply voltage magnitude.
Applications
- AC-coupled inverting amplifier
- AC-coupled non-inverting amplifier
- DC summing amplifier
- Non-inverting DC gain
- Active bandpass filter
- High input impedance adjustable-gain DC instrumentation amplifier
- High input impedance DC differential amplifier
- Low-drift peak detector
- Input current reduction using complementary amplifiers (general concept)
Key features
- Wide gain bandwidth: 1.3MHz
- Input common-mode voltage range includes ground
- High voltage gain: 100dB
- Ultra-low supply current/amplifier: 375µA
- Low input bias current: 20nA
- Low input offset current: 2nA
- Wide supply range: Single supply: +3V ~ +30V; Dual supply: ±1.5V ~ ±15V
- Package types: DIP-14, SOP-14, TSSOP-14, QFN-16 3×3
