HGSEMI

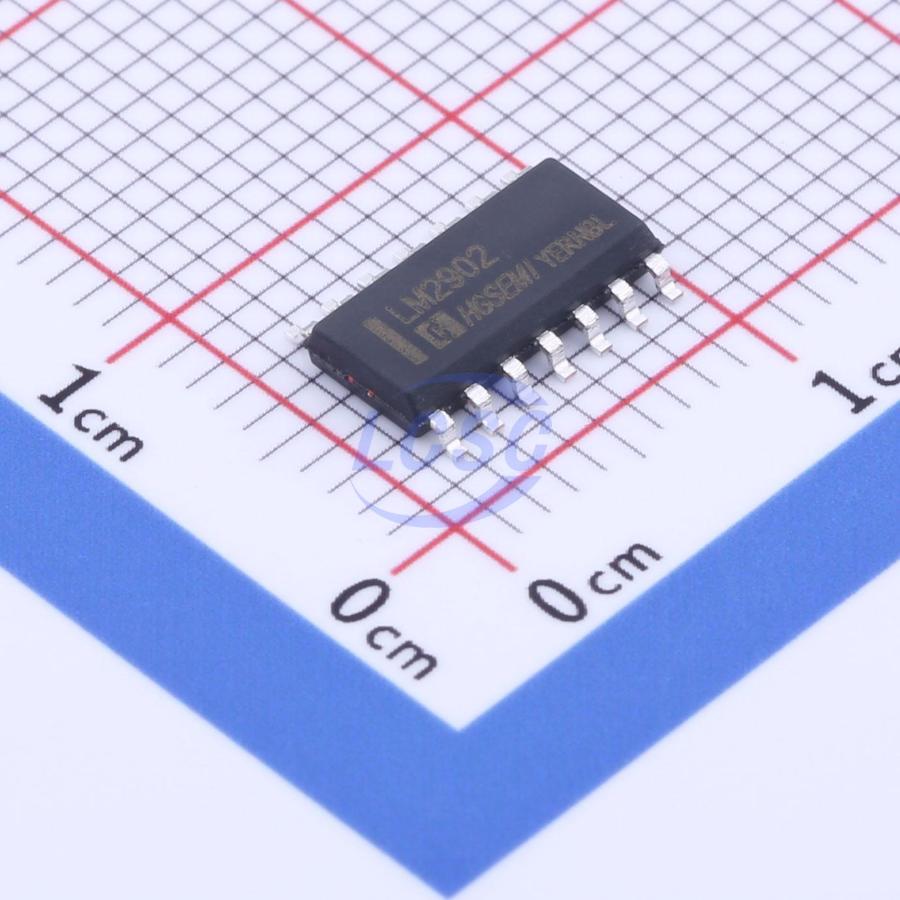

LM2902M/TR

40mA 4 2mV 400V/ms 20nA 80dB 700uA 1.3MHz SOP-14 Instrumentation, Op Amps, Buffer Amps

SOP-14RoHSActive

Wide Gain Bandwidth, Large Voltage Gain Operational Amplifier

Manufacturer: HGSEMI
Manufacturer part #: LM2902M/TR
Store part #: C2688468
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,050 in stock

#C2688468

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹13.44	₹67.20
50+	₹10.85	₹542.50
150+	₹9.55	₹1,432.50
500+	₹8.57	₹4,285.00
2,500+	₹7.61	₹19,025.00
5,000+	₹7.21	₹36,050.00

Quantity (min 5, multiples of 5)

5 × ₹13.44

₹67.20

excl. GST

₹79.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM2902M/TR

₹67.20 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 2mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 2nA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 20nA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 700uA
Gain Bandwidth Product: 1.3MHz
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: -15V~-1.5V;1.5V~15V
Single Supply: 3V~30V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.38 g

Overview

This circuit consists of four independent, high-gain, internally frequency-compensated operational amplifiers, specifically designed for automotive and industrial control systems. It operates from a single supply over a wide voltage range, or alternatively from dual supplies, with low supply current drain independent of the supply voltage magnitude.

Applications

AC-coupled inverting amplifier
AC-coupled non-inverting amplifier
DC summing amplifier
Non-inverting DC gain
Active bandpass filter
High input impedance adjustable-gain DC instrumentation amplifier
High input impedance DC differential amplifier
Low-drift peak detector
Input current reduction using complementary amplifiers (general concept)

Key features

Wide gain bandwidth: 1.3MHz
Input common-mode voltage range includes ground
High voltage gain: 100dB
Ultra-low supply current/amplifier: 375µA
Low input bias current: 20nA
Low input offset current: 2nA
Wide supply range: Single supply: +3V ~ +30V; Dual supply: ±1.5V ~ ±15V
Package types: DIP-14, SOP-14, TSSOP-14, QFN-16 3×3

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LM348M/TR#C434491HGSEMI · SOP-14	HGSEMI	SOP-14	1,005	₹17.17 · 1,005 in stock	View
LMV724M/TR#C5160100HGSEMI · SOP-14L	HGSEMI	SOP-14L	2,095	₹63.46 · 2,095 in stock	View
HGV6004AIM/TR#C49384186HGSEMI · SOP-14	HGSEMI	SOP-14	2,495	₹16.17 · 2,495 in stock	View
LMV824M/TR#C434487HGSEMI · SOP-14	HGSEMI	SOP-14	5	₹47.55 · 5 in stock	View
LMV774M/TR#C41380759HGSEMI · SOP-14	HGSEMI	SOP-14	2,287	₹61.08 · 2,287 in stock	View
