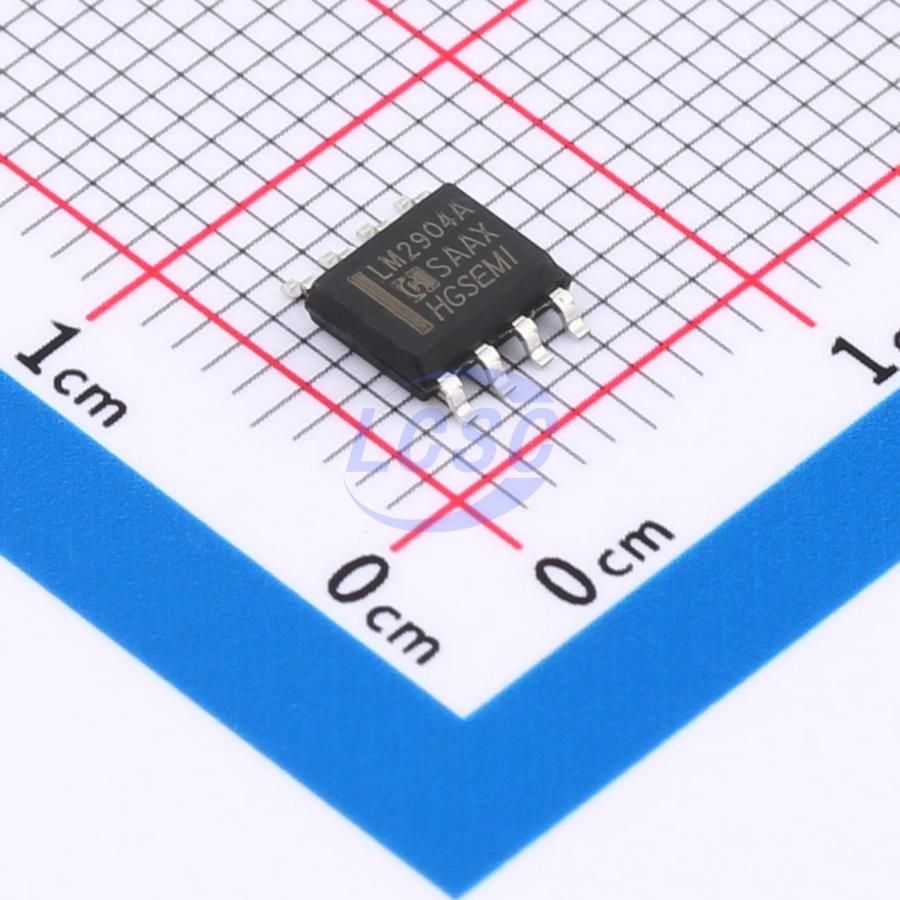

HGSEMI

LM2904AM/TR

Standard (General Purpose) Amplifier 2 Circuit SOP-8

SOP-8RoHSActive

A product composed of two independent high-gain operational amplifiers

Manufacturer: HGSEMI
Manufacturer part #: LM2904AM/TR
Store part #: C19193542
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,255 in stock

#C19193542

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹10.20	₹51.00
50+	₹8.07	₹403.50
150+	₹7.00	₹1,050.00
500+	₹6.20	₹3,100.00
2,500+	₹5.56	₹13,900.00
5,000+	₹5.24	₹26,200.00

Quantity (min 5, multiples of 5)

5 × ₹10.20

₹51.00

excl. GST

₹60.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM2904AM/TR

₹51.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 2mV
Input Offset Current(Ios): 30nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 45nA
Common Mode Rejection Ratio(CMRR): 65dB
Input Offset Voltage Drift(Vos TC): 100uV/℃
Quiescent Current: 1mA
Dual Supply: -16V~16V
Single Supply: 5V~32V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.239 g

Overview

The LM2904A consists of two independent high-gain op-amps. It operates from either a single or dual supply, with supply current independent of supply voltage. Applications include audio amplifiers, industrial control, DC gain stages, and all conventional op-amp circuits. The LM2904A is available in DIP-8, SOP-8, and MSOP-8 packages.
