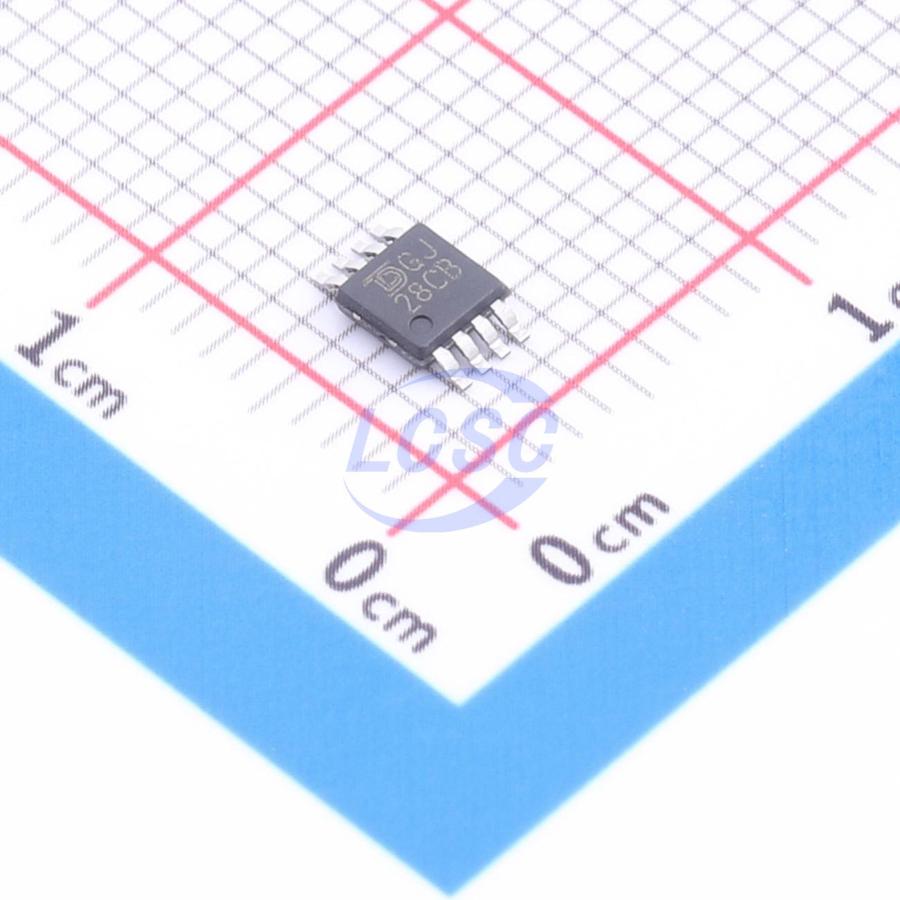

LM2904BAIDGKR-TUDI Tudi

LM2904BAIDGKR-TUDI

300uA 1.2MHz 35nA MSOP-8 Audio Amplifiers

MSOP-8RoHSActive

Manufacturer: Tudi
Manufacturer part #: LM2904BAIDGKR-TUDI
Store part #: C55098841
Package / case: MSOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,485 in stock

#C55098841

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹29.15	₹145.75
50+	₹23.02	₹1,151.00
150+	₹20.40	₹3,060.00
500+	₹17.13	₹8,565.00
2,500+	₹15.68	₹39,200.00
5,000+	₹14.79	₹73,950.00

Quantity (min 5, multiples of 5)

5 × ₹29.15

₹145.75

excl. GST

₹171.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM2904BAIDGKR-TUDI

₹145.75 for 5 + GST

Specifications

Common Mode Rejection Ratio (CMRR): 100dB
Quiescent Current: 300uA
Gain Bandwidth Product: 1.2MHz
number of channels: 2
Ib - Input Bias Current: 35nA
Operating Temperature: -40℃~+125℃
Input Offset Voltage Drift(Vos TC): 3.5uV/℃
Single Supply: 3V~36V
Input Offset Current(Ios): 500pA
Slew Rate: 500V/ms
Vos - Input Offset Voltage: 3mV
Noise density(eN): 40nV/√Hz@1kHz
Output Current: 20mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.236 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	LM2904BIDGKR-TUDI#C55098843Tudi · MSOP-8	Tudi	MSOP-8	195	₹19.24 · 195 in stock	View
	LM358BIDGKR-TUDI#C55098854Tudi · MSOP-8	Tudi	MSOP-8	2,500	₹19.24 · 2,500 in stock	View
	AD8606ARMZ-REEL-TUDI#C54741328Tudi · MSOP-8	Tudi	MSOP-8	2,182	₹65.05 · 2,182 in stock	View
	TSV912AIDGKR-TUDI#C54858228Tudi · MSOP-8	Tudi	MSOP-8	170	₹122.72 · 170 in stock	View
	TSV912AIST-TUDI#C54858233Tudi · MSOP-8	Tudi	MSOP-8	200	₹92.37 · 200 in stock	View
