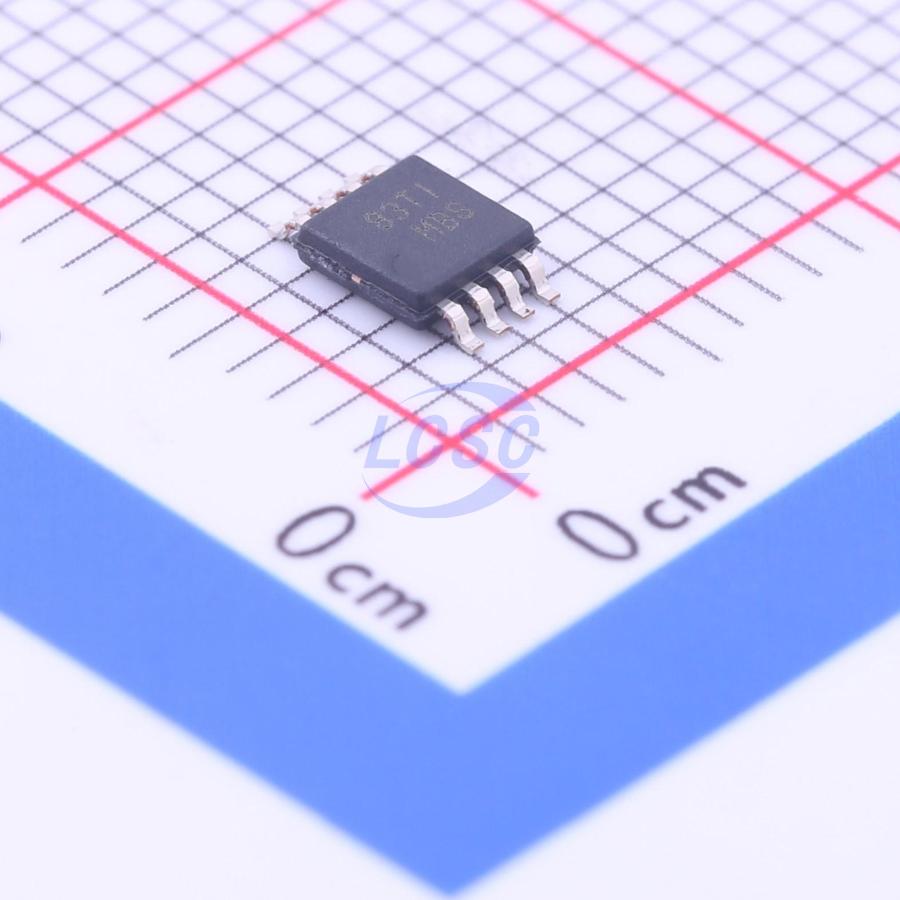

LM2904DGKR
20mA 2 3mV 300V/ms 80dB 20nA 700uA 700kHz VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS3 CompliantActive
Dual Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- LM2904DGKR
- Store part #
- C130142
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
64,320 in stock
#C130142
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.12 | ₹95.60 |
| 50+ | ₹15.11 | ₹755.50 |
| 150+ | ₹13.40 | ₹2,010.00 |
| 500+ | ₹11.26 | ₹5,630.00 |
| 2,500+ | ₹9.35 | ₹23,375.00 |
| 5,000+ | ₹8.78 | ₹43,900.00 |
5 × ₹19.12
₹95.60
excl. GST
₹112.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2904DGKR
₹95.60 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 700uA
- Gain Bandwidth Product
- 700kHz
- Features
- EMI filtering/RF suppression
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -13V~-1.5V;1.5V~13V
- Single Supply
- 3V~26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
These devices consist of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages.
Applications
- Blu-ray Players and Home Theaters
- Chemical and Gas Sensors
- DVD Recorder and Players
- Digital Multimeter: Bench and Systems
- Digital Multimeter: Handhelds
- Field Transmitter: Temperature Sensors
- Motor Control: AC Induction, Brushed DC, Brushless DC, High-Voltage, Low-Voltage, Permanent Magnet, and Stepper Motor
- Oscilloscopes
- TV: LCD and Digital
- Temperature Sensors or Controllers Using Modbus
- Weigh Scales
Key features
- Wide Supply Ranges – Single Supply: 3 V to 32 V (26 V for LM2904) Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2904)
- Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typical
- Wide Unity Gain Bandwidth: 0.7 MHz
- Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
- Low Input Bias and Offset Parameters – Input Offset Voltage: 3 mV Typical A Versions: 2 mV Typical
- Input Offset Current: 2 nA Typical
- Input Bias Current: 20 nA Typical A Versions: 15 nA Typical
- Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2904)
- Open-Loop Differential Voltage Gain: 100 dB Typical
- Internal Frequency Compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XL2904-KR#C5125484XINLUDA · VSSOP-8 | XINLUDA | VSSOP-8 | 765 | ₹13.77 · 765 in stock | View |
 | LM258ADGKR#C111854TI · VSSOP-8 | TI | VSSOP-8 | 2,640 | ₹24.35 · 2,640 in stock | View |
 | LM258DGKR#C962984TI · VSSOP-8 | TI | VSSOP-8 | On request | Price on request | Quote |
 | LM358DGKR#C33696TI · VSSOP-8 | TI | VSSOP-8 | 33,110 | ₹19.34 · 33,110 in stock | View |
 | LM358ADGKR#C484728TI · VSSOP-8 | TI | VSSOP-8 | 140 | ₹36.09 · 140 in stock | View |
