JSMSEMIDatasheet (PDF)

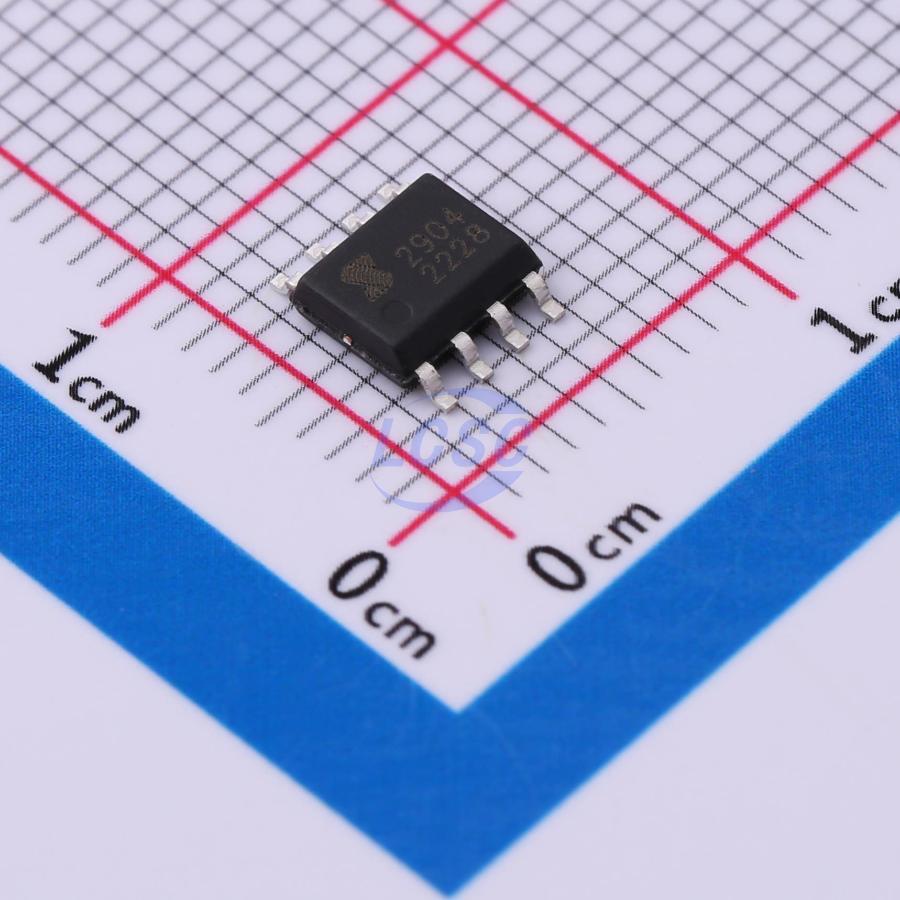

LM2904DR-JSM
30mA 2 7mV 80dB 250nA 800uA SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Dual Operational Amplifiers
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM2904DR-JSM
- Store part #
- C5296730
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,230 in stock
#C5296730
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.93 | ₹59.65 |
| 50+ | ₹9.60 | ₹480.00 |
| 150+ | ₹8.45 | ₹1,267.50 |
| 500+ | ₹7.58 | ₹3,790.00 |
| 2,500+ | ₹6.88 | ₹17,200.00 |
| 5,000+ | ₹6.54 | ₹32,700.00 |
5 × ₹11.93
₹59.65
excl. GST
₹70.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2904DR-JSM
₹59.65 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 7mV
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 250nA
- Quiescent Current
- 800uA
- Features
- Built-in compensation
- Dual Supply
- -16V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
The LM2904DR consists of two independent high gain, internally frequency compensated operational amplifier. It can be operated from a single power supply and also split power supplies.
Applications
- General purpose amplifier.
- Transducer amplifier.
Key features
- Internally frequency compensated for unity gain.
- Wide power supply range 3V - 32V.
- Input common-mode voltage range include ground.
- Large DC voltage gain.
