XBLW

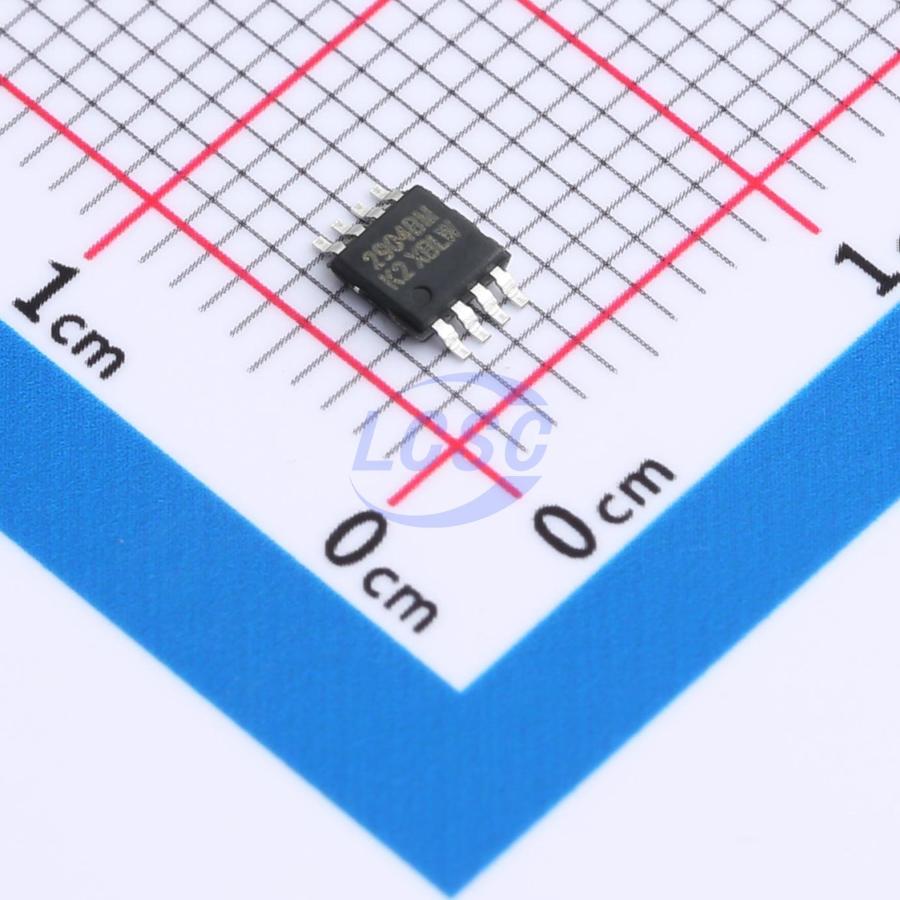

LM2904MDTR(XBLW)

40mA 2 5mV 90dB 45nA 500uA 1MHz MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS CompliantActive

Low Power Dual Operational Amplifier

Manufacturer: XBLW
Manufacturer part #: LM2904MDTR(XBLW)
Store part #: C42395495
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,495 in stock

#C42395495

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.82	₹54.10
50+	₹8.43	₹421.50
150+	₹7.24	₹1,086.00
500+	₹6.34	₹3,170.00
2,500+	₹5.61	₹14,025.00
5,000+	₹5.25	₹26,250.00

Quantity (min 5, multiples of 5)

5 × ₹10.82

₹54.10

excl. GST

₹63.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM2904MDTR(XBLW)

₹54.10 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Input Offset Current(Ios): 3nA
Operating Temperature: -20℃~+85℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 45nA
Quiescent Current: 500uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Dual Supply: 1.5V~16V;-16V~-1.5V
Single Supply: 3V~32V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.143 g

Overview

The LM2904 series consists of two independent, high gain, intermally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM2904 series can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.

Applications

Desktop PC and motherboard
Electronic point-of-sale systems
Indoor and outdoor air conditioners
Merchant network and server power supply units
Multi-function printers
Power supplies and mobile chargers
Uninteruptible power supplies
Washers, dryers, and refrigerators
AC inverters, string inverters, central inverters, and voltage frequency drives
Motor control: AC induction, brushed DC, brushless DC, high-voltage, low-voltage, permanent magnet, and stepper motor

Key features

Wide power supply range:
Single supply: 3V to 32V
or dual supplies: ±1.5V to ±16V
Very low supply current drain (500 μA) — essentially independent of supply voltage
Wide bandwidth (unity gain): 1MHz
Low Input Bias Currents
Common Mode Range Extends to Negative Supply
