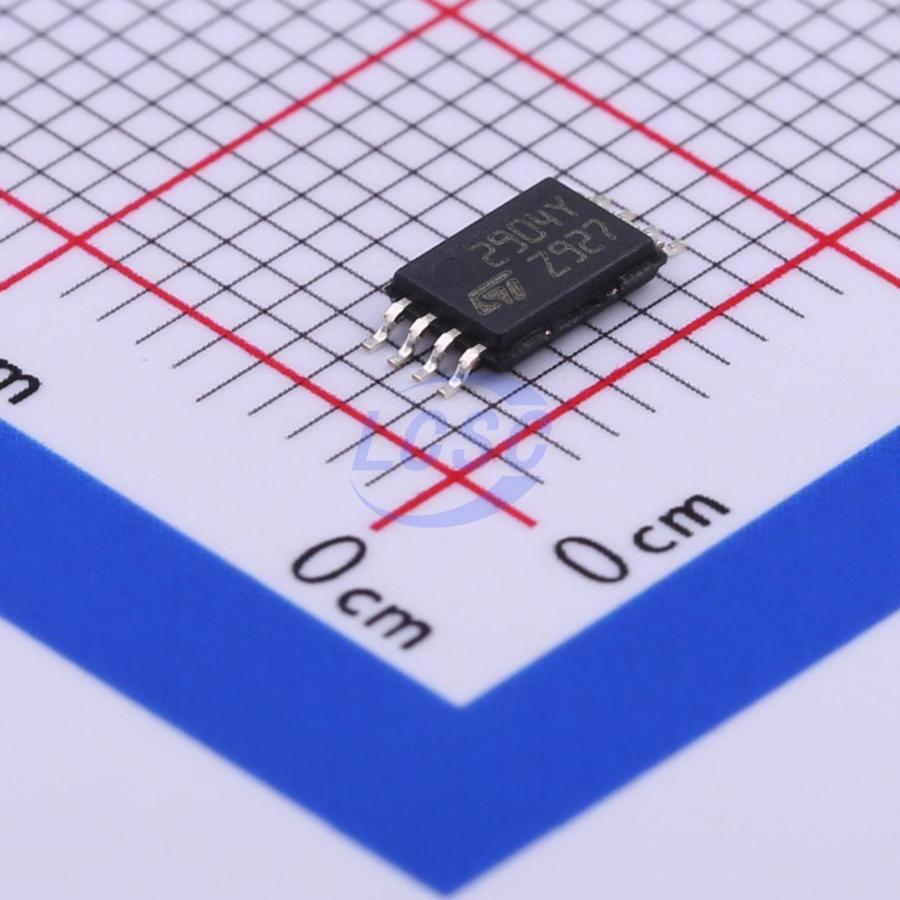

LM2904YPT
60mA 2 2mV 600V/ms 85dB 150nA 1.2mA 1.1MHz TSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-8ROHS3 CompliantActive
Low-power dual operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- LM2904YPT
- Store part #
- C435903
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,605 in stock
#C435903
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.17 | ₹60.85 |
| 50+ | ₹9.50 | ₹475.00 |
| 150+ | ₹8.16 | ₹1,224.00 |
| 500+ | ₹7.16 | ₹3,580.00 |
| 2,500+ | ₹5.81 | ₹14,525.00 |
| 4,000+ | ₹5.41 | ₹21,640.00 |
5 × ₹12.17
₹60.85
excl. GST
₹71.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2904YPT
₹60.85 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 150nA
- Input Offset Voltage Drift(Vos TC)
- 30uV/℃
- Quiescent Current
- 1.2mA
- Gain Bandwidth Product
- 1.1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.131 g
Overview
This circuit consists of two independent, high gain operational amplifiers (op amps) that have frequency compensation implemented internally. They are designed specifically for automotive and industrial control systems. The circuit operates from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage. In linear mode, the input common - mode voltage range includes ground and the output voltage can also swing to ground, even though operated from a single power supply.
Applications
- transducer amplifiers
- DC gain blocks
- all the conventional op amp circuits which can now be more easily implemented in single power supply systems
Key features
- Frequency compensation implemented internally
- Large DC voltage gain: 100 dB
- Wide bandwidth (unity gain): 1.1 MHz (temperature compensated)
- Very low supply current/amplifier, essentially independent of supply voltage
- Low input bias current: 20 nA (temperature compensated)
- Low input offset current: 2 nA
- Input common - mode voltage range includes negative rail
- Differential input voltage range equal to the power supply voltage
- Large output voltage swing 0 to [(VCC +) - 1.5 V]
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM2904TDTR(XBLW)#C42395496XBLW · TSSOP-8 | XBLW | TSSOP-8 | 1,820 | ₹10.53 · 1,820 in stock | View |
 | LM2904PT#C283324ST · TSSOP-8 | ST | TSSOP-8 | 4,395 | ₹27.25 · 4,395 in stock | View |
 | LM2904WYPT#C2970191ST · TSSOP-8 | ST | TSSOP-8 | 245 | ₹44.61 · 245 in stock | View |
 | LM358PT#C97414ST · TSSOP-8 | ST | TSSOP-8 | 6,600 | ₹26.21 · 6,600 in stock | View |
 | LM258WYPT#C2059137ST · TSSOP-8 | ST | TSSOP-8 | 380 | ₹65.89 · 380 in stock | View |
