UTC

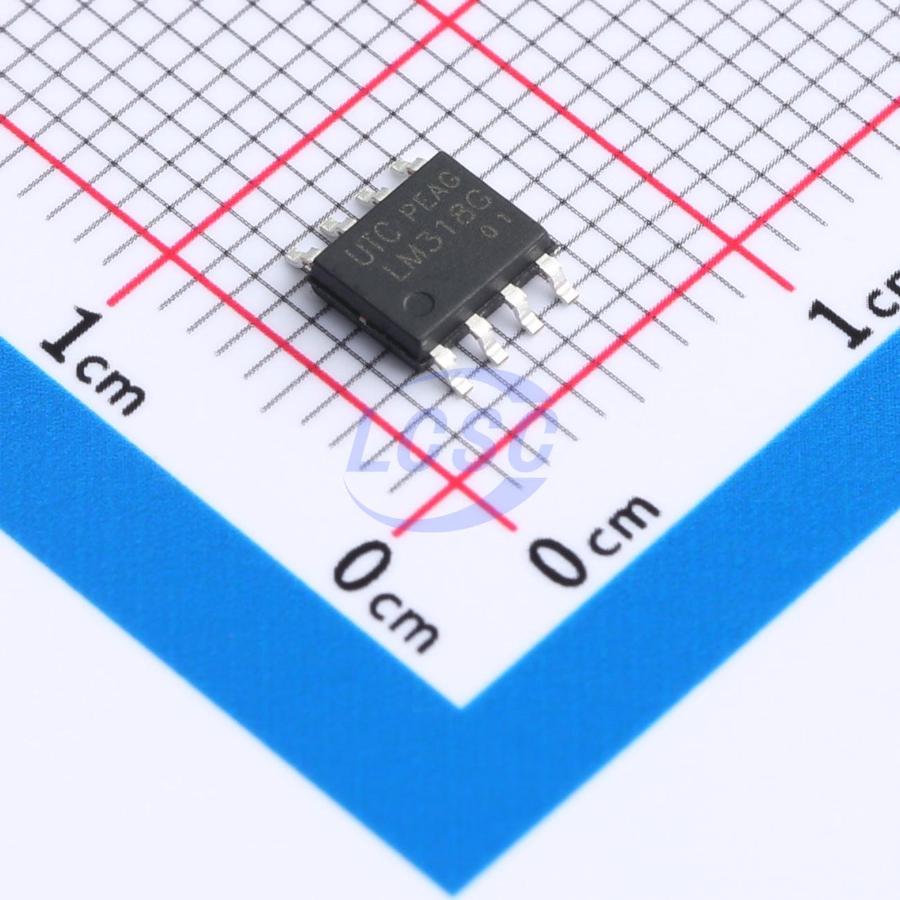

LM318G-S08-R

1 4mV 70V/us 750nA 100dB 15MHz 5mA SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

High-speed operational amplifier

Manufacturer: UTC
Manufacturer part #: LM318G-S08-R
Store part #: C20623800
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,020 in stock

#C20623800

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹24.53	₹122.65
50+	₹19.40	₹970.00
150+	₹17.19	₹2,578.50
500+	₹14.45	₹7,225.00
2,500+	₹13.22	₹33,050.00
5,000+	₹12.49	₹62,450.00

Quantity (min 5, multiples of 5)

5 × ₹24.53

₹122.65

excl. GST

₹144.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM318G-S08-R

₹122.65 for 5 + GST

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 4mV
Slew Rate: 70V/us
Input Offset Current(Ios): 300nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 750nA
Common Mode Rejection Ratio(CMRR): 100dB
Gain Bandwidth Product: 15MHz
Quiescent Current: 5mA
Features: Built-in compensation;Overvoltage protection
Dual Supply: -20V~-5V;5V~20V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.214 g

Overview

The UTC LM318 is a precision, high speed, high gain operational amplifier that has been specifically designed for use in high slew rate and wide bandwidth applications. Unlike many wideband amplifiers, the UTC LM318 is unity-gain stable since it has internal circuitry for frequency compensation. However, external components may be added for compensation to achieve optimum performance. When used in inverting applications, feed-forward compensation can be used to achieve slew rate in excess of 150V/µs and almost double the bandwidth. For greater stability, using overcompensation with the amplifier is possible if maximum bandwidth is not needed. In general, by adding a single capacitor can reduce the settling time for 0.1% error band to under 1µs.

Applications

A/D converters
Fast integrator
Oscillators
Active filters
Sample and hold circuits
General purpose amplifiers

Key features

Unit gain stable (internal frequency compensation)
4mV typical input offset voltage
30nA typical input offset current
Input bias current of 250nA (maximum)
15MHz bandwidth (small signal)
50V/µs slew rate (guarantee)
Operates voltages of ±5V to ±20V
Overload protection for Input and output
Same pin assignment as general-purpose op amps

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LM318MX/NOPB#C128749TI · SOIC-8	TI	SOIC-8	577	₹219.42 · 577 in stock	View
LM318D#C1347395TI · SOIC-8	TI	SOIC-8	47	₹310.38 · 47 in stock	View
LM218IDRG4Q1#C2060545TI · SOIC-8	TI	SOIC-8	5	₹371.55 · 5 in stock	View
AD847ARZ-REEL7#C30779ADI · SOIC-8	ADI	SOIC-8	232	₹1,263.80 · 232 in stock	View
OPA891DR#C22444686TI · SOIC-8	TI	SOIC-8	80	₹485.25 · 80 in stock	View
