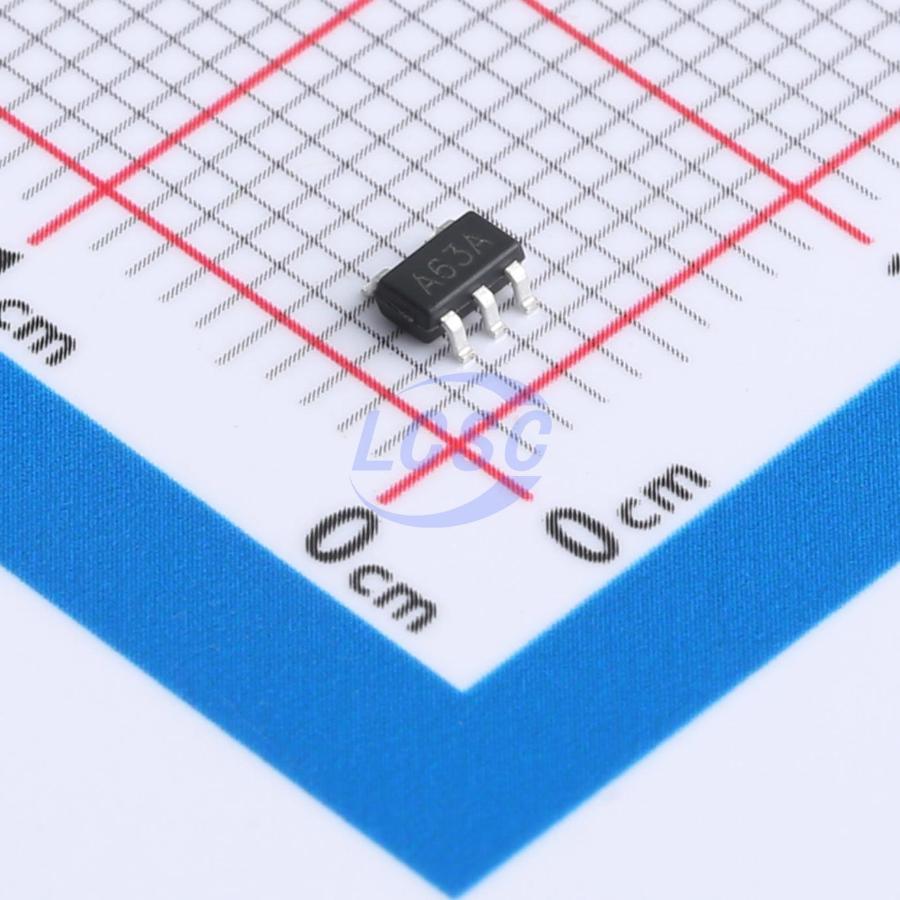

LM321
Standard (General Purpose) Amplifier 1 Circuit SOT-23-5
SOT-23-5RoHSActive
Single-channel output low-power differential operational amplifier
- Manufacturer
- GR
- Manufacturer part #
- LM321
- Store part #
- C18164494
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,540 in stock
#C18164494
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.46 | ₹89.20 |
| 200+ | ₹3.52 | ₹704.00 |
| 600+ | ₹3.00 | ₹1,800.00 |
| 3,000+ | ₹2.69 | ₹8,070.00 |
| 9,000+ | ₹2.41 | ₹21,690.00 |
| 21,000+ | ₹2.26 | ₹47,460.00 |
20 × ₹4.46
₹89.20
excl. GST
₹105.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321
₹89.20 for 20 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 50nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1.2MHz
- Features
- Built-in compensation
- Dual Supply
- -18V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
The LM321 is a single-output, low-power differential operational amplifier capable of operating from either single or dual power supplies. It features high open-loop gain, internal compensation, wide common-mode range, excellent temperature stability, and output short-circuit protection. Suitable for sensor amplifier circuits, DC amplifier modules, audio amplifier circuits, and conventional op-amp circuit applications.
Applications
- Sensor signal amplifier
- Audio amplifier
- DC gain
Key features
- Single supply voltage range: 3V~36V
- Output short-circuit protection
- Dual supply voltage range: ±18V
- Low power consumption: 0.5mA @ V+=5V
- Unity-gain bandwidth: up to 1.2MHz
- Package: SOT23-5
