YONGYUTAIDatasheet (PDF)

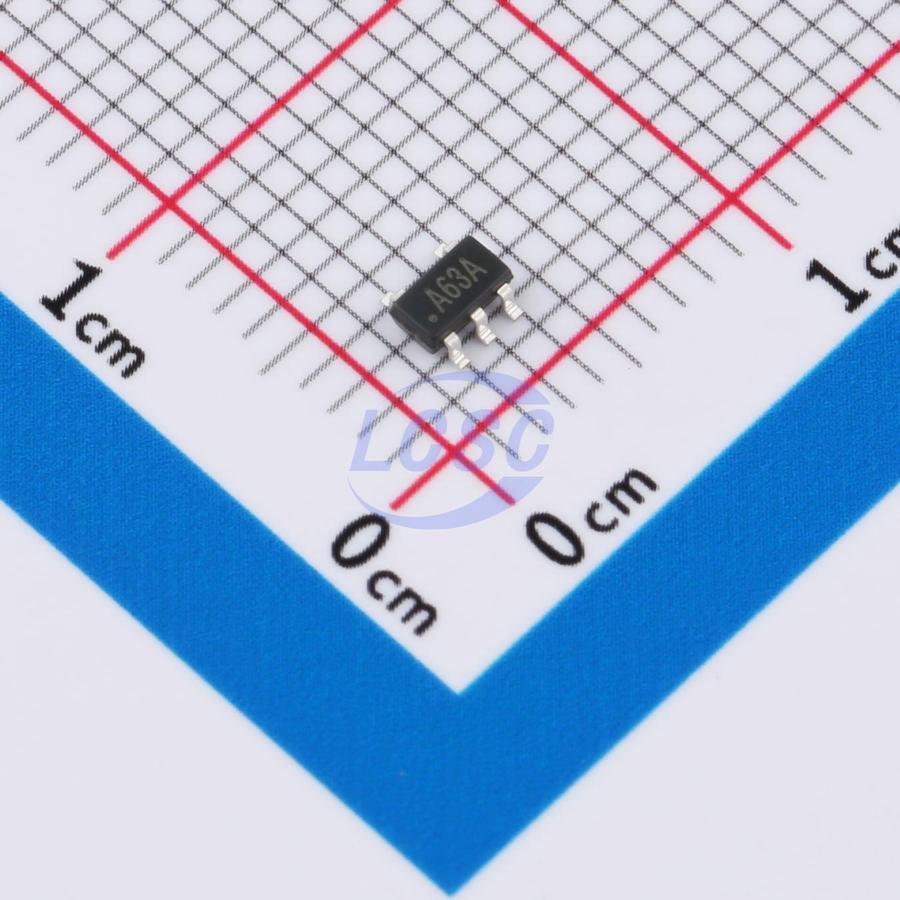

LM321
40mA 1 2mV 400V/ms 90dB 45nA 500uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- LM321
- Store part #
- C50917814
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,360 in stock
#C50917814
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.86 | ₹97.20 |
| 200+ | ₹3.81 | ₹762.00 |
| 600+ | ₹3.29 | ₹1,974.00 |
| 3,000+ | ₹2.90 | ₹8,700.00 |
| 9,000+ | ₹2.59 | ₹23,310.00 |
| 21,000+ | ₹2.43 | ₹51,030.00 |
20 × ₹4.86
₹97.20
excl. GST
₹114.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321
₹97.20 for 20 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 45nA
- Quiescent Current
- 500uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.038 g
Overview
LM321 brings performance and economy to low-power systems. With a high unity-gain bandwidth and a guaranteed slew rate of 0.4 V/μs, the quiescent current is only 430 μA (at 5V). The input common-mode range includes ground, enabling the device to operate in both single-supply and dual-supply applications. It is also capable of comfortably driving large capacitive loads. The LM321 is available in a SOT-23-5 package. Overall, the LM321 is a low-power, wide supply range performance op-amp that can be designed into a wide variety of applications at an economical price without sacrificing valuable board space.
Applications
- Charger
- Power Supply
- Industrial Control
- Desktop
- Communication Infrastructure
Key features
- Gain-bandwidth product
- Low quiescent current
- Low input bias current
- Wide supply voltage range
- Stable with high capacitive loads
