PJSEMI

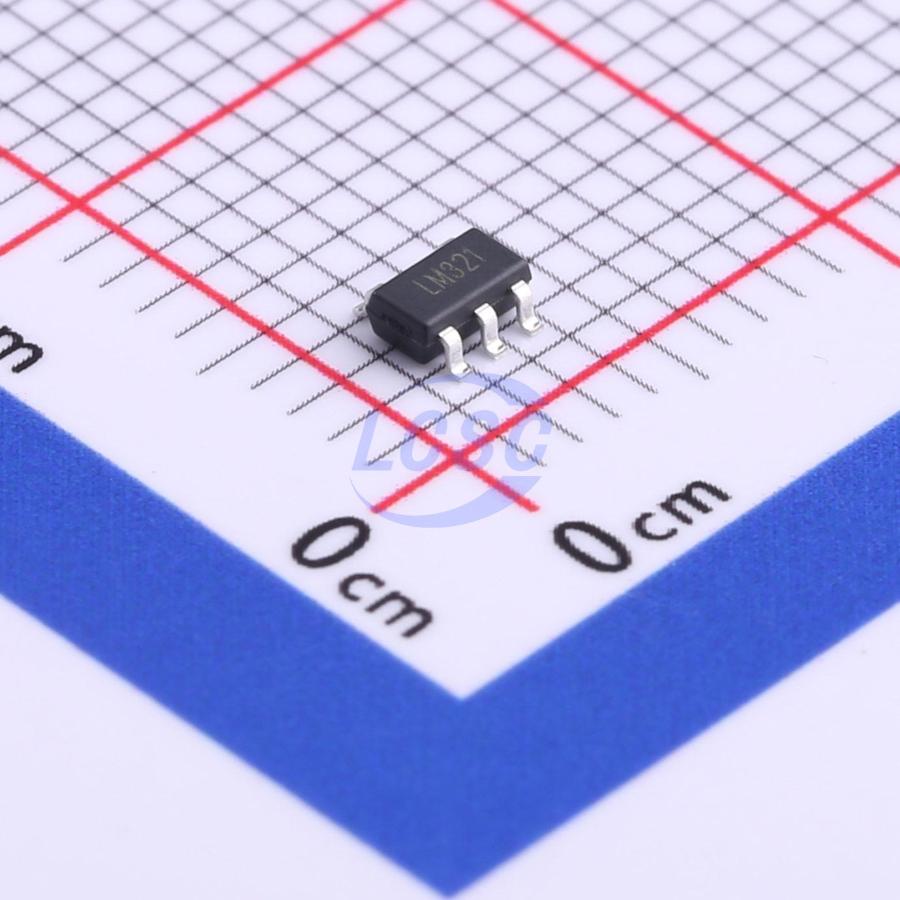

LM321

40mA 1 2mV 400V/ms 90dB 45nA 430uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Low Power Single Operational Amplifier

Manufacturer: PJSEMI
Manufacturer part #: LM321
Store part #: C686636
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14,960 in stock

#C686636

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
20+	₹8.86	₹177.20
200+	₹7.16	₹1,432.00
600+	₹6.31	₹3,786.00
3,000+	₹5.12	₹15,360.00
9,000+	₹4.62	₹41,580.00
21,000+	₹4.37	₹91,770.00

Quantity (min 20, multiples of 20)

20 × ₹8.86

₹177.20

excl. GST

₹209.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM321

₹177.20 for 20 + GST

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 2mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 3nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 45nA
Quiescent Current: 430uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.037 g

Overview

LM321 is a low power, wide power range performance operational amplifier; The static current is only 430 μA per amplifier (5V) with high unit gain frequency and A voltage swing rate of 0.4 V/μs. Input common model circuit includes ground, so the device can operate in single - and dual-power applications.lt can also comfortably drive large capacity loads.
