3PEAKDatasheet (PDF)

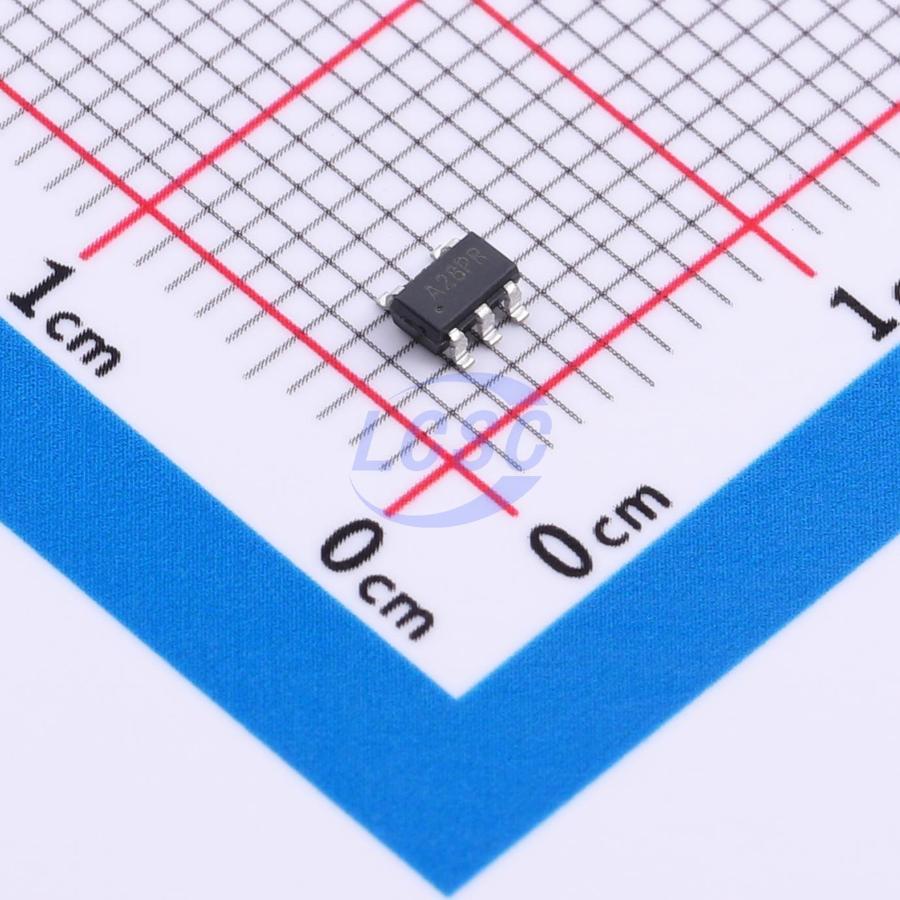

LM321AW-S5TR
30mA 100uV 500V/ms 60pA 120dB 150uA 900kHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- LM321AW-S5TR
- Store part #
- C22419377
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,100 in stock
#C22419377
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.75 | ₹127.50 |
| 100+ | ₹9.86 | ₹986.00 |
| 300+ | ₹8.41 | ₹2,523.00 |
| 3,000+ | ₹7.33 | ₹21,990.00 |
| 6,000+ | ₹6.47 | ₹38,820.00 |
| 9,000+ | ₹6.03 | ₹54,270.00 |
10 × ₹12.75
₹127.50
excl. GST
₹150.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321AW-S5TR
₹127.50 for 10 + GST
Specifications
- Output Current
- 30mA
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 60pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 60pA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 150uA
- Gain Bandwidth Product
- 900kHz
- Input Voltage Noise Density
- 70nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Overview
The LM321A/358A/324A series amplifiers are the latest high-supply-voltage amplifiers featuring low offset, low power consumption, and stable frequency response characteristics. Employing proprietary design techniques, they achieve excellent AC performance — including 0.9MHz bandwidth, 0.5V/μs slew rate, and a maximum 3mV offset voltage — while consuming only 100μA quiescent current per channel. The input common-mode voltage range extends to V−, and the output swings rail-to-rail. These amplifiers serve as drop-in replacements for many commercial op-amps, reducing power consumption and improving input/output range and performance. This combination of features makes them ideal for power modules, industrial control, motor control, and audio applications.
Applications
- Power modules
- Sensor interfaces
- Motor control
- Audio
Key features
- Supply voltage: 3V ~ 36V
- Low supply current: 100μA per channel
- Input common-mode voltage range includes ground
- Can be used as comparator
- Rail-to-rail output
- Bandwidth: 0.9 MHz
- Slew rate: 0.5 V/μs
- Excellent EMI rejection: 71dB at 1GHz
- Offset voltage: ±3mV max
- Offset voltage temperature drift: 7 μV/℃
- Operating temperature range: -40℃ ~ 125℃
