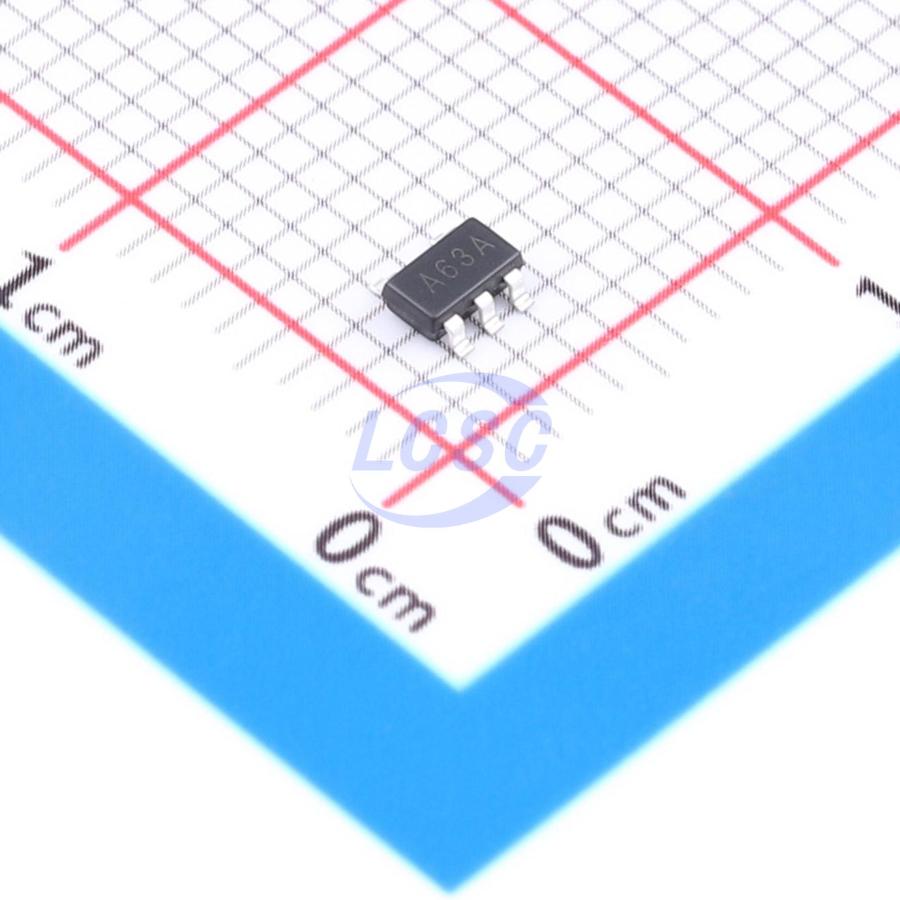

LM321LT05ABRCQ

40mA 1 500uV 30nA 85dB 400uA 4MHz SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: GR
Manufacturer part #: LM321LT05ABRCQ
Store part #: C53413338
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,220 in stock

#C53413338

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
20+	₹3.23	₹64.60
200+	₹2.53	₹506.00
600+	₹2.14	₹1,284.00
3,000+	₹1.91	₹5,730.00
9,000+	₹1.71	₹15,390.00
21,000+	₹1.59	₹33,390.00

Quantity (min 20, multiples of 20)

20 × ₹3.23

₹64.60

excl. GST

₹76.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM321LT05ABRCQ

₹64.60 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Input Offset Current(Ios): 10nA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 30nA
Common Mode Rejection Ratio(CMRR): 85dB
Quiescent Current: 400uA
Gain Bandwidth Product: 4MHz
Single Supply: 3V~30V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 1 g

Overview

The LM321 delivers high performance and cost efficiency for low-power systems. Quiescent current is only 400μA per amplifier (5V). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. The LM321 is available in the SOT-23 package. Overall, the LM321 is a low-power, wide supply range, high-performance op amp that can be designed into a wide range of applications at an economical price without consuming valuable board space.
