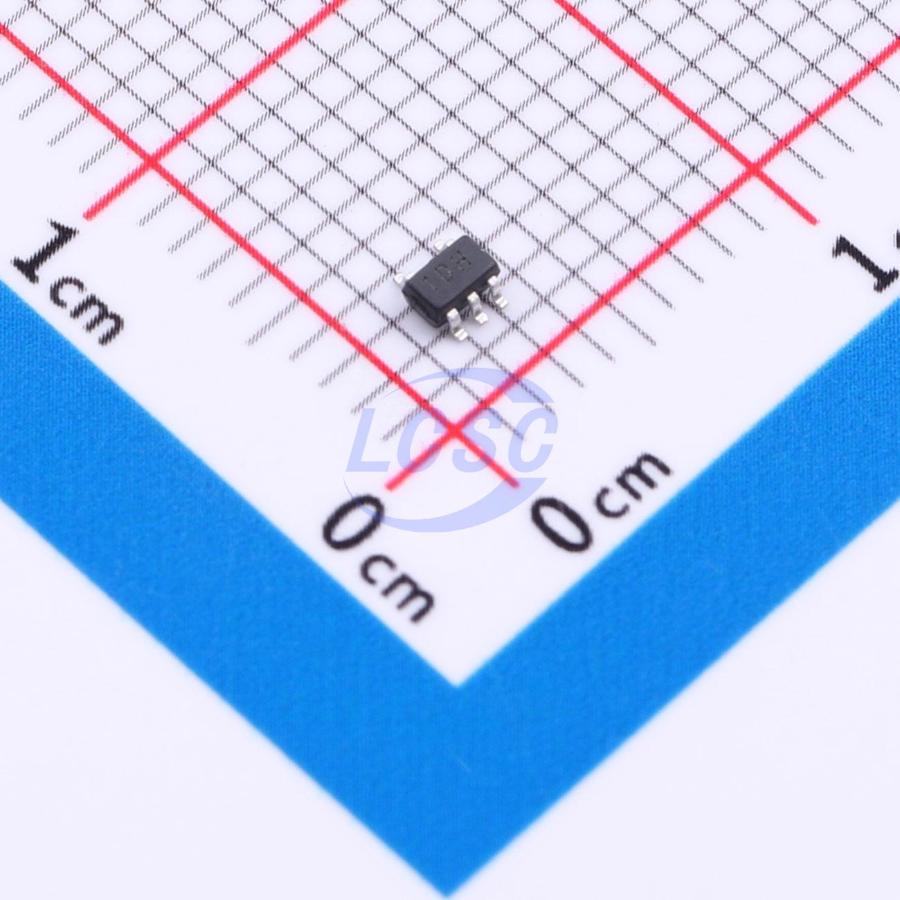

LM321LVM7/TR
30mA 1 5mV 500V/ms 84dB 62pA 45uA Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps
SC-70-5RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM321LVM7/TR
- Store part #
- C42400741
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,680 in stock
#C42400741
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.50 | ₹52.50 |
| 50+ | ₹8.35 | ₹417.50 |
| 150+ | ₹7.26 | ₹1,089.00 |
| 500+ | ₹6.46 | ₹3,230.00 |
| 3,000+ | ₹5.81 | ₹17,430.00 |
| 6,000+ | ₹5.49 | ₹32,940.00 |
5 × ₹10.50
₹52.50
excl. GST
₹61.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321LVM7/TR
₹52.50 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 500V/ms
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 84dB
- Ib - Input Bias Current
- 62pA
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 45uA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.073 g
Overview
LM321LV (single), LM358LV (dual), and LM324LV (quad) are rail-to-rail input, voltage feedback output, low-power operational amplifiers. They feature a wide input common-mode voltage range and output swing; minimum operating voltage down to 2.1V, with a recommended maximum operating voltage of 5.5V. The LM3xxLV delivers a 1.1MHz gain-bandwidth product at approximately 45μA quiescent current per amplifier. With ultra-low input bias current (typically ~10pA), it is suitable for integration in photodiode amplifier and piezoelectric sensor applications. The rail-to-rail input and output buffer is also used for specific IC designs in single-supply systems. Applications for this amplifier series include security monitoring, portable devices, battery and power supply control, and signal processing and interfacing in low-power sensor systems.
Applications
- ASIC input and output op-amps
- Sensor interface
- Piezoelectric sensor amplifier
- Medical devices
- Mobile communications
- Audio output
- Portable systems
- Smoke detectors, laptops, PCMCIA cards
- Battery-powered devices
- DSP interface
Key features
- Low power consumption
- Rail-to-rail input and output, typical Vos of 0.8mV
- Unity-gain stable
- Gain bandwidth product 1.1MHz
- Low input bias current: 10pA level, <1nA
- 2.1V~5.5V operating voltage
- Low operating current: 45uA per channel
