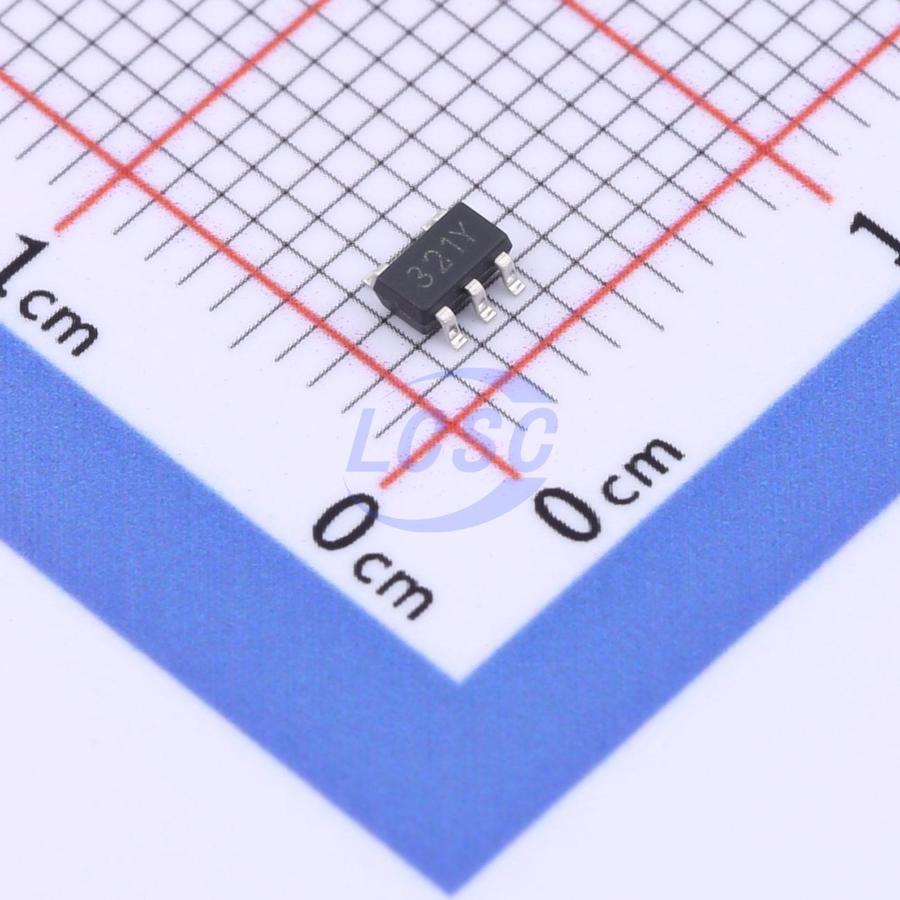

LM321MFX
20mA 1 11mV 250nA 80dB 700uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
Low Power Single Operational Amplifier
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM321MFX
- Store part #
- C3011196
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,335 in stock
#C3011196
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.82 | ₹79.10 |
| 50+ | ₹12.61 | ₹630.50 |
| 150+ | ₹11.01 | ₹1,651.50 |
| 500+ | ₹9.80 | ₹4,900.00 |
| 3,000+ | ₹8.59 | ₹25,770.00 |
| 6,000+ | ₹8.11 | ₹48,660.00 |
5 × ₹15.82
₹79.10
excl. GST
₹93.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321MFX
₹79.10 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 11mV
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 250nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 50uV/℃
- Quiescent Current
- 700uA
- Features
- Built-in compensation
- Dual Supply
- -20V~20V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
frequency-compensated operational amplifiers designed operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3V to 36V, and VCC is at least 1.5V more positive than the input common-mode voltage, the low supply-current drain is independent of the magnitude of the power supply voltage.
Applications
- Multivibrators
- Oscillators
- Switcching Telephone
- Portable Systems
Key features
- One internally compensated OP amps
- Wide power supply range: 3V to 36V
- Large output voltage swing: 0V to Vcc-1.5V
- Low input bias current
- Low input offset voltage and offset current
- Internally frequency compensated for unity gain
- Short Circuit Protected Outputs
- Input common-mode voltage range includes ground
- SOT-23-5L package s
