JSMSEMIDatasheet (PDF)

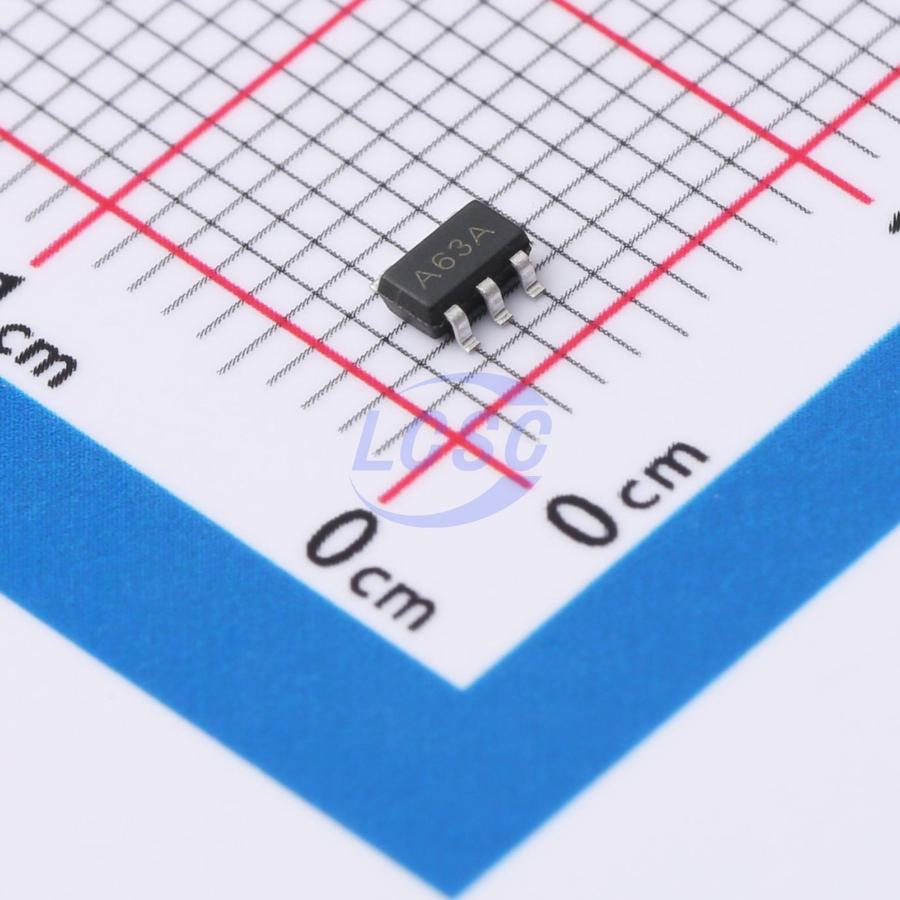

LM321MFX-JSM
Standard (General Purpose) Amplifier 1 Circuit SOT-23-5
SOT-23-5ROHS CompliantActive
Low-power single operational amplifier
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM321MFX-JSM
- Store part #
- C5189726
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,140 in stock
#C5189726
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.25 | ₹105.00 |
| 200+ | ₹4.18 | ₹836.00 |
| 600+ | ₹3.65 | ₹2,190.00 |
| 3,000+ | ₹3.00 | ₹9,000.00 |
| 9,000+ | ₹2.69 | ₹24,210.00 |
| 21,000+ | ₹2.51 | ₹52,710.00 |
20 × ₹5.25
₹105.00
excl. GST
₹123.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321MFX-JSM
₹105.00 for 20 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 250nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Quiescent Current
- 430uA
- Dual Supply
- -12V~12V
- Single Supply
- 5V~24V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Overview
The LM321MFX delivers performance and economy for low-power systems. With a high unity-gain bandwidth and a guaranteed slew rate of 0.4 V/μs, quiescent current is only 430 μA/amplifier (5V). The input common-mode range includes ground, enabling the device to operate in both single-supply and dual-supply applications. It is also capable of comfortably driving large capacitive loads. The LM321MFX is available in a SOT23-5 package. Overall, the LM321MFX is a low-power, wide supply range performance op-amp that can be designed into a wide variety of applications at an economical price without sacrificing valuable board space.
Applications
- Charger
- Power Supply
- Industrial: Control, Instrumentation
- Desktop
- Communication Infrastructure
Key features
- Gain-bandwidth product
- Low quiescent current
- Low input bias current
- Wide supply voltage range
- Stable with high capacitive loads
