JSCJDatasheet (PDF)
LM324
35mA 4 2mV 500V/ms 45nA 85dB 500uA SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive

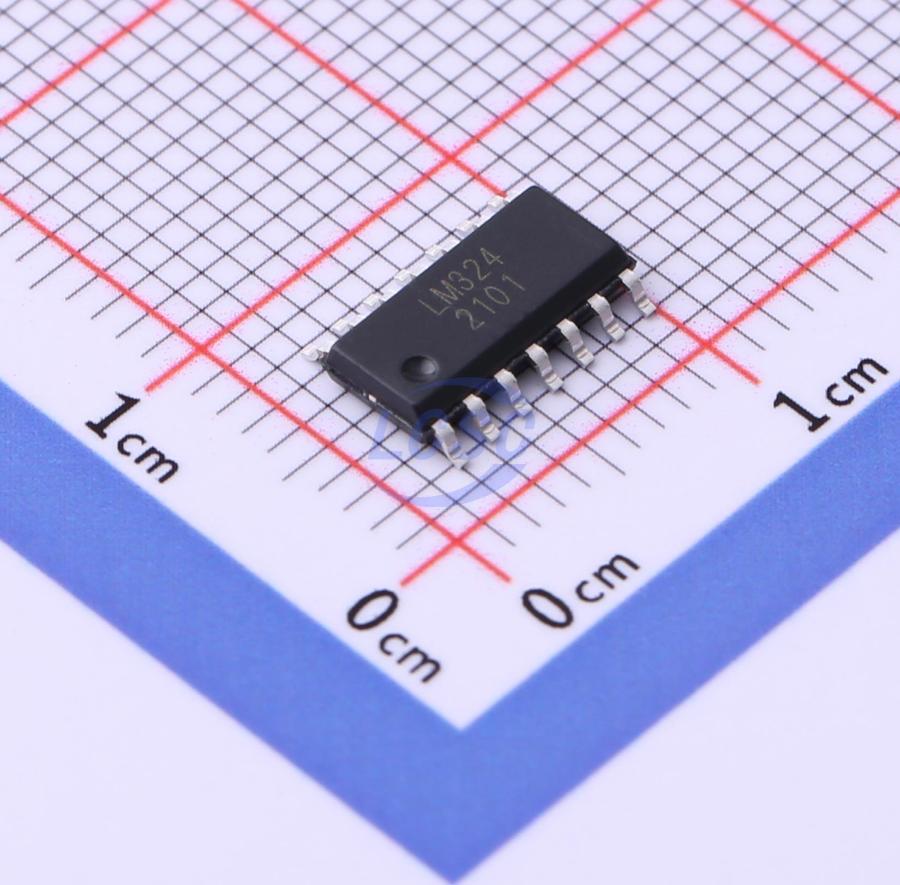

SOP14 Plastic-Encapsulate Operational Amplifiers, Low Power Quad Operational Amplifier
- Manufacturer
- JSCJ
- Manufacturer part #
- LM324
- Store part #
- C2829425
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,810 in stock
#C2829425
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.35 | ₹111.75 |
| 50+ | ₹18.26 | ₹913.00 |
| 150+ | ₹16.22 | ₹2,433.00 |
| 500+ | ₹14.69 | ₹7,345.00 |
| 2,500+ | ₹12.61 | ₹31,525.00 |
| 5,000+ | ₹12.00 | ₹60,000.00 |
5 × ₹22.35
₹111.75
excl. GST
₹131.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM324
₹111.75 for 5 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 45nA
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Quiescent Current
- 500uA
- Features
- Built-in compensation
- Dual Supply
- -15V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
The LM324 consists of four independent, high gain and internally frequency compensated operational amplifiers, it is specifically designed to operate from a single power supply. Operation from split power supply is also possible and the low power supply current drain is independent of the magnitude of the power supply voltages.
Applications
- Battery Charger
- Cordless Telephone
- Switching Power Supply
Key features
- Internally Frequency Compensated for Unity Gain
- Large Voltage Gain: 100dB (Typical)
- Low Input Bias Current: 45nA (Typical)
- Low Input Offset Voltage: 2mV (Typical)
- Low Supply Current: 0.5mA (Typical)
- Wide Power Supply Voltage Range:
- Single Supply: 3V to 30V
- Dual Supplies: ± 1.5V to ± 15V
- Input Common Mode Voltage Range Includes Ground
- Large Output Voltage Swing: 0V to VCC - 1.5V
- Power Drain Suitable for Battery Operation
