HXY MOSFET

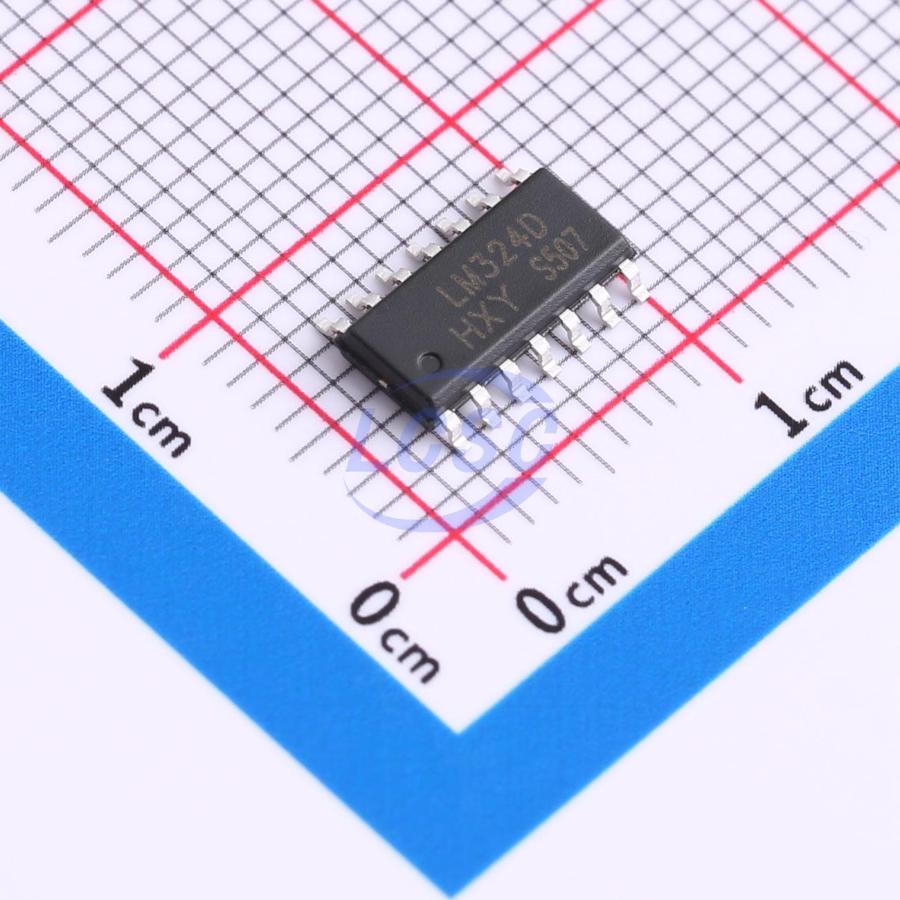

LM324

Standard (General Purpose) Amplifier 4 Circuit SOP-14

SOP-14ROHS CompliantActive

Quad operational amplifier integrated circuit

Manufacturer: HXY MOSFET
Manufacturer part #: LM324
Store part #: C6851437
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

18,620 in stock

#C6851437

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.35	₹56.75
50+	₹9.37	₹468.50
150+	₹8.37	₹1,255.50
500+	₹7.63	₹3,815.00
2,500+	₹6.03	₹15,075.00
5,000+	₹5.73	₹28,650.00

Quantity (min 5, multiples of 5)

5 × ₹11.35

₹56.75

excl. GST

₹66.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM324

₹56.75 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 7mV
Input Offset Current(Ios): 50nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 250nA
Quiescent Current: 700uA
Dual Supply: -1.5V~10V
Single Supply: 3V~20V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.272 g

Overview

High-performance quad independent operational amplifier with internal phase compensation circuitry. Suitable for use in tape recorders and tone control systems as tone equalization networks, as well as other applications. Available in SOP14 (SOIC-14) / DIP14 plastic package.

Key features

No external phase compensation circuit required
Wide supply voltage range: single supply Vcc = 3 ~ 20 V, dual supply Vcc = ±1.5 V ~ 10 V
Low supply current: Icc = 0.7 mA (typ.) (RL = ∞)
Input voltage range extends close to ground level
