DOWO

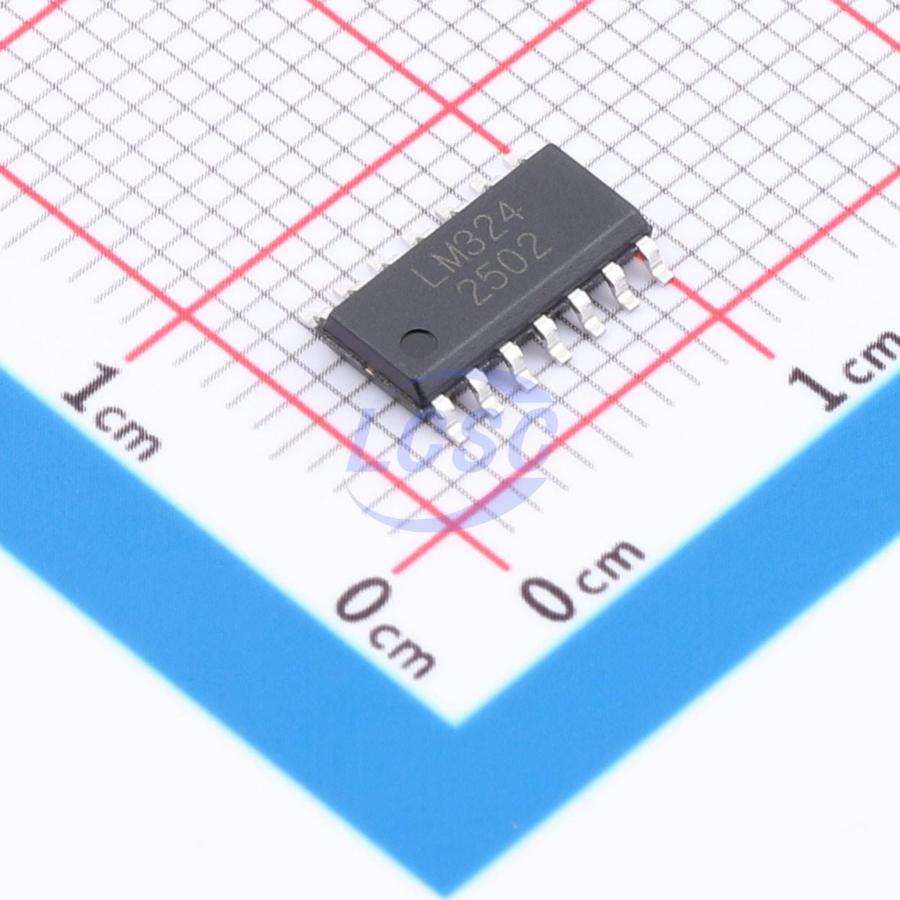

LM324-DW

Standard (General Purpose) Amplifier 4 Circuit SOP-14

SOP-14ROHS CompliantActive

IC OPAMP GP 4 CIRCUIT SOP-14

Manufacturer: DOWO
Manufacturer part #: LM324-DW
Store part #: C47355689
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,375 in stock

#C47355689

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.13	₹70.65
50+	₹11.13	₹556.50
150+	₹9.63	₹1,444.50
500+	₹8.51	₹4,255.00
2,500+	₹7.79	₹19,475.00
5,000+	₹7.34	₹36,700.00

Quantity (min 5, multiples of 5)

5 × ₹14.13

₹70.65

excl. GST

₹83.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM324-DW

₹70.65 for 5 + GST

Specifications

Output Current: 35mA
Number of Channels: 4
Vos - Input Offset Voltage: 2mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10nA
Operating Temperature: -20℃~+85℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 50nA
Quiescent Current: 800uA
Gain Bandwidth Product: 1.2MHz
Features: Built-in compensation
Dual Supply: -16V~-1.5V;1.5V~16V
Single Supply: 3V~32V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.267 g

Overview

The LM324 is a quad low-power differential operational amplifier supporting single or dual supply operation. The device features high open-loop gain, internal frequency compensation, wide common-mode input range, good temperature stability, and output short-circuit protection. Operating voltage range spans from 3.0V to 32V. The common-mode input range includes the negative supply voltage, eliminating the need for external biasing circuits. The output voltage range also includes the negative supply voltage. The device is available in SOP14 and DIP14 packages.
