UMWDatasheet (PDF)

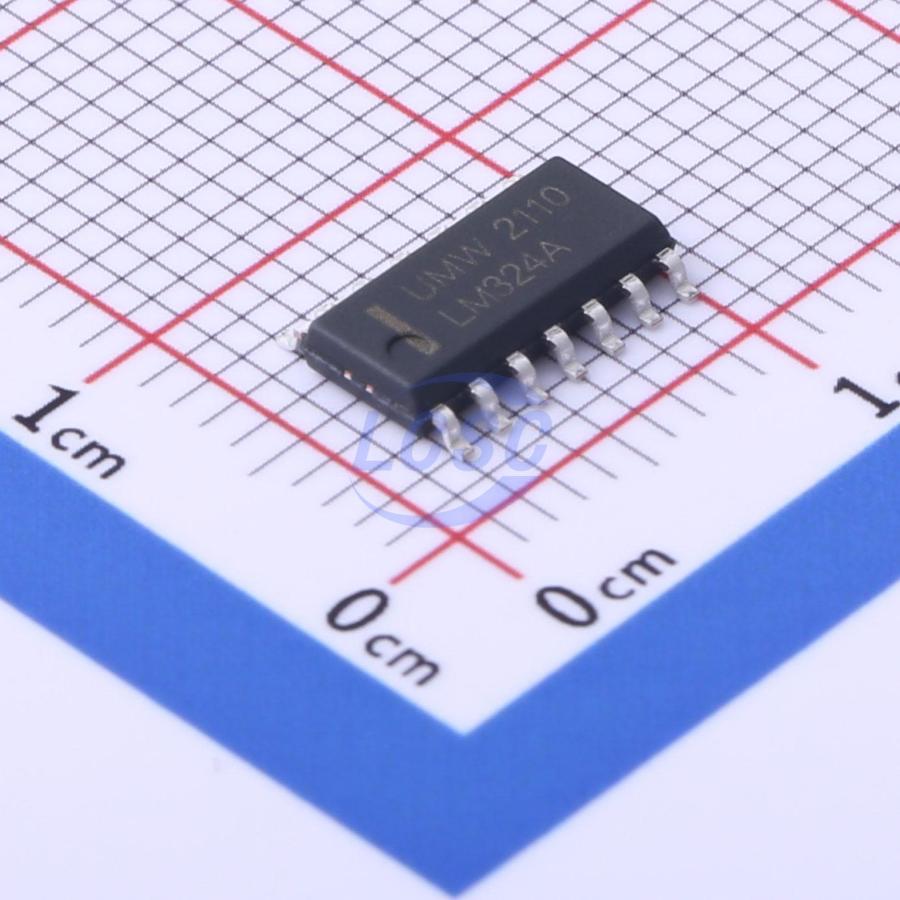

LM324ADR
30mA 4 3mV 80dB 20nA 1.1mA SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS3 CompliantActive
Quadruple Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- LM324ADR
- Store part #
- C2837469
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48,945 in stock
#C2837469
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.11 | ₹80.55 |
| 50+ | ₹12.69 | ₹634.50 |
| 150+ | ₹10.97 | ₹1,645.50 |
| 500+ | ₹9.68 | ₹4,840.00 |
| 2,500+ | ₹7.66 | ₹19,150.00 |
| 5,000+ | ₹7.14 | ₹35,700.00 |
5 × ₹16.11
₹80.55
excl. GST
₹95.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM324ADR
₹80.55 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 1.1mA
- Single Supply
- 5V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.282 g
Overview
UMW LM324 contains four independent, high-gain, internally frequency-compensated op-amps designed to operate from a single supply over a wide voltage range. Split supply operation is also supported, with low supply current drain independent of the supply voltage magnitude.
Applications
- Transducer amplifiers
- DC gain blocks
- All standard op-amp circuits
Key features
- Wide supply voltage range
- Low supply current consumption, independent of supply voltage
- Low input bias current
- Low input offset voltage and offset current
- Input common-mode voltage range includes ground potential
- Differential input voltage range equal to supply voltage
- Typical DC voltage gain of 100 V/mV
- Internal frequency compensation
