HGSEMIDatasheet (PDF)

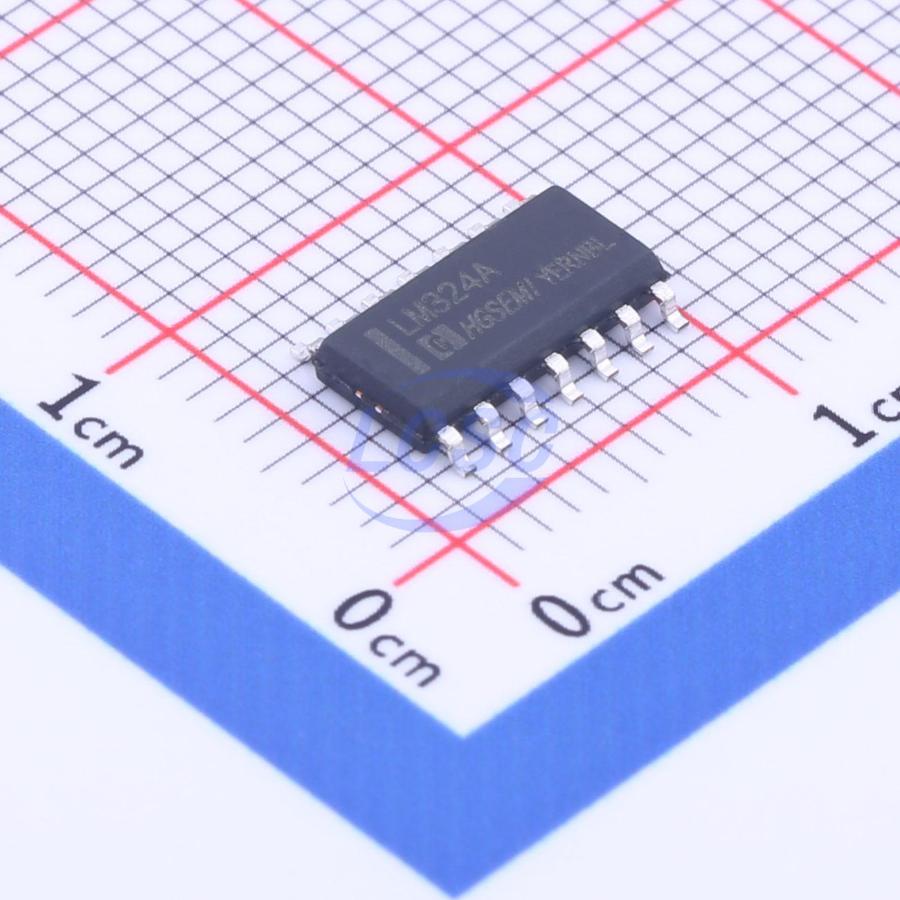

LM324AM/TR
30mA 4 9mV 20nA 80dB 1.1mA SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
Quadruple Operational Amplifiers
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM324AM/TR
- Store part #
- C2688471
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,060 in stock
#C2688471
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.55 | ₹67.75 |
| 50+ | ₹10.64 | ₹532.00 |
| 150+ | ₹9.17 | ₹1,375.50 |
| 500+ | ₹8.07 | ₹4,035.00 |
| 2,500+ | ₹7.45 | ₹18,625.00 |
| 5,000+ | ₹7.00 | ₹35,000.00 |
5 × ₹13.55
₹67.75
excl. GST
₹79.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM324AM/TR
₹67.75 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 9mV
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 20nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 1.1mA
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 5V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.383 g
Overview
This circuit is a high-performance device featuring four independent op-amps with built-in phase compensation circuitry, suitable for use as tone equalization networks in tape recorders and tone control systems, as well as other applications. Available in 14-lead DIP14 plastic package with a power dissipation of 720mW, and in SMD SOP14/TSSOP-14/QSOP-16/QFN-16 packages with a power dissipation of 400mW.
Key features
- No external phase compensation circuit required
- Wide supply voltage range: Single supply Vcc = 3~32V, Dual supply Vcc = ±1.5V~16V
- Low supply current: Icc = 0.6mA (typ.) (RL = ∞)
- Input voltage range extends close to ground level
- QFN-16 3×3
