XBLWDatasheet (PDF)

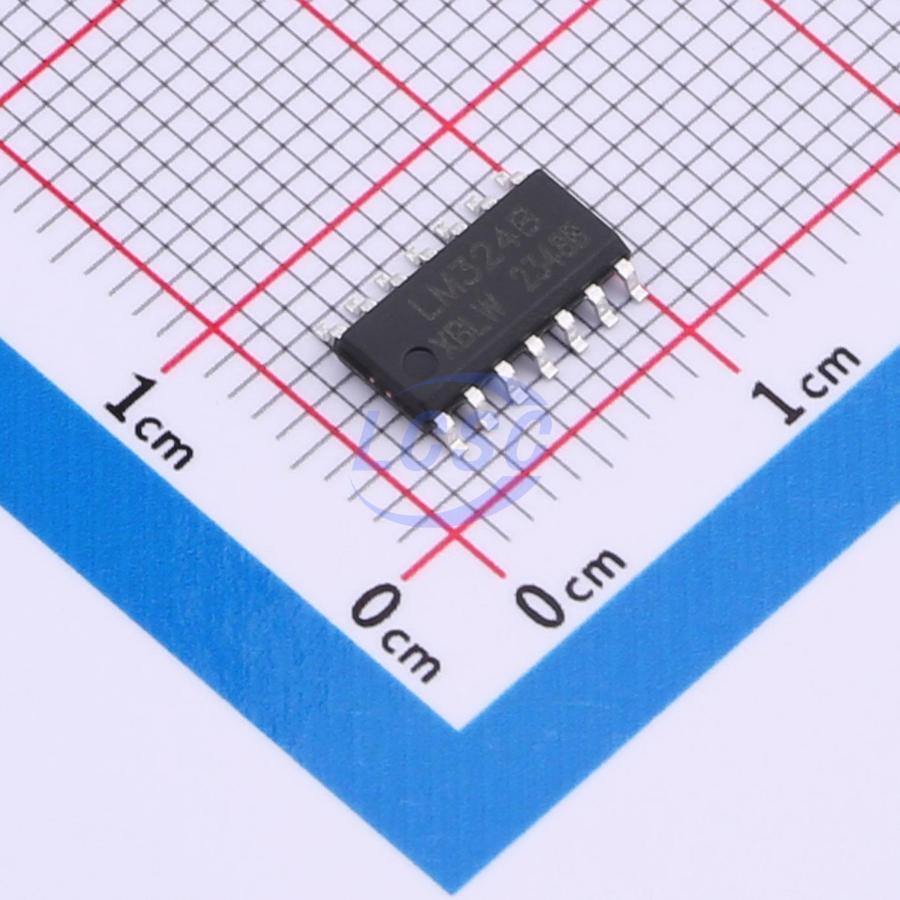

LM324BDTR(XBLW)
40mA 4 5mV 80dB 45nA 600uA SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
Quad Operational Amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- LM324BDTR(XBLW)
- Store part #
- C20612520
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,185 in stock
#C20612520
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.58 | ₹62.90 |
| 50+ | ₹9.99 | ₹499.50 |
| 150+ | ₹8.71 | ₹1,306.50 |
| 500+ | ₹7.73 | ₹3,865.00 |
| 2,500+ | ₹6.96 | ₹17,400.00 |
| 5,000+ | ₹6.58 | ₹32,900.00 |
5 × ₹12.58
₹62.90
excl. GST
₹74.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM324BDTR(XBLW)
₹62.90 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5mV
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 45nA
- Quiescent Current
- 600uA
- Features
- Built-in compensation
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.266 g
Overview
The LM324B consists of four independent, high gain operational amplifiers with frequency compensation implemented internally. It suits for radio recorders and audio systems as tone equalization network and also used in other situations. The chip is available in DIP 14 (Power Dissipation : 720mW) and SOP 14 plastic package(Power Dissipation : 400mW).
Applications
- Transducer Amplifiers
- DC Gain Blocks
- Conventional Op Amp Circuits
Key features
- No External Phase Compensation Circuit Required
- Supply Voltage Range: Single Power Supply: Vcc = 3 - 32V; Dual Power Supply: Vcc = ±1.5V ~ 16V
- Low Power Consumption: Icc = 0.6mA (typical) (RL = ∞)
- Input Voltage Range Close To Ground Level
