HANSCHIP semiconductorDatasheet (PDF)

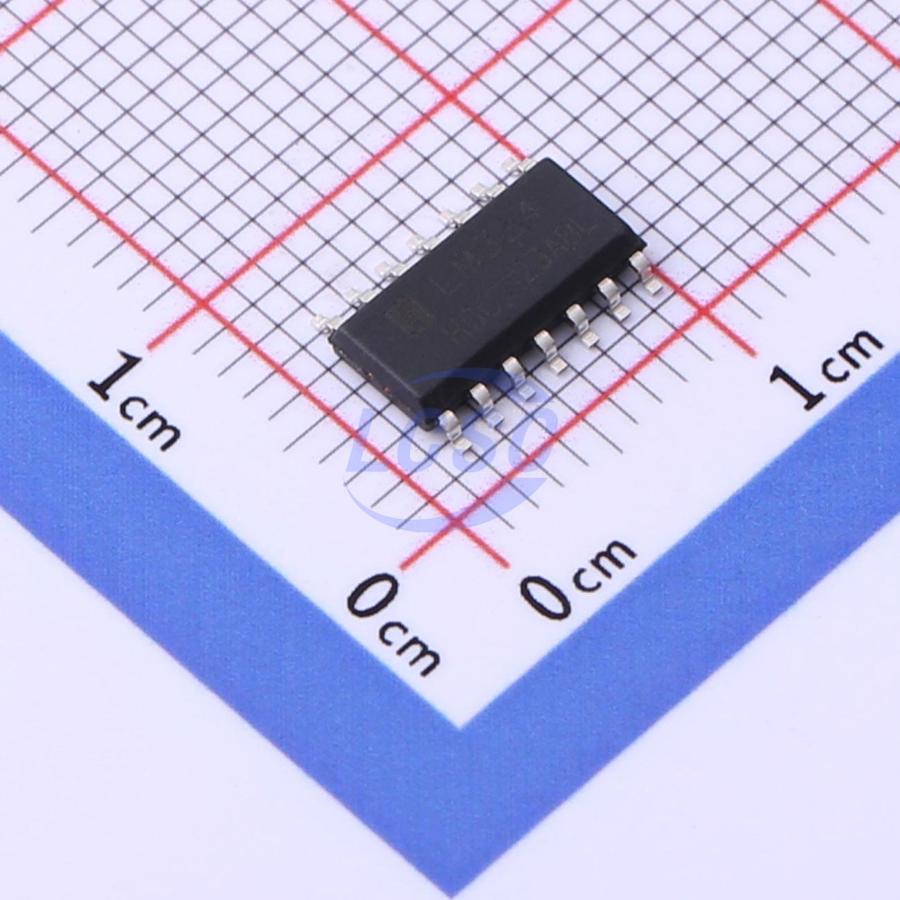

LM324CDRG
Standard (General Purpose) Amplifier 4 Circuit SOP-14
SOP-14ROHS CompliantActive
Quad operational amplifier integrated circuit
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM324CDRG
- Store part #
- C2977086
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,640 in stock
#C2977086
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.05 | ₹90.50 |
| 100+ | ₹7.12 | ₹712.00 |
| 300+ | ₹6.15 | ₹1,845.00 |
| 2,500+ | ₹5.42 | ₹13,550.00 |
| 5,000+ | ₹4.84 | ₹24,200.00 |
| 10,000+ | ₹4.55 | ₹45,500.00 |
10 × ₹9.05
₹90.50
excl. GST
₹106.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM324CDRG
₹90.50 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5mV
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 45nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current
- 600uA
- Dual Supply
- -15V~-1.5V;1.5V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.289 g
Overview
This product is a high-performance quad operational amplifier IC with internally integrated phase compensation circuitry. It is suitable for tone equalization networks in tape recorders and tone systems, as well as other applications. The device offers multiple package options, including a 14-pin DIP-14 with a power dissipation of 720mW, and surface mount packages such as SOP-14, TSSOP-14, QSOP-16, and QFN-16 (3×3mm) with a power dissipation of 400mW. This product is not authorized for use in life support or similar applications, and is neither intended nor warranted for use in systems where a malfunction could result in personal injury or significant property damage. Such use is considered unsafe, and the associated risks and liabilities shall be borne solely by the user.
Key features
- No external phase compensation circuit required
- Wide supply voltage range: 3V ~ 32V single supply, ±1.5V ~ ±16V dual supply
- Low quiescent current: 0.6mA typical (RL=∞)
- Input voltage range extends down to near ground level
