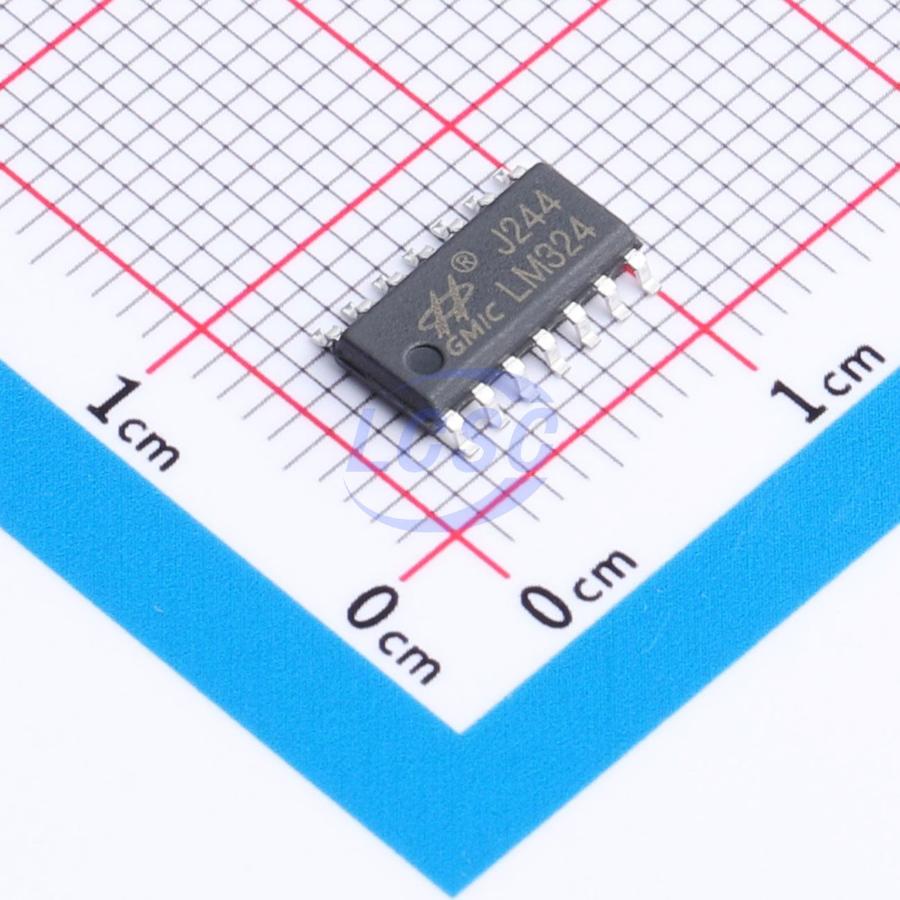

LM324DR244
40mA 4 2mV 400V/ms 75dB 40nA 600uA SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- LM324DR244
- Store part #
- C51026324
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,820 in stock
#C51026324
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.26 | ₹72.60 |
| 100+ | ₹5.77 | ₹577.00 |
| 300+ | ₹5.01 | ₹1,503.00 |
| 2,500+ | ₹4.46 | ₹11,150.00 |
| 5,000+ | ₹4.01 | ₹20,050.00 |
| 10,000+ | ₹3.80 | ₹38,000.00 |
10 × ₹7.26
₹72.60
excl. GST
₹85.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM324DR244
₹72.60 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 40nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 600uA
- Dual Supply
- -15V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.275 g
Overview
The LM324 contains four independent, high-gain, internally frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. The device can also operate from split supplies as long as the voltage difference between the two supplies is between 3V and 30V. Application areas include transducer amplifiers, DC gain blocks, and all the conventional op-amp circuits that can now be easily implemented in single-supply systems.
Applications
- Sensor amplifiers
- DC gain blocks
- General-purpose op-amp circuits
Key features
- Internal frequency compensation, unity-gain stable
- High DC voltage gain: 100dB
- Wide supply voltage range (Vcc = 3V ~ 30V)
- Input common-mode voltage range includes ground
- Large output voltage swing: 0V to Vcc - 2.0V
- Low power consumption, suitable for battery-powered applications
