UTCDatasheet (PDF)

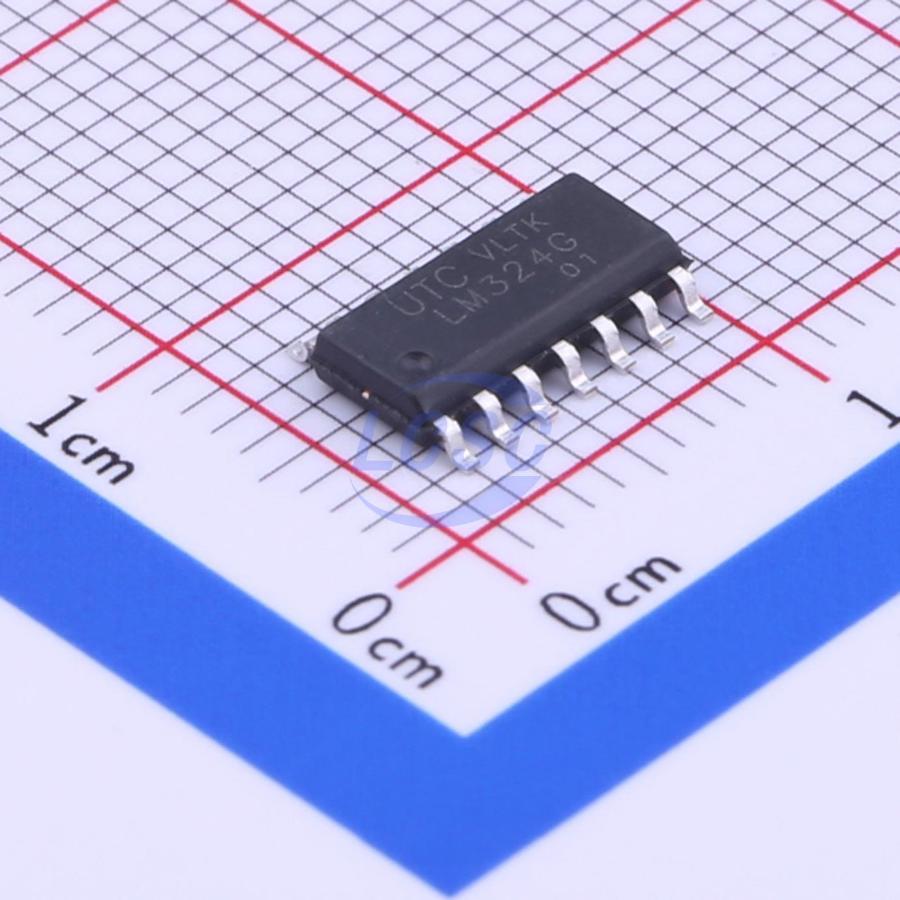

LM324G-S14-R
40mA 4 5mV 75dB 250nA 700uA SOIC-14 Instrumentation, Op Amps, Buffer Amps
SOIC-14RoHSActive
Quad Operational Amplifiers
- Manufacturer
- UTC
- Manufacturer part #
- LM324G-S14-R
- Store part #
- C71099
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,355 in stock
#C71099
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.48 | ₹82.40 |
| 50+ | ₹13.04 | ₹652.00 |
| 150+ | ₹11.32 | ₹1,698.00 |
| 500+ | ₹10.04 | ₹5,020.00 |
| 2,500+ | ₹8.65 | ₹21,625.00 |
| 5,000+ | ₹8.12 | ₹40,600.00 |
5 × ₹16.48
₹82.40
excl. GST
₹97.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM324G-S14-R
₹82.40 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5mV
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- -20℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 250nA
- Quiescent Current
- 700uA
- Features
- Built-in compensation
- Single Supply
- 3V~40V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.348 g
Overview
The UTC LM324 consists of four independent, high gain internally frequency compensated operational amplifiers which are designed specifically to operated from a single power supply over a wide voltage range. Operation from split power supplies is also possible. Application areas include transducer amplifier, DC gain blocks and all the conventional OP amp circuits which now can be easily implemented in single power supply system.
Key features
- Internally frequency compensated for unity gain.
- Large DC voltage gain: 100dB.
- Wide operating supply range (Vcc = 3V ~ 40V).
- Input common-mode voltage includes ground.
- Large output voltage swing: From 0V to Vcc - 1.5V.
- Power drain suitable for battery operation.
