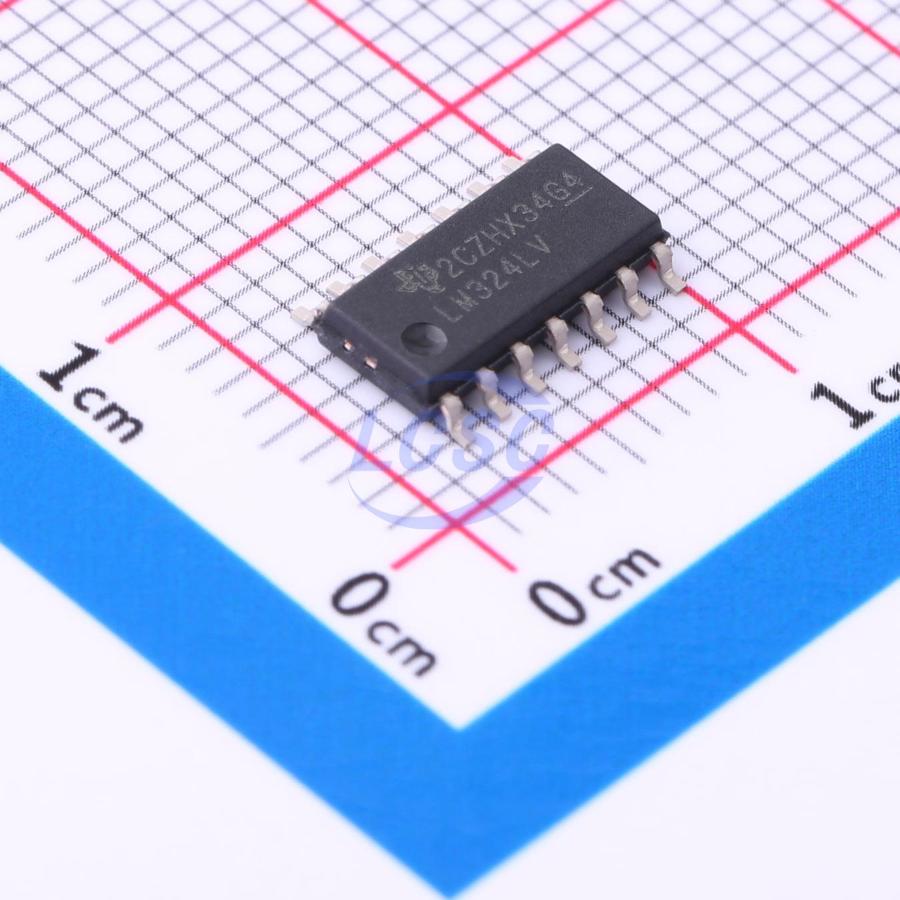

LM324LVIDR

Standard (General Purpose) Amplifier 4 Circuit SOIC-14

SOIC-14ROHS3 CompliantActive

Industry-standard low-voltage operational amplifier

Manufacturer: TI
Manufacturer part #: LM324LVIDR
Store part #: C2057519
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,600 in stock

#C2057519

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹34.90	₹174.50
50+	₹28.47	₹1,423.50
150+	₹25.72	₹3,858.00
500+	₹22.28	₹11,140.00
2,500+	₹20.74	₹51,850.00
5,000+	₹19.83	₹99,150.00

Quantity (min 5, multiples of 5)

5 × ₹34.90

₹174.50

excl. GST

₹205.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM324LVIDR

₹174.50 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 1mV
Slew Rate: 1.5V/us
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 92dB
Ib - Input Bias Current: 15pA
Input Offset Voltage Drift(Vos TC): 4uV/℃
Quiescent Current: 90uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation;ESD protection
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: -2.75V~-1.35V;1.35V~2.75V
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.52 g

Overview

Industry-standard amplifiers suitable for cost-sensitive systems. The LM3xxLV series includes single-channel LM321LV, dual-channel LM358LV, and quad-channel LM324LV operational amplifiers. These devices are powered by a low voltage of 2.7V to 5.5V. In cost-sensitive low-voltage applications, these operational amplifiers can be used as replacements for LM321, LM358, and LM324. The LM3xxLV devices offer better performance than the LM3xx devices at low voltages and consume less power. These operational amplifiers have unity-gain stability and do not exhibit phase reversal under overdrive conditions. The ESD design provides the LM3xxLV series with an HBM specification of at least 2kV.

Applications

Radio equipment uninterruptible power supplies
Battery packs, chargers, and test equipment
Power modules
Environmental sensor signal conditioning
Field transmitters: temperature sensors
Oscilloscopes, digital multimeters, test equipment
Rack servers
HVAC: DC motor control low-side current sensing

Key features

Low input offset voltage: ±1mV
Common-mode voltage range includes ground
Unity-gain bandwidth: 1MHz
Low wideband noise: 40nV/√Hz
Low quiescent current: 90μA/channel
Unity-gain stable
Operates from 2.7V to 5.5V supply voltage range
Available in single, dual, and quad versions
Robust ESD rating: 2kV HBM
Operating temperature range: –40°C to 125°C
